Home > Products > 4hp air cooled single cylinder spline keyway thread shaft diesel engine

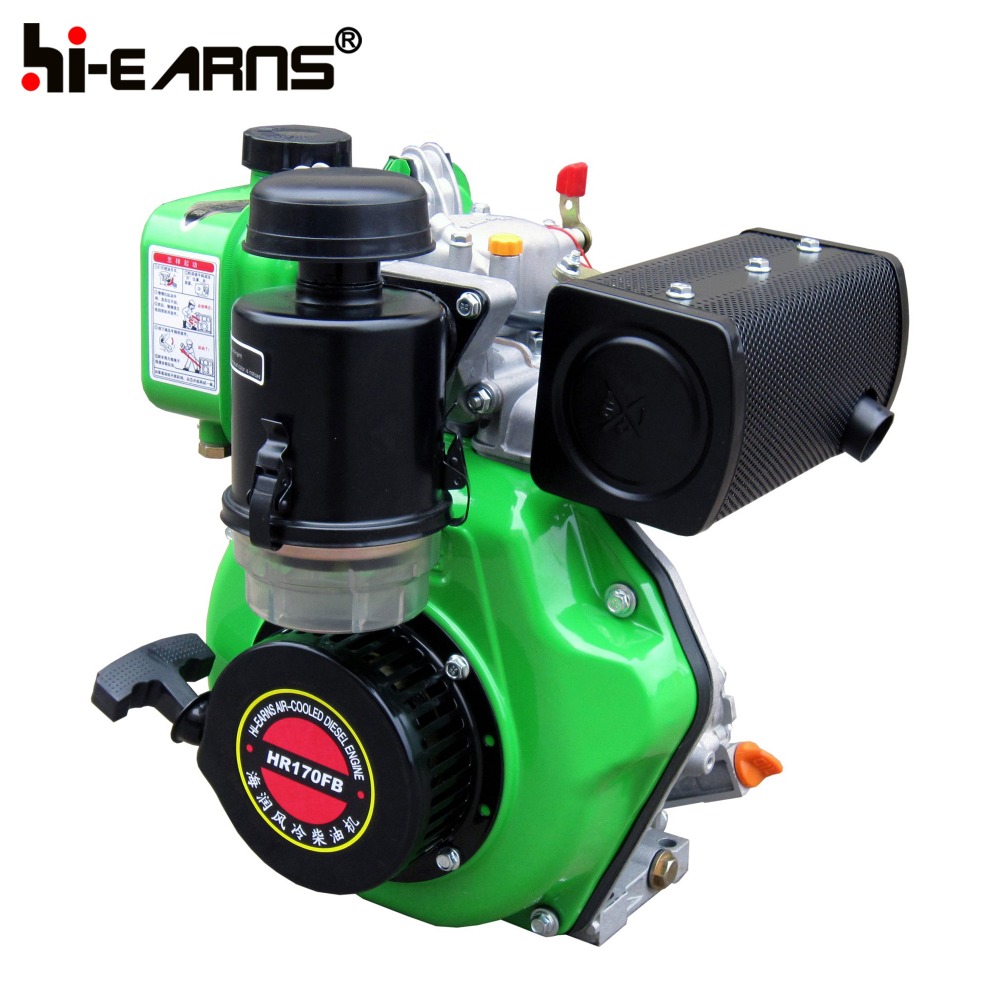

4hp air cooled single cylinder spline keyway thread shaft diesel engine

Click on the image to view the original image

Product：	views：44hp air cooled single cylinder spline keyway thread shaft diesel engine
Branch：	Hi-earns
Size：	42X39X47 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-12-03 18:35

Product Details

Overview

Quick Details

Applicable Industries:: Hotels, Manufacturing Plant, Farms, Restaurant, Home Use, Retail, Construction works , Energy & Mining

Condition:: New

Stroke:: 4 Stroke

Cylinder:: Single Cylinder

Cold Style:: Air-cooled

Start:: Recoil or electric

Place of Origin:: Jiangsu, China

Brand Name:: Hi-earns

Dimension(L*W*H):: 420X390X470mm

Weight:: 25kg

Certification:: CE/GS/ISO9001

Warranty:: One year, One year

After-sales Service Provided:: Engineers available to service machinery overseas

Color:: White/Green/Red/Yellow/Black

Air filter:: Ordinary type/oil bath type

Engine type:: Air-cooled 4-stroke

Displacement:: 227cc

Starting system:: Recoil Start

Product name:: 170FB diesel engine

Fuel tank:: 2.5L

Fuel pump:: Nanjing fuel pump

Fuel nozzle:: Nanjing fule nozzle

Packaging & Delivery

Selling Units:: Single item

Single package size:: 42X39X47 cm

Single gross weight:: 25.0 kg

Package Type:: Carton with plastic film

Picture Example:

Lead Time:

Quantity(Piece)	1 - 10	11 - 50	>50
Est. Time(days)	7	15	To be negotiated

Related Products

Air-cooled single cylinder diesel engine 170FB

Model	HR170FB
Bore×stroke(mm)	70×55
Displacement(cc)	227
Engine speed(rpm)	3000	3600
Max.output(kw)	3.5	4.0
Continuous output(kw )	3.2	3.6
Power output	Crankshaft or camshaft(Camshaft PTO rpm is 1/2)
Starting system	Recoil or electric
Fuel tank capacity(L)	2.5
Rube oil capacity(L)	0.75
Dimension(mm)	332×348×417
Net weight(kg)	25/31

Product Description

Field of Application

♦ Our products are widely used in various fields, such as generators,water pumps, rotavator,concrete cutter,plate compactor,high pressure washer

Care & Maintenance
