Home > Products > two cylinders air-cooled 10 kva diesel magnet generator

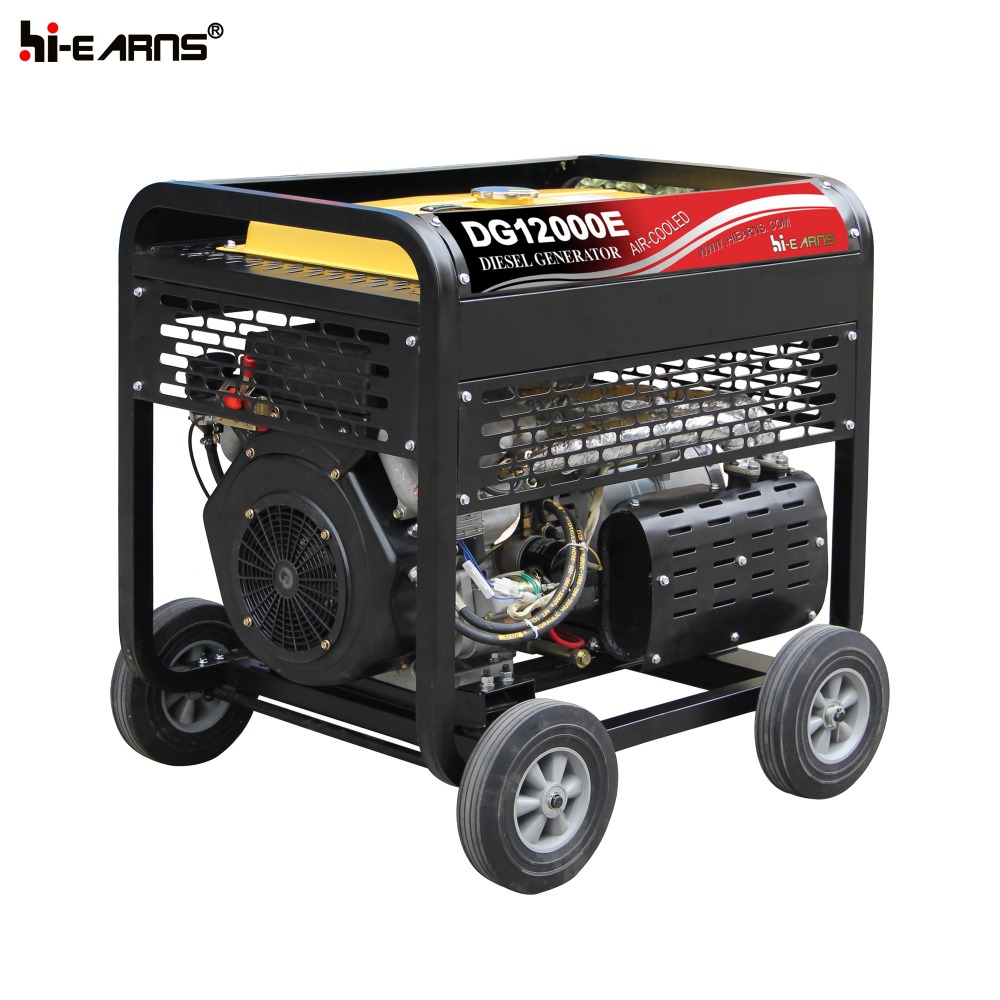

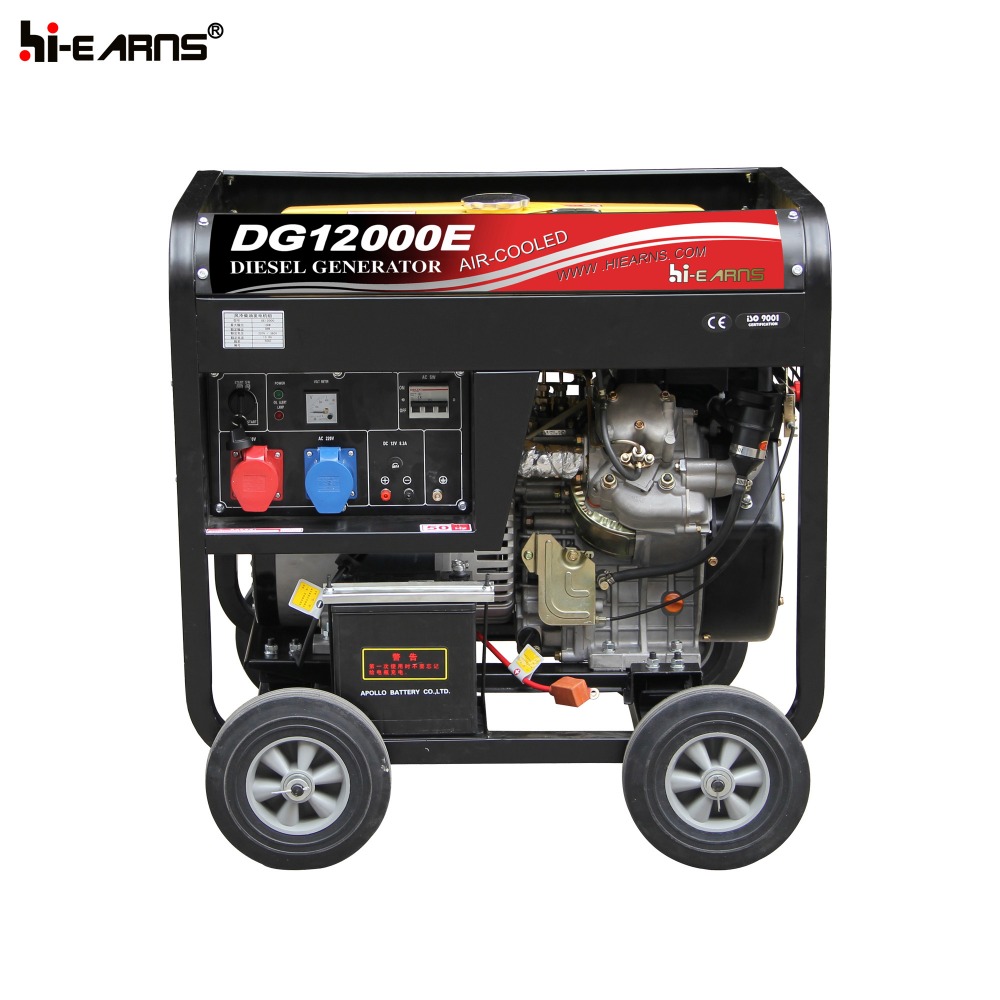

two cylinders air-cooled 10 kva diesel magnet generator
Click on the image to view the original image
Product： views：3two cylinders air-cooled 10 kva diesel magnet generator
Branch： Hi-earns or OEM
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-12-03 18:35
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Hi-earns or OEM
Model Number:
DG12000E
Rated Voltage:
220/230/380/400V
Rated Current:
38A
Speed:
3000rpm/3600rpm
Frequency:
50/60HZ
Generator model:
10 kva diesel magnet generator
Engine model:
two cylinder 2V86F diesel engine
Engine power:
16HP
Start system:
Electric start
Control system:
Common panel control
Supply Ability
Supply Ability:
200 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
carton packing with wooden pallet
Port
shanghai
Lead Time:
Quantity(Pieces)1 - 12 - 10 >10
Est. Time(days)720To be negotiated
Video Description
Related Products

two cylinders air-cooled 10 kva diesel magnet generator

DG12000E model: With 15 HP two cylinder 2V86F diesel engine and 100% copper alternator ensure a 8.5KW rated output, and 9KW max. output!

GENERATORModelDG12000E
Frequency(HZ)5060
Max. output(kw)99.5
Rated output(kw)8.59
Rated. AC voltage(v)120, 220, 230, 240
Power factor(cosΦ )cosΦ =1
DC output (v)12V/8.3A
PhaseSingle phase or Three phase
Alternator typeself-excited
Starting systemElectric
Operating noise level(at 7m)86
Fuel tank capacity(L)30
Continues work(hr)9.48.4
ENGINEModel2V86
Engine typeTwo-cylinder, vertical, 4-stroke air-cooled diesel engine
Bore× stroke(mm)86× 72
Fuel0# or -10# light diesel fuel
Lubrication oil volume(L)1.7
Combustion systemDirect lnjection
STANDARD FEATURESVoltmeteryes
AC Output Socket2
AC circuit breakeryes
Oil warning lightyes
Oil alertyes
OPTIONAL FEATURESDC circuit breakeroptional
Calculagraphoptional
Big Wheeloptional
Three phase voltageoptional
Current meteroptional
ATSoptional
Remote controloptional
Weldingno
DIMENSIONSDimension(L× W× H)(mm)890× 680× 890
Net  weight(kg)190
20FT40
Product Description

Field of Application

♦ Our products are widely used in various fields, such as construction site,supermarket,hotel,server room,hospital,animal husbandry,fishery,camping
