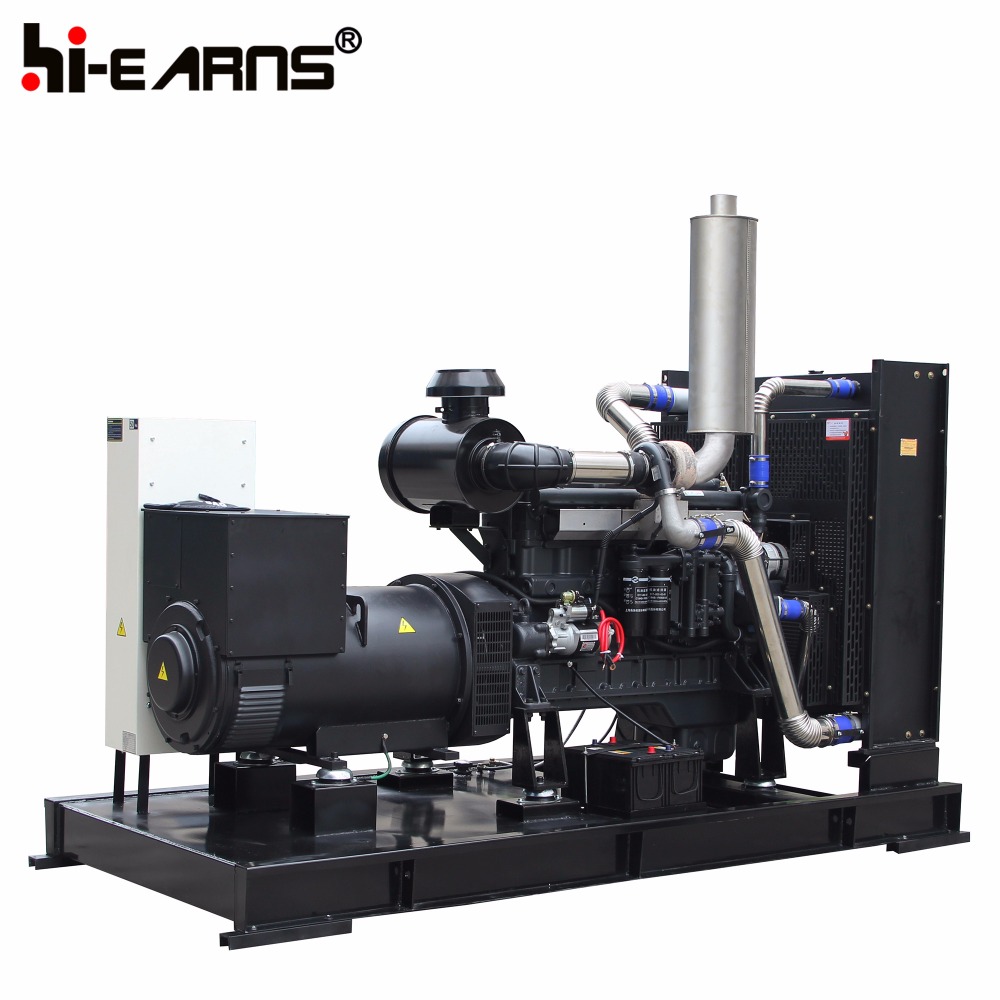

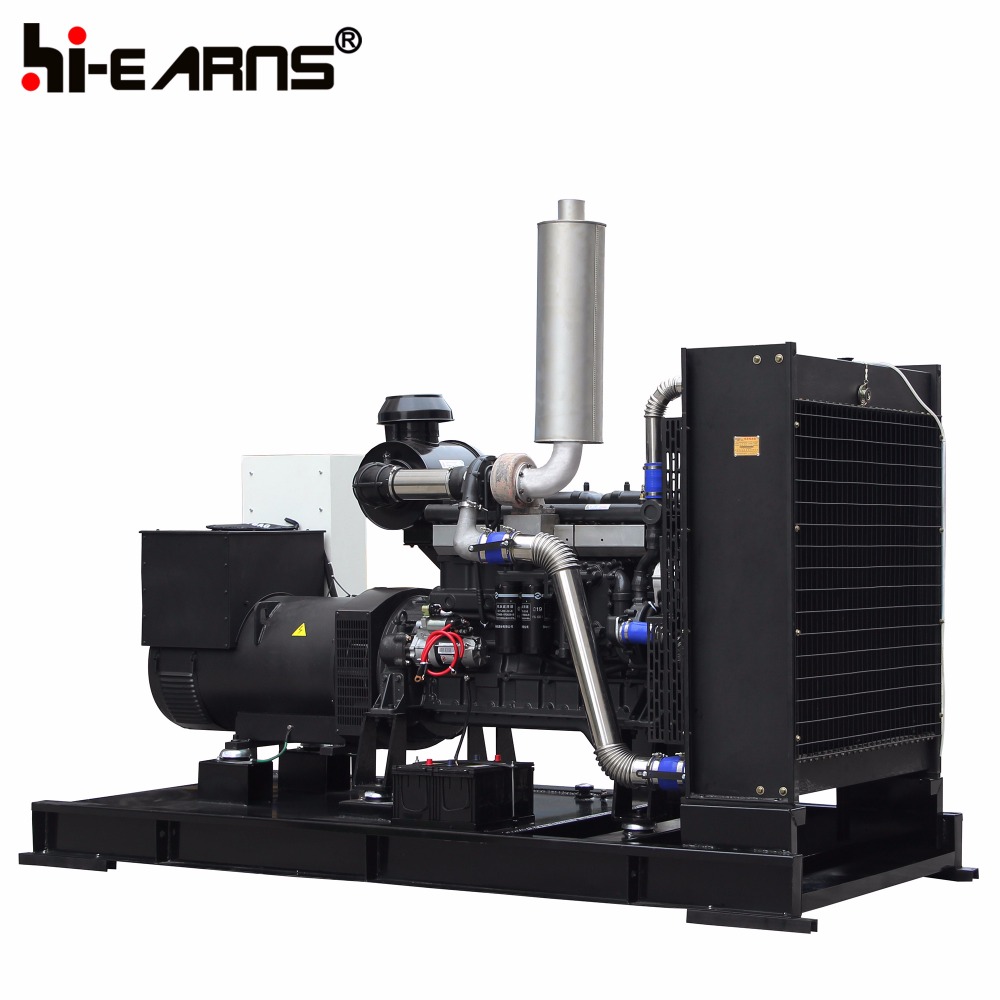

open frame price of 1000kva diesel generator
Click on the image to view the original image
Product： views：3open frame price of 1000kva diesel generator
Branch： Hi-earns or OEM
Type： Open Frame
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-12-03 18:35
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Hi-earns or OEM
Model Number:
GF1-1250KVA
Rated Power:
1100KVA
Output Type:
AC Three Phase
Rated Voltage:
220/380V
Rated Current:
1899A
Speed:
15000/18000rpm
Frequency:
50/60HZ
engine:
Cummins
alternator:
Stamford / Leroy somer / Engga / Marathon / Kaijieli / Dingol
Product Name:
open frame shangchai price of 1000kva diesel generator
Alternator:
100% copper
Engine:
Chinese Engine
Certificate:
CE/ISO9001
Warranty:
1 Year
Type:
Open Frame
Controller:
Smartgen
Control panel:
LCD Digital Display
Supply Ability
Supply Ability:
1 Set/Sets per Month
Packaging & Delivery
Packaging Details
UNPACKED
Port
FOB SHANGHAI or CIF destination port
Lead Time:
60 days after confirmed order

open frame shangchai price of 1000kva diesel generator



MODEL GF- 1250KVA
Standby Power(50HZ )1000KW / 1250KVA
Prime Power(50HZ )NA
ENGINE DATA
Manufacturer/Model:CCEC Cummins KTA38-G9,4-cycle
Air Intake System:Turbo,Water/Air Cooling
Fuel System:PT type fuel pump,EFC
Cylinder Arrangement:12 in "V"
Displacement:37.8L
Bore and Stroke: 159×159(mm)
Compression Ratio:13.9:1
Rated RPM:1500rpm
Max.Standby Power at Rated RPM:1089KW / 1481HP
Governor Type: Electronic
Exhaust System
Exhaust Gas Flow:3539L/S
Exhaust Temperature:529°C
Max Back Pressure:10kPa
Air Intake System
Max Intake Restriction: 6.23kPa
Buring Capacity:1309L/S
Intake Flow:30245L/S
Fuel System
100%(Prime Power) Load:256 L/h
Oil System
Total Oil Capacity:135L
Oil Consumption:≤4g/kwh
Engine Oil Tank Capacity:114L
Oil Pressure at Rated RPM:310-448kPa
Cooling System
Total Coolant Capacity:336L
Thermostat:82-93°C
Max Water Temperature:104°C
Open Type Soundproof Type
Overall Size:5000(mm)×2200(mm)×2400(mm)Overall Size:6058(mm)×2438(mm)×2591(mm)
Weight:8000kgWeight:13000kg





IQC

♦ Strict spare parts IQC system, to ensure every spare parts are qualified.

♦ Technical support in every step to eliminate all detailed questions.
