Click on the image to view the original image
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- DP30HE
- Structure:
- Piston Pump
- Usage:
- Water
- Application:
- car wash,fire control,irrigation
- Power:
- Hydraulic
- Fuel:
- Diesel
- Pressure:
- High Pressure
- Color:
- Yellow/Green/White/Green/Red/Orange/Blue
- Air filter:
- Common or Oil bath type
- Noise:
- Low level
- Fuel tank:
- Best quality
- Fuel pump:
- Best quality
- Displacement:
- 498cc
- Engine speed:
- 3600rpm
- Starting system:
- Recoil or electric
- Fuel tank capacity:
- 5.5L
- Shaft type:
- Keyway shaft
- Theory:
- Centrifugal Pump
- Standard or Nonstandard:
- Standard
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 62X47.5X58.5 cm
- Single gross weight:
- 49.0 kg
- Package Type:
- Packaging details:Carton with plastic film
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 5 6 - 10 >10 Est. Time(days) 10 20 To be negotiated

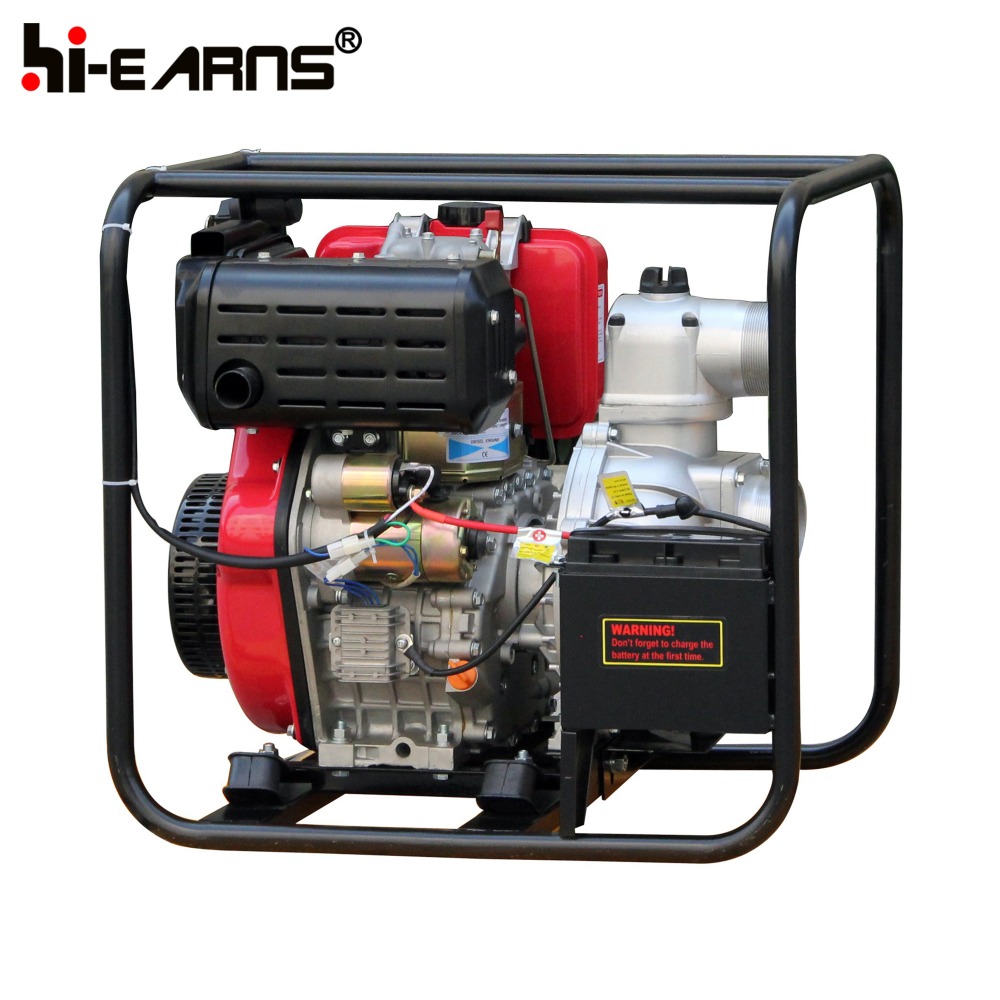

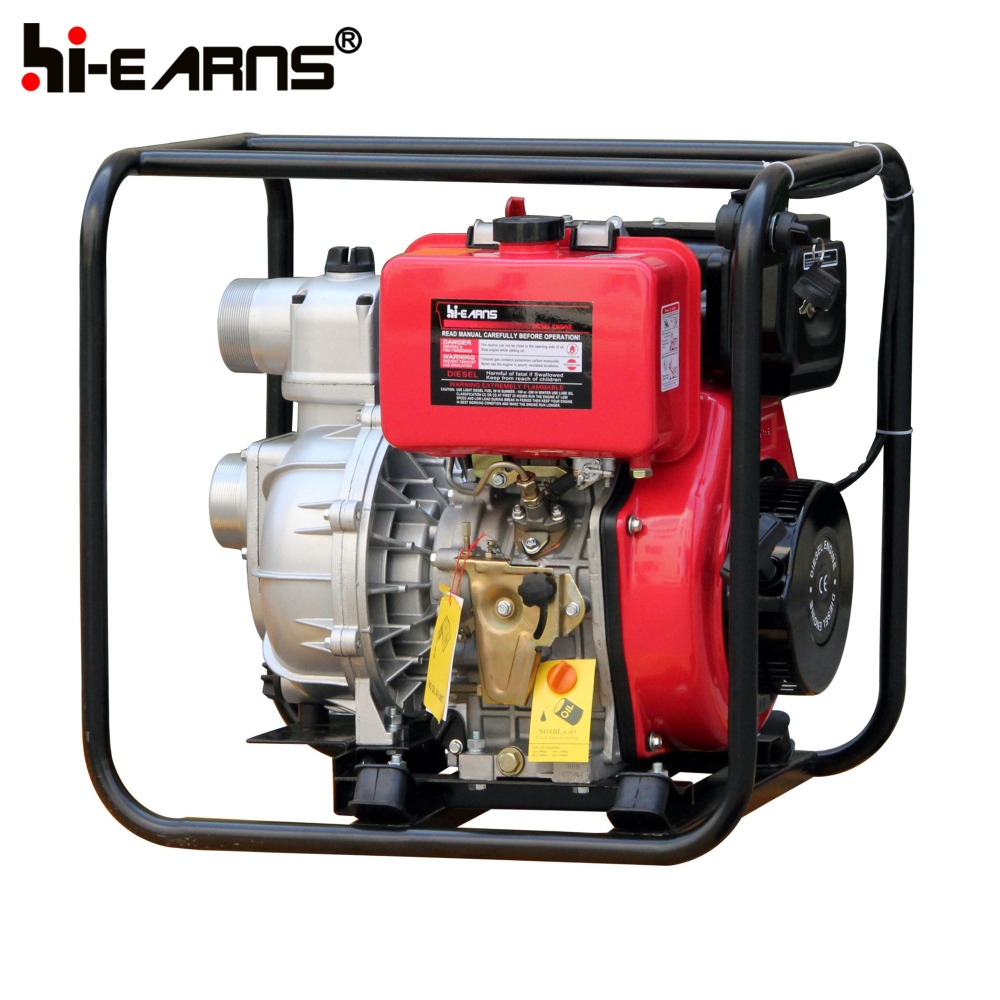

DP30HE 3 inch diesel high pressure water pump
| WATER PUMP | Model | DP30HE | |
| Suction,discharge port diameter[mm(in)] | 80(3") | ||
| Cont.head(m) | 70 | ||
| Self-priming time(s/4m) | 30 | ||
| Max suction head(m) | 8 | ||
| Cont.capacity(m³/hr) | 38 | ||
| ENGINE | Engine model | HR192FD | |
| Speed(rpm) | 3600 | ||
| Type | Single-cylinder,vertical,4-stroke air-cooled diesel engine | ||
Displacement(cc) | 498 | ||
Bore*stroke(mm) | 92 × 75 | ||
Starting system | Electric | ||
| Fuel tank capacity(L) | 5.5 | ||
| STANDARD FEATURES | Oil alert | yes | |
| Connector of infall,Connecto of outfall | yes | ||
| Filter | yes | ||
| Seal ring | yes | ||
| Hoop | yes | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 620×475×585 | |
| Net weight(kg) | 49 | ||
♦ Economic and practical products from hi-earns,reliable performance.
♦ Choose hi-earns,choose a rest assured.
♦ Advanced production lines and test rooms.
♦ Complete system of IQC.
♦ Perfect QCP.
♦ Strict spare parts IQC system,to ensure every spare parts are qualified.
♦ Technical support in every step to eliminate all detailed questions.
♦ Modern workshops have advanced production lines and professional knowledge of assembly.
♦ Flow card to record each details carefully.
♦ Test engine at least twice before ex-factory.
♦ Strong packaging to ensure safty during transportation.
♦ 7 layer corrugated carton or wooden box packagine for products.
♦ We are manufactory covering diesel and gasoline engine,diesel generator from 2-1000KW,water pump,trash pump,construction machinery like vibrator,rammer,compactor,concrete cutter,power trowel,farm machinery,high pressure washer and so on.
♦ Modern office building,we warmly welcome your visiting.
♦ We attend exhibitions domestic and overseas.Rich activities to improve work enthusiasm.
♦ ISO,CE,GS,Rohs certificates.We have been making good progress.
