Home > Products > 250KVA 200KW open portable water cooled diesel generator price

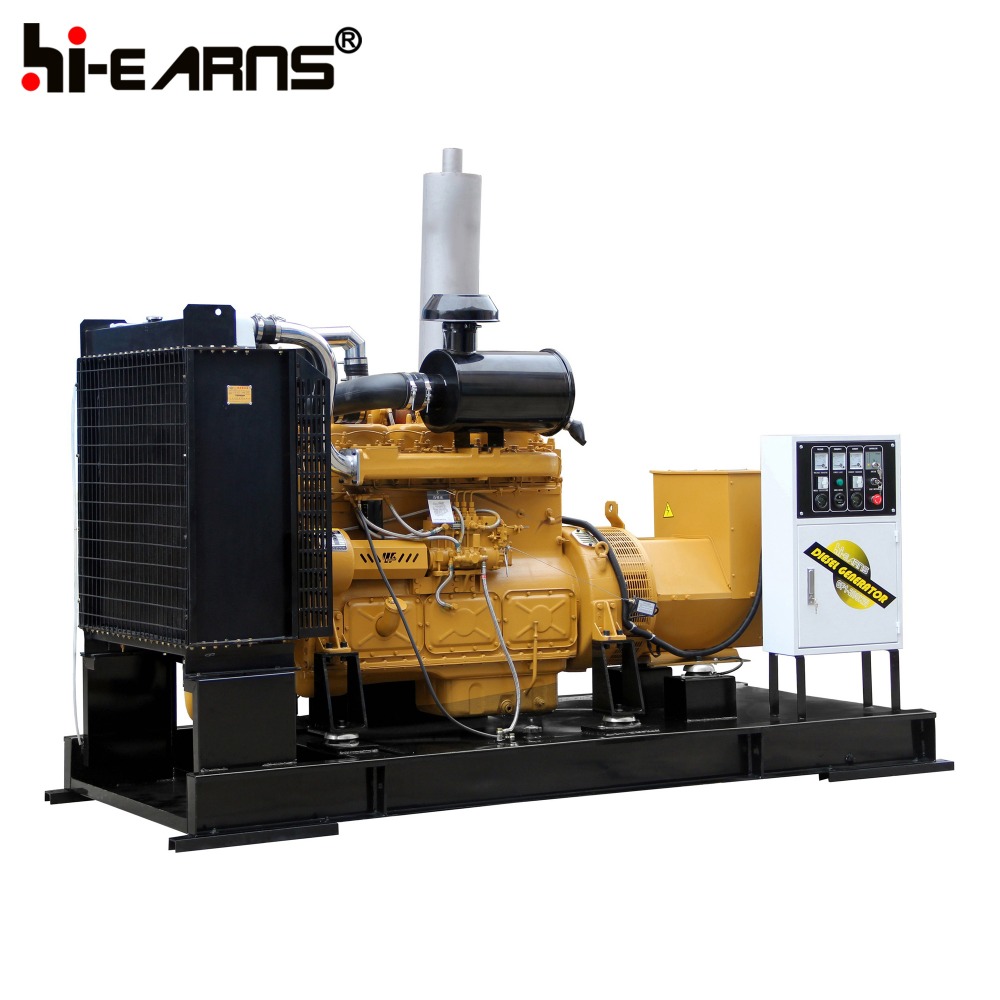

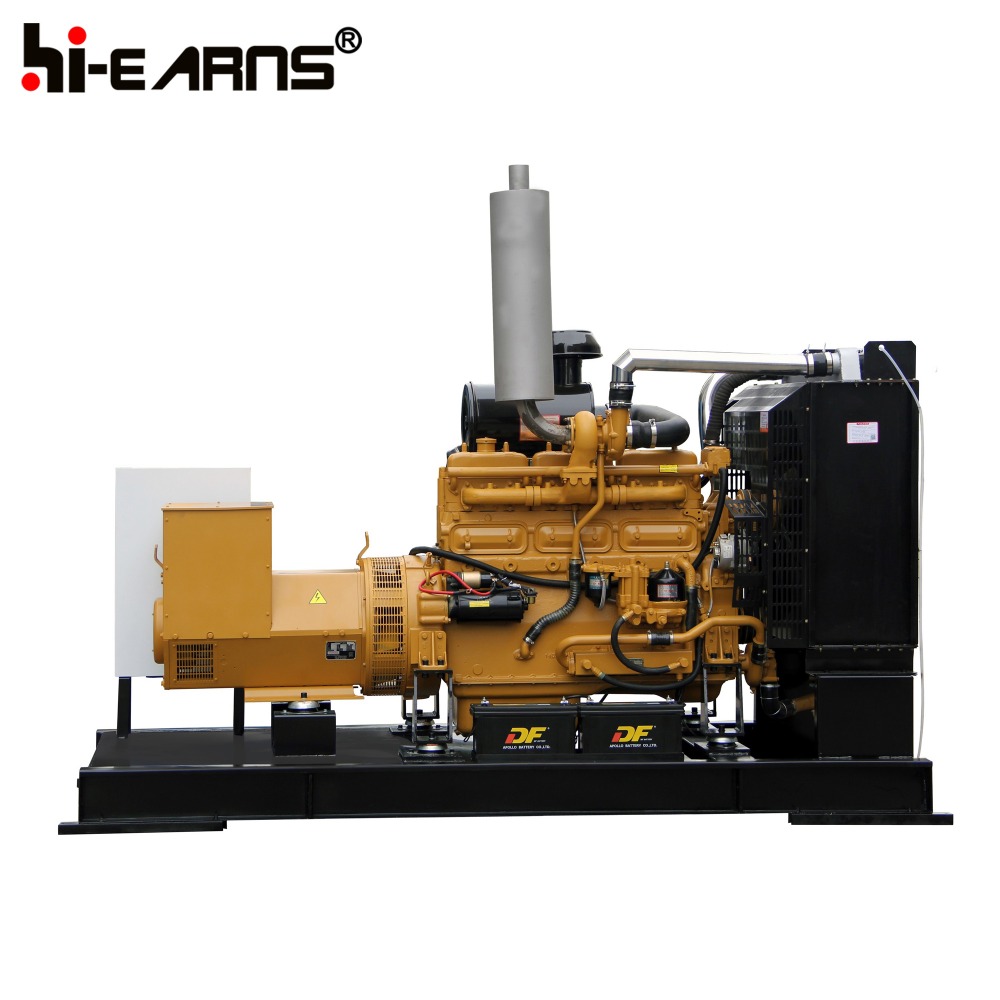

250KVA 200KW open portable water cooled diesel generator price

Click on the image to view the original image

Product：	views：3250KVA 200KW open portable water cooled diesel generator price
Branch：	Hi-earns
Type：	open and electric
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-12-03 18:36

Product Details

Overview

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: Hi-earns

Model Number:: GF1-250KVA

Rated Power:: 200KW/250KVA

Output Type:: AC Three Phase

Rated Voltage:: 220/380, 230/400V

Rated Current:: 380A

Speed:: 1500rpm/1800rpm

Frequency:: 50HZ/60HZ

Color:: Yellow/Green/White/Green/Red/Orange/Blue

Type:: open and electric

Panel:: Digital panel or ATS

Design:: New

Noise:: 80-85dB

Power factor:: 0.8

Phase:: Three phase

Engine type:: SC9D340D2

Certificate:: CE/ISO9001

Warranty:: One Year

Supply Ability

Supply Ability:: 200 Piece/Pieces per Month

Packaging & Delivery

Packaging Details: 1.PACKAGE METHOD:
Wooden with plastic films or bubble wrap with plastic film and wooden plate.
2.DELIVERY TIME:25-35days.
3.WARRANTY:One year.

Port: FOB SHANGHAI

Lead Time:: 25-35days

250KVA 200KW open portable water cooled diesel generator price

Model	GF1-250KVA
Standby power(50HZ)	212KW / 265KVA
Prime power(50HZ)	200KW / 250KVA
Voltage(V)	220/380,230/400,240/415V
Phase	3
P.F(COSφ)	0.8
Standby Amps(A)	380
Engine type	Direct injection,Direct line,Four stroke,Water-cooled
Rated RPM(r/min)	1500rpm
Cooling system	Forced water-cooled
Fuel consumption(g/kw.h)	≤ 210
Commpression Ratio	14.8:1
Bore x Stroke(mm)	135 x 155
Displacement(L)	13.3
Start Method	14.8.0:1
Timing Method	Electrical Governor
Alternator Data
Power Factor	0.8 Lag
Insulation Class	H
Lubricating System	Pressure,Split,Complex
Exhaust Air Temperature	≤ 630
Altitude	≤ 1000m
Environment Temperature	40
Connecting Type	3 Phase and 4 Wires, "Y" type connecting
Ignite sequence	1-3-4-2
Intake Type	pressurize
Rated Speed Regulation %	≤±1%
Phase	3
Overall Size	2800x1300x1440(mm)
Weight	1870kg

Advantages

♦ Economic and practical products from hi-earns,reliable performance.

♦ Choose hi-earns,choose a rest assured.

♦ Advanced production lines and test rooms.

♦ Complete system of IQC.

♦ Perfect QCP.

Packaging & Shipping

♦ Strong packaging to ensure safty during transportation.

♦ 7 layer corrugated carton or plywood box packagine for products.

Our Services

Warranty

Guarantee for one year or 800 hours whichever reach first from ex-factory date. If the quality problem arise during the warranty period, and verified the problem is caused by our genset body instead of external or natural reasons(refer to all kinds of natural disaster, shipping, loading, unloading, wrong operation etc), we will supply the relevant spare parts free of charge for maintenance; After expiration, Hi-earns provides cost spare parts maintenance of products.

Service

1.Our quality department will provide the best solution that make you satisfied efficiently and accurately.

2.If the broken spare parts are in the period under warranty, we will offer this spare parts for free under the condition of this spare parts are not intentionally damaged.
