- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns/OEM
- Model Number:
- DG6500SE
- Rated Voltage:
- 220,230,380,240,380,400,415
- Rated Current:
- 8.3A
- Speed:
- 3000rpm/3600rpm
- Frequency:
- 50/60HZ
- Engine power:
- 10HP diesel engine
- Engine model:
- HR186FA
- engine type:
- 4 storke air-cooled diesel engine
- Alternator type:
- 100% copper wire alternator
- Generator model:
- Silent diesel generator
- Rated output:
- 5KVA diesel generator
- Max. output:
- 5.5KVA diesel generator
- Noise level:
- 68-72DB
- Start system:
- Electric start with 30AH battery
- Fuel tank:
- 16L diesel generator
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 0.95X0.56X0.77 cm
- Single gross weight:
- 155.0 kg
- Package Type:
- Carton packing with plywood pallet
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Set) 1 - 5 6 - 144 >144 Est. Time(days) 15 25 To be negotiated
Home use 2-10KVA air-cooled diesel generators silent 5KVA diesel generator
*10HP diesel engine HR186FA~
*100% copper wire alternator~
*Silent canopy, portable model~
*5KVA rated output~
*Four wheels ensure easy moving~
*Electric start with 30AH battery~
Simon Yang (Just press Chat Now!)
♦ Mobile/WhatsApp: 008613775105526
♦ E-mail: server-wm1(at)hiearns.com
♦ SKYPE: ysdsimon
♦ TradeManager: cn200048131
♦ WeChat: SimonMrYang
♦ QQ: 568238531
HOT SALE 2-10KVA air-cooled 5KVA portable silent diesel generator

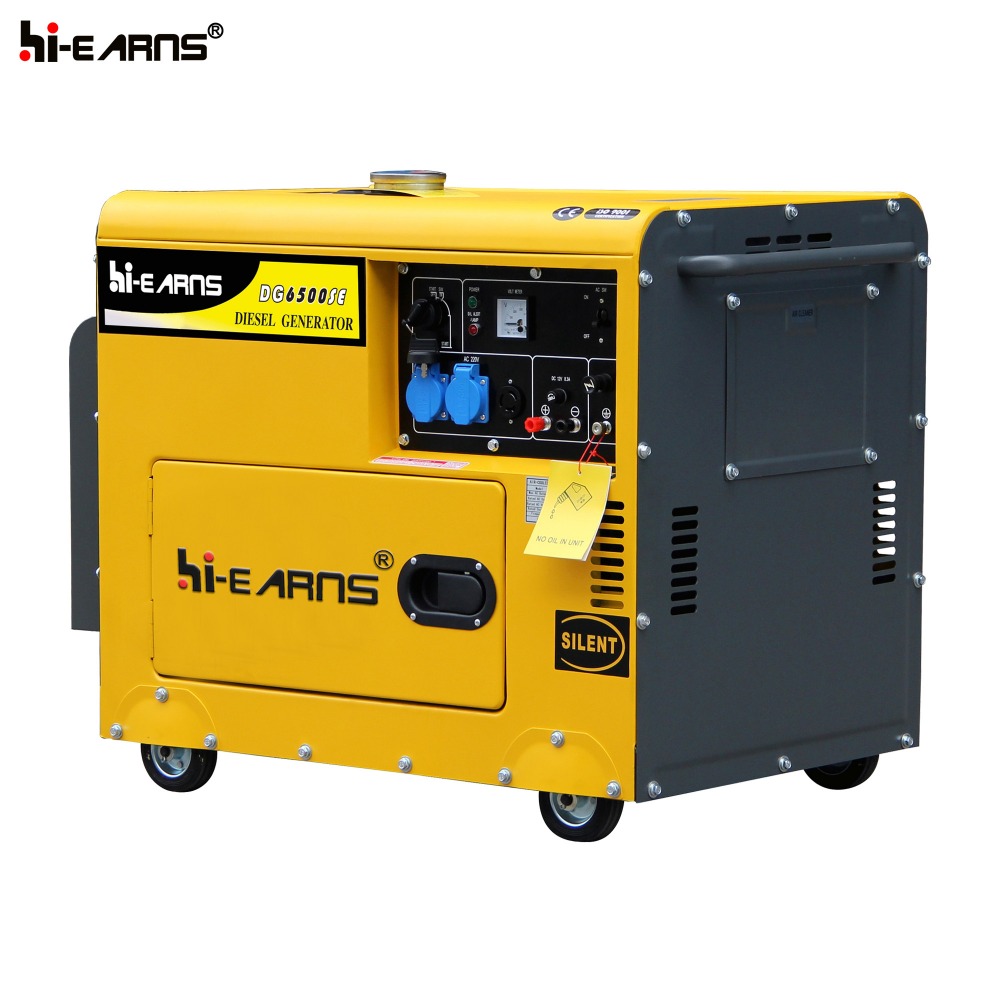

♦DG6500SE model: With 10 HP HR186FA air cooled diesel engine and 100% copper wire KETE alternator ensure a 4.6KW rated output, and 5KW max. output! diesel generator
♦Electric start with 30AH battery; Silent canopy with 4 wheels ensure easy moving; Best designed muffler; portable model for home use! diesel generator
♦Also have open frame model DG6000E, the noise maybe little bigger, and the price can have a discount!
♦For air-cooled models we can produce 2 to 10KW, also water cooled models we can do 8 to 500KW, so just inform me some details about what you need, I can give you best quotation asap. diesel generator
geanerator
| GENERATOR | Model | DG6500SE | |
| Frequency(HZ) | 50 | 60 | |
| Max. output(kw) | 5 | 5.5 | |
| Rated output(kw) | 4.6 | 5 | |
| Rated. AC voltage(v) | 120, 220, 230, 240, 380, 400 | ||
| Power factor(cosΦ ) | cosΦ =1 | ||
| DC output (v) | 12V/8.3A | ||
| Phase | Single phase or Three phase | ||
| Alternator type | self-excited | ||
| Starting system | Electric | ||
| Operating noise level(at 7m) | 68-72DB | ||
| Fuel tank capacity(L) | 16 | ||
| Continues work(hr) | 9.4 | 8.4 | |
| ENGINE | Model | HR186FA | |
| Engine type | Single cylinder, vertical, 4-stroke air-cooled diesel engine | ||
| Bore× stroke(mm) | 86× 72 | ||
| Fuel | 0# or -10# light diesel fuel | ||
| Lubrication oil volume(L) | 1.65 | ||
| Combustion system | Direct lnjection | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
| OPTIONAL FEATURES | DC circuit breaker | optional | |
| Calculagraph | optional | ||
| Big Wheel | optional | ||
| Three phase voltage | optional | ||
| Current meter | optional | ||
| ATS | optional | ||
| Remote control | optional | ||
| Welding | no | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 950× 560× 710 | |
| Net weight(kg) | 147 | ||
| 20FT | 72 | ||
