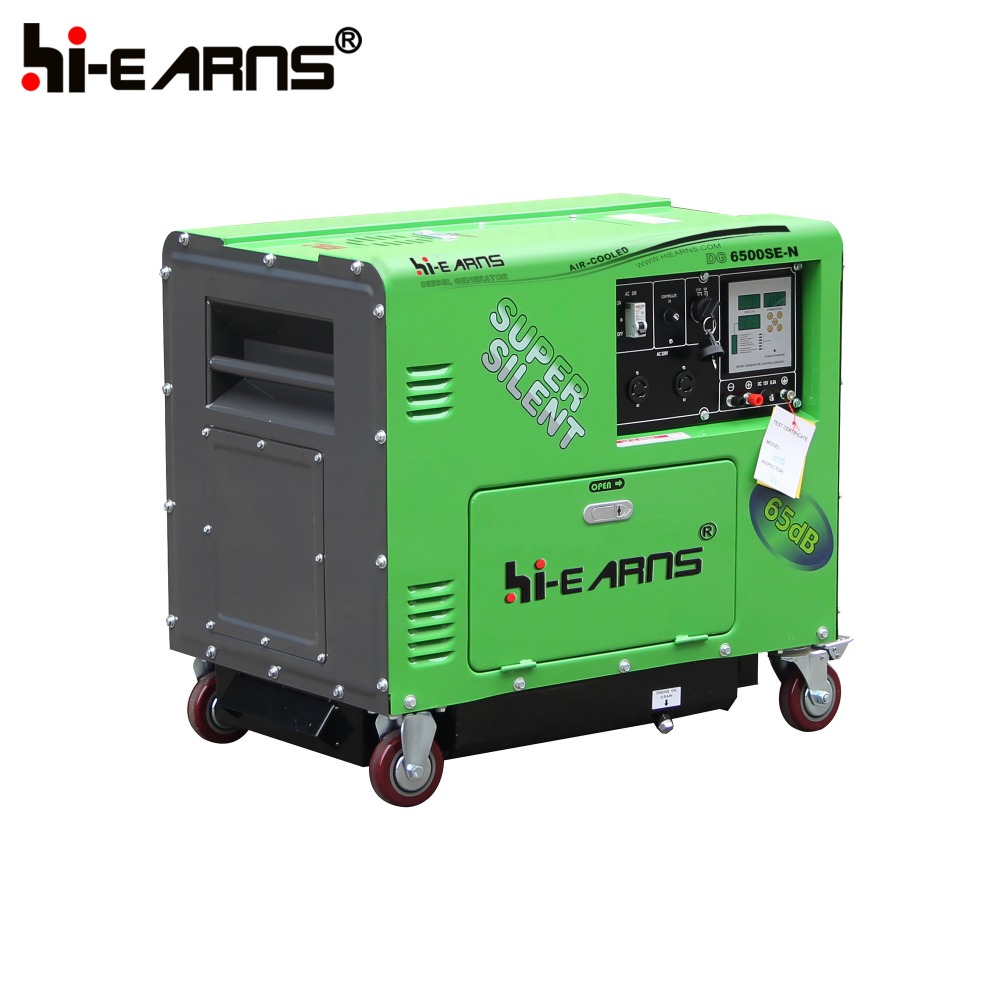

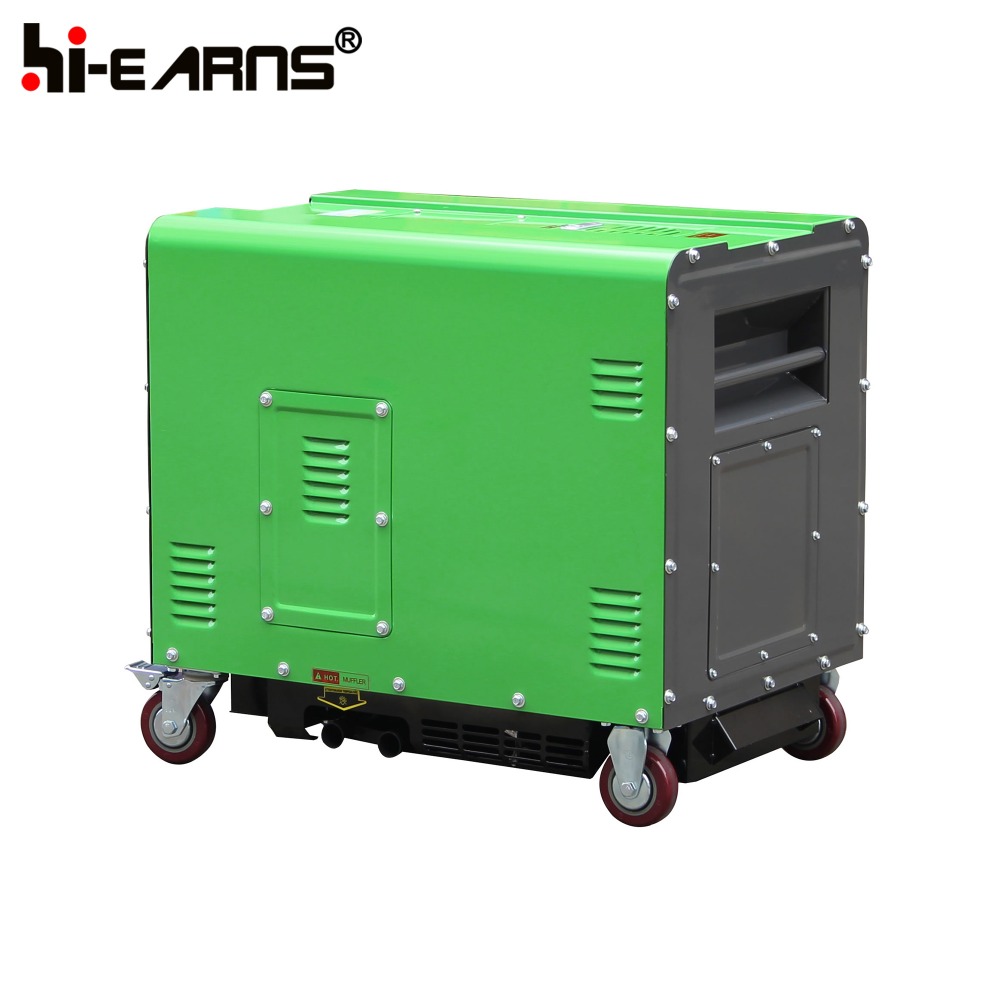

PATENT PRODUCT: air-cooled 5kva super silent diesel generator
| GENERATOR | Model | DG6500SE-N | |
| Frequency(HZ) | 50 | 60 | |
| Max. output(kw) | 4.6 | 5 | |
| Rated output(kw) | 4.2 | 4.6 | |
| Rated. AC voltage(v) | 120, 220, 230, 240 | ||
| Power factor(cosΦ ) | cosΦ =1 | ||
| DC output (v) | 12V/8.3A | ||
| Phase | Single phase | ||
| Alternator type | self-excited, 2-pole, single phase alternator | ||
| Starting system | Electric | ||
| Operating noise level(at 7m) | 65~68 | ||
| Fuel tank capacity(L) | 12.5 | ||
| Continues work(hr) | 9.3 | 8.5 | |
| ENGINE | Model | HR186FA | |
| Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
| Bore× stroke(mm) | 86×72 | ||
| Fuel | 0# or -10# light diesel fuel | ||
| Lubrication oil volume(L) | 1.65 | ||
| Combustion system | Direct lnjection | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
| OPTIONAL FEATURES | DC circuit breaker | optional | |
| Calculagraph | optional | ||
| Big Wheel | optional | ||
| Three phase voltage | optional | ||
| Current meter | optional | ||
| ATS | optional | ||
| Remote control | optional | ||
| Welding | No | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 820×560×780 | |
| Net weight(kg) | 160 | ||
| 20FT | 80 | ||
ADVANTAGES:
♦ Super silent 65-68dba at 7 meters,will bring the ultra silent feeling to you.
♦ The new dimensions are smaller than normal silent generator, so it can be load 80pcs in a 20ft container. This shift can save the freight for you greatly.
♦ We use brake wheel and universal wheel for these model. For safety and convenient using.
♦ Every side have maintenance hole used to replacement AVR,air filter, voltage regulator.Top maintenance hole easier to replacement cylinder valve and fuel nozzle.
♦ Fuel drain plug we direct connect to the bottom of generator,keep clean of inner side.
♦ We change the lock of the door for betterment using.
♦ New design canopy becomes more scientific. The new design structure brings quieter operation for the owner. A new AIR COURSE can dredge the hot temperature quickly outside in order to keep the generator more steady-going and long life using.
♦ Strict spare parts IQC system,to ensure every spare parts are qualified.
♦ Technical support in every step to eliminate all detailed questions.
♦ Modern workshops have advanced production lines and professional knowledge of assembly.
♦ Flow card to record each details carefully.
♦ Test engine at least twice before ex-factory.
♦ Strong packaging to ensure safty during transportation.
♦ 7 layer corrugated carton or wooden box packagine for products.
♦ We are manufactory covering diesel and gasoline engine,diesel generator from 2-1000KW,water pump,trash pump,construction machinery like vibrator,rammer,compactor,concrete cutter,power trowel,farm machinery,high pressure washer and so on.
♦ Modern office building,we warmly welcome your visiting.
♦ We attend exhibitions domestic and overseas.Rich activities to improve work enthusiasm.
♦ ISO,CE,GS,Rohs certificates.We have been making good progress.
