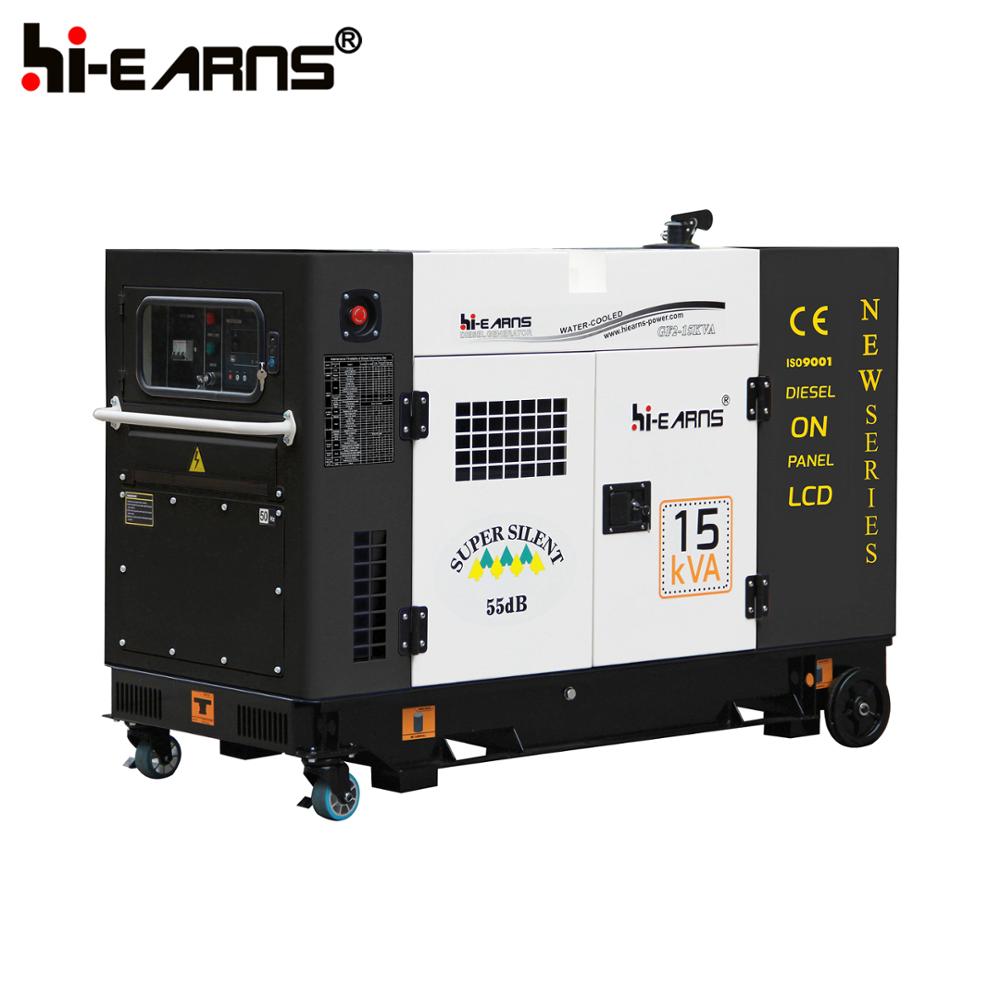

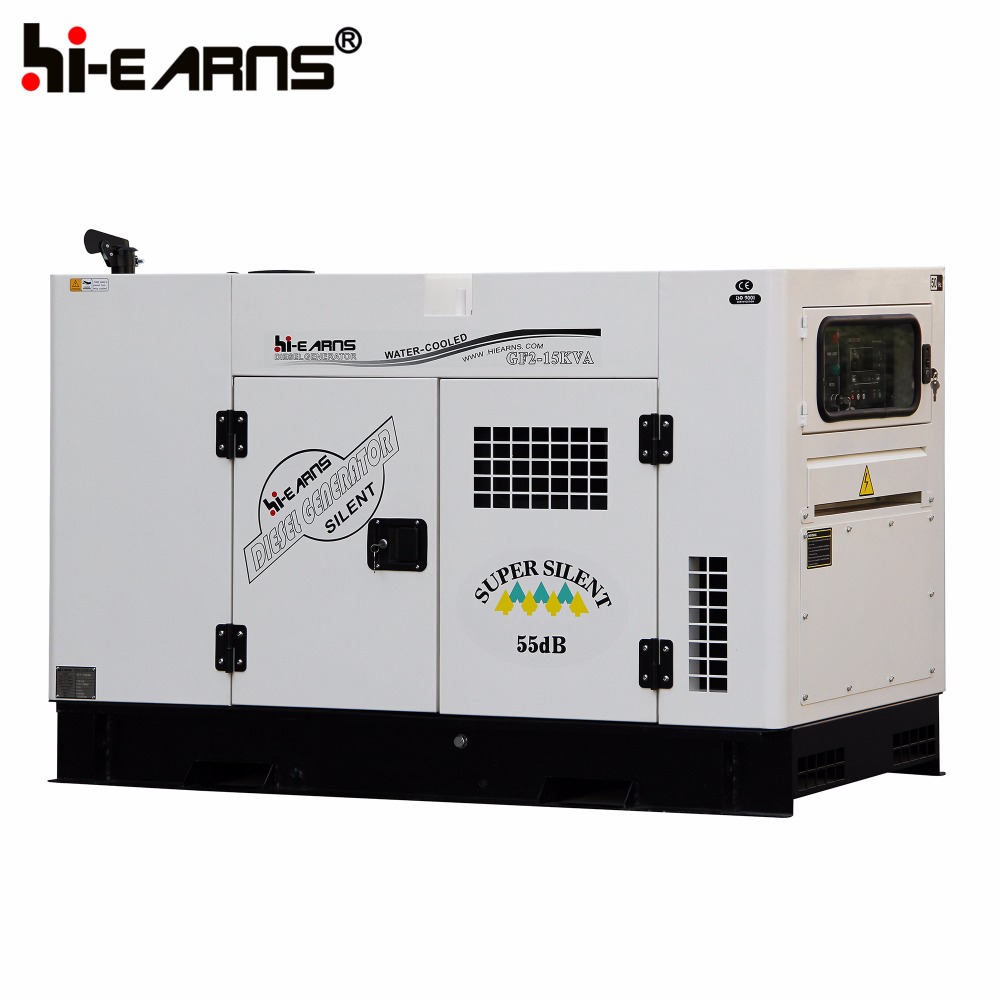

super silent diesel generator 10KW generator electric generator
♦ Canopy designed by ourselves, unique super silent generator, save cost for u, generator supplier
♦ We are factory, have low price spare parts for 10KW generator and timely technical support.
Model | |
Standby power (50HZ) | 13KW / 16KVA |
Prime power (50HZ) | 12KW / 15KVA |
Voltage (V) | 220/380V |
Phase | 3 |
Power factor (cosφ) | 0.8 |
Standby amps (A) | 25 |
Engine type | Quanchai Engine N485D, 4-stroke, water-cooled, direct line |
Rated RPM (r/min) | 1500rpm |
Cooling system | Forced water-cooled |
Fuel consumption (g/kw.h) | ≤ 245 |
Rated speed regulation | ≤ 5 |
Bore x stroke (mm) | 85 x 95 |
Displacement (L) | 2.156 |
Start Method | Electric start |
Add oil capacity (L) | 4L |
Alternator Data | |
Power factor | 0.8 Lag |
Insulation class | H |
Lubricating system | Pressure, split, complex |
Exciter type | Brushless, self-exciting |
Altitude | ≤ 1000m |
Environment temperature (°C) | 40 |
Connecting type | 3 phase and 4 wires, "Y" type connecting |
Protection grade | IP23 |
Intake type | Natually-Aspirated |
Rated speed regulation % | ≤±1% |
Phase | 3 |
Overall size (m) | 1.7 x 0.85 x 1.02(m) |
Weight (kg) | 658kg |
♦ We are manufactory covering diesel and gasoline engine, diesel generator from 2-1000KW, water pump, trash pump, construction machinery like vibrator, rammer, compactor, concrete cutter, power trowel, farm machinery and so on
♦ Use famous brand spare parts
♦ ISO, CE, GS approved supplier
♦ One year warranty, complete spare parts for after-sales services
♦ Low price with good quality, reliable performance
♦ Easy to start and operate, convenient to move
♦ Low fuel consumption, easy maintenance
♦ Our logo or OEM
♦ Economic and practical products from hi-earns, reliable performance.
♦ Choose hi-earns, choose a rest assured.
♦ Advanced production lines and test rooms.
♦ Complete system of IQC.
♦ Perfect QCP.
♦ Strict spare parts IQC system, to ensure every spare parts are qualified.
♦ Technical support in every step to eliminate all detailed questions.
♦ Modern workshops have advanced production lines and professional knowledge of assembly.
♦ Flow card to record each details carefully.
♦ Test engine at least twice before ex-factory.
♦ Strong packaging to ensure safty during transportation.
♦ 7 layer corrugated carton or wooden box packaging for products.
♦ Modern office building, we warmly welcome your visiting.
♦ We attend exhibitions domestic and overseas. Rich activities to improve work enthusiasm.
♦ ISO, CE, GS, Rohs certificates. We have been making good progress.
