Overview
Quick Details
- Place of Origin:
- China
- Brand Name:
- Hiearns or OEM
- Model Number:
- DP20
- Structure:
- Piston Pump
- Usage:
- Water
- Application:
- irrigation
- Power:
- Electric
- Fuel:
- Diesel
- Pressure:
- Low Pressure
- Standard or Nonstandard:
- Standard
- Theory:
- Centrifugal Pump
- colour:
- optional
- cont.head:
- 26m
- max.suction head:
- 8m
- speed:
- 3600rmp
- type:
- single-cylinder,vertical,4-stroke air-cooled diesel engine
- displacement:
- 211cc
- bore*stroke:
- 70*55
- fuel tank:
- 2.5
Supply Ability
- Supply Ability:
- 300 Piece/Pieces per Day
Packaging & Delivery
- Packaging Details
- carton
- Port
- Shanghai
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 20 21 - 50 >50 Est. Time(days) 15 20 To be negotiated

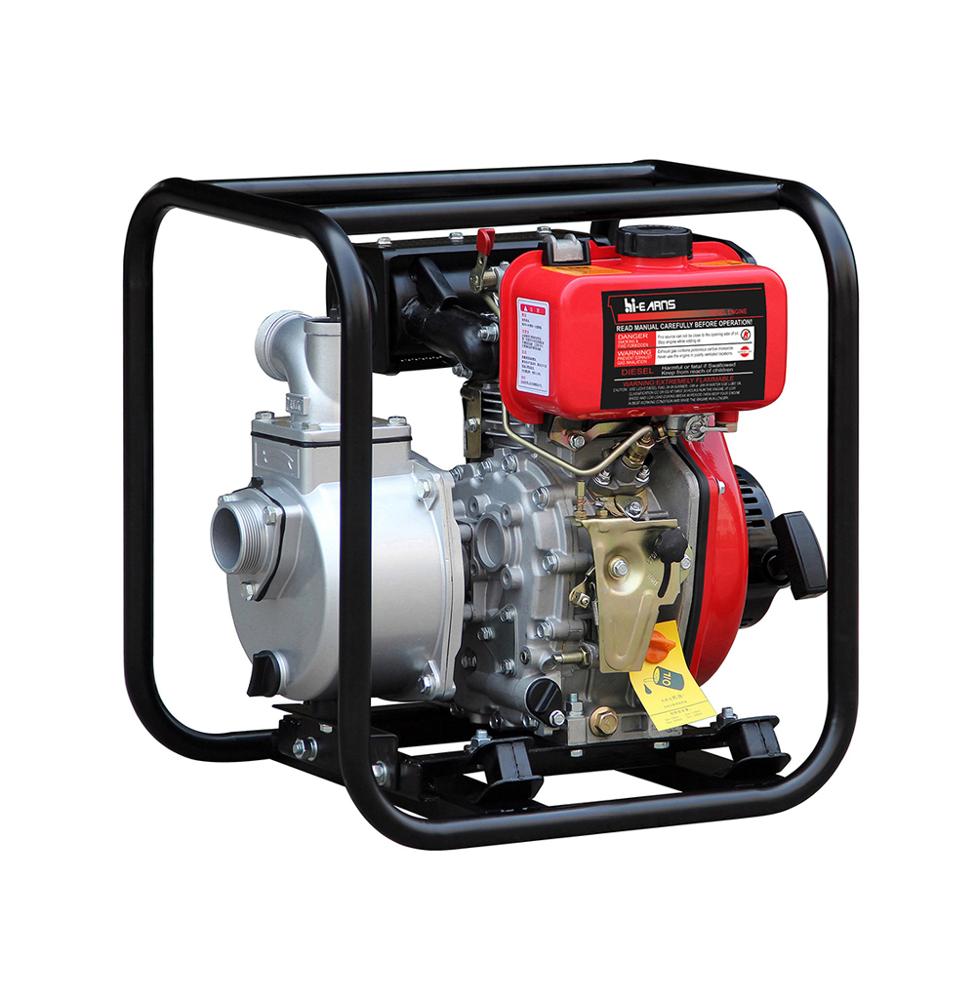

2 inch agricultural irrigation diesel water pump single cylinder agricultural machine
| WATER PUMP | Model | DP20 | |
| Suction,discharge port diameter[mm(in)] | 50(2") | ||
| Cont.head(m) | 26 | ||
| Self-priming time(s/4m) | 70 | ||
| Max suction head(m) | 8 | ||
| Cont.capacity(m³/hr) | 36 | ||
| ENGINE | Engine model | HR170F | |
| Speed(rpm) | 3600 | ||
| Type | 70×55 | ||
| Fuel | Single-cylinder,vertical,4-stroke air-cooled diesel engine | ||
Displacement(cc) | 211 | ||
Bore*stroke(mm) | 70*55 | ||
Starting system | Recoil or Electric | ||
| Fuel tank capacity(L) | 2.5 | ||
| STANDARD FEATURES | Oil alert | yes | |
| Connector of infall,Connecto of outfall | yes | ||
| Filter | yes | ||
| Seal ring | yes | ||
| Hoop | yes | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 490×420×530 | |
| Net weight(kg) | 38 | ||
| 20FT | 240 | ||
water pump
