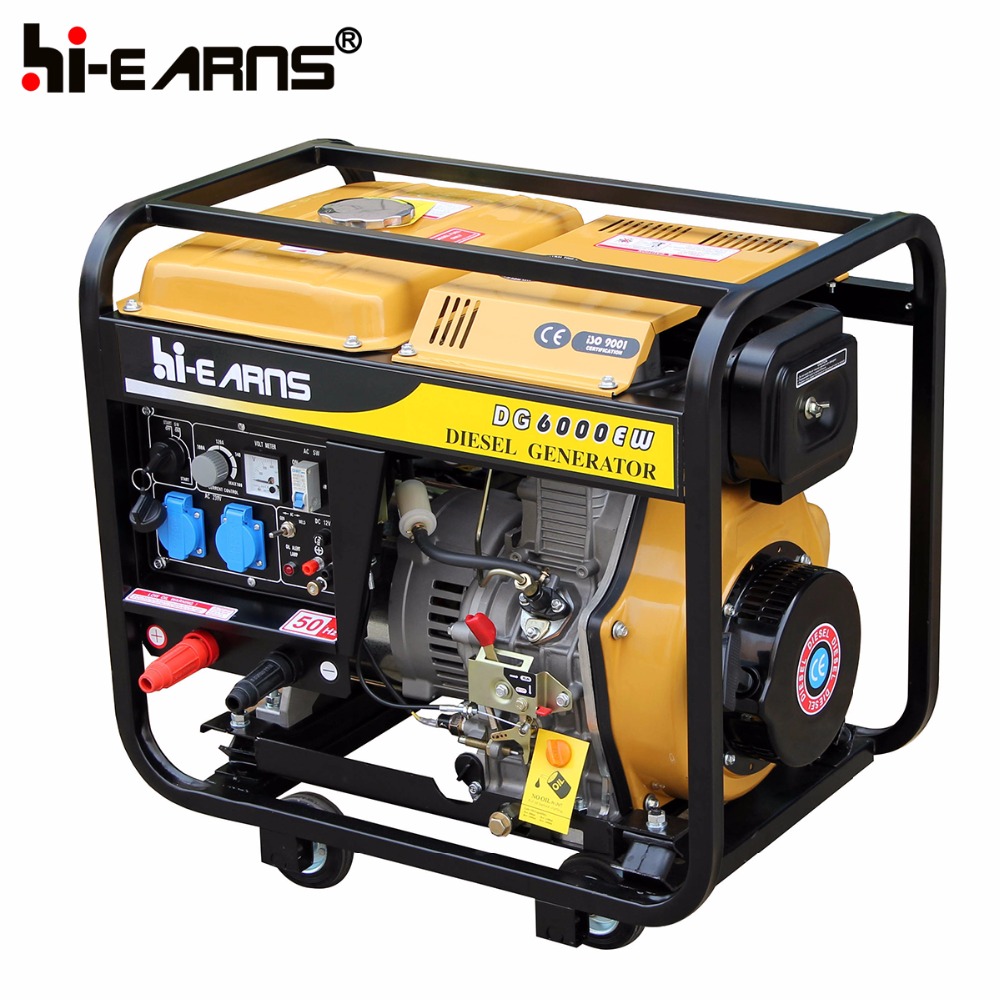

diesel welding generator set single cylinder welding machine DG6000EW
GENERATOR
| Model | DG6000EW | |
| Frequency(HZ) | 50 | 60 | |
| Rated.AC voltage(V) | 230 | 240 | |
| Rated current(A) | 7.8 | 9.2 | |
| Rated output(KVA) | 1.8 | 2.2 | |
| Rated speed(rpm) | 3000 | 3600 | |
WELDER | Welding no-load voltage(V) | 55-65 | |
| Working voltage(V) | 26-30 | ||
| Rated current (A) | 160 | ||
| Range of current(A) | 0-180 | ||
| Welding efficiency | 60% | ||
| Power factor (cosΦ ) | 1 | ||
| Phase | 1 | ||
| Noise level(at 7m) | 80-85db | ||
ENGINE | Engine model | HR186FA | |
| Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
| Bore× stroke(mm) | 86×72 | ||
| Displacement capacity(cc) | 418cc | ||
| Fuel | 0# or -10# light diesel fuel | ||
| Lubrication oil volume(L) | 1.65 | ||
| Combustion system | Direct lnjection | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
| OPTIONAL FEATURES | DC circuit breaker | optional | |
| Calculagraph | optional | ||
| Big Wheel | optional | ||
| Three phase voltage | optional | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 700× 470×600 | |
| Net weight(kg) | 120 | ||
| 20FT | 102 | ||
1.We are manufactory covering diesel and gasoline engine, diesel generator from
2-500KW, water pump, trash pump, construction machinery like vibrator rammer,
compactor, concrete cutter, power trowel, farm machinery and so on
2.Use famous brand spare parts
3.ISO, CE, GS approved supplier
4.One year warranty, complete spare parts for after-sales services
5.Low price with good quality, reliable performance
6.Easy to start and operate, convenient to move
7.Low fuel consumption, easy maintenance
8.Our logo or OEM
Every product will be tested twice before ex-factory,and our products are 100% ex factory pass rate.
We continuously introducing advanced production technology, realize the automatic production, testing lines.
