Home > Products > Air-cooled gasoline water pump(GP30)

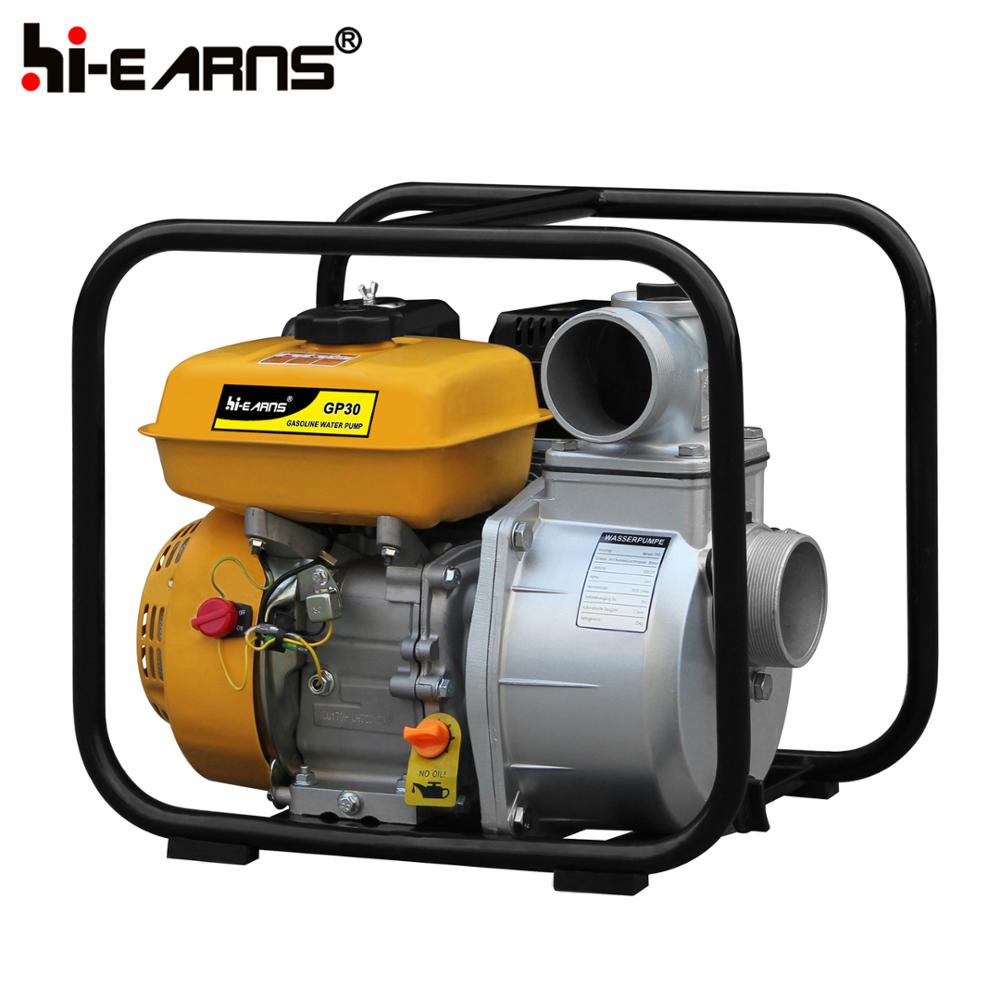

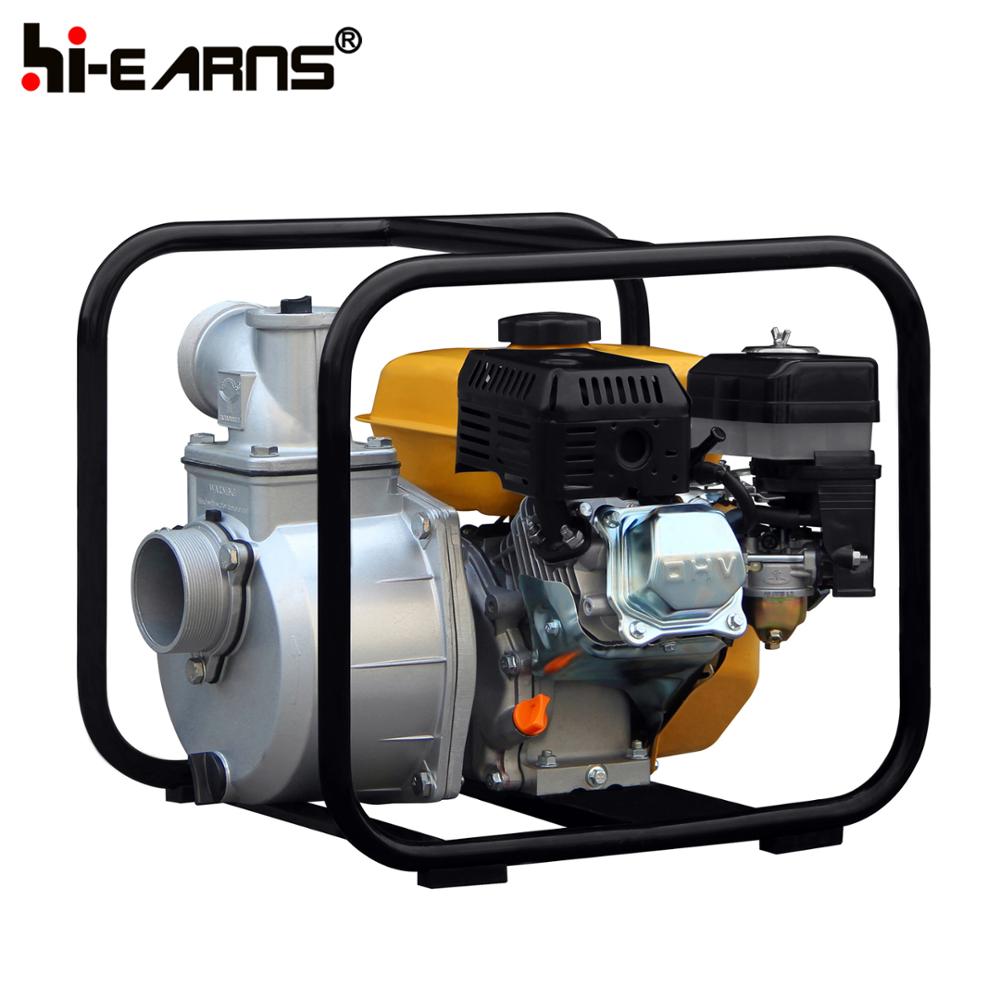

Air-cooled gasoline water pump(GP30)
Click on the image to view the original image
Product： views：3Air-cooled gasoline water pump(GP30)
Branch： Hi-earns
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-12-03 18:36
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Hi-earns
Model Number:
GP30
Structure:
Piston Pump
Usage:
Water
Application:
farming,irrigate
Power:
Electric
Fuel:
Gasoline
Pressure:
Low Pressure
color:
optional
Design:
New
Noise:
low
Cont.head(m):
28
Material:
Aluminum
Engine type:
OHV
Certificate:
ISO9001 CE
Warranty:
1 Year
Engine model:
HR200
Feature:
High Efficiency
Standard or Nonstandard:
Standard
Theory:
Centrifugal Pump
Supply Ability
Supply Ability:
500 Set/Sets per Day
Packaging & Delivery
Packaging Details
carton
Port
shanghai
Lead Time:
25days after confirm the order

gasoline water pump(GP30)


WATER PUMPModelGP30
Suction,discharge port diameter[mm(in)]80(3")
Cont.head(m)28
Self-priming time(s/4m)              120
Max suction head(m)8
Cont.capacity(m³/hr)50
ENGINEEngine modelHR200
Speed(rpm)3600
Type4-stroke air-cooled OHV gasoline engine

Displacement(cc)

 196

Bore*stroke(mm)

 68*654

Starting system

Recoil
Fuel tank capacity(L)3.6
STANDARD FEATURESOil alertyes
Connector of infall,Connecto of outfallyes
Filteryes
Seal ringyes
Hoopyes
DIMENSIONSDimension(L× W× H)(mm)525×410×445
Net  weight(kg)52
20FT140













Warranty and Service

Warranty

Guarantee for one year or 800 hours whichever reach first from ex-factory date. If the quality problem arise during the warranty period, and verified the problem is caused by our genset body instead of external or natural reasons(refer to all kinds of natural disaster, shipping, loading, unloading, wrong operation etc), we will supply the relevant spare parts free of charge for maintenance; After expiration, Hi-earns provides cost spare parts maintenance of products.

Service

1.Our quality department will provide the best solution that make you satisfied efficiently and accurately.

2.If the broken spare parts are in the period under warranty, we will offer this spare parts for free under the condition of this spare parts are not intentionally damaged.
