Home > Products > Hot sell new small 10hp diesel engine

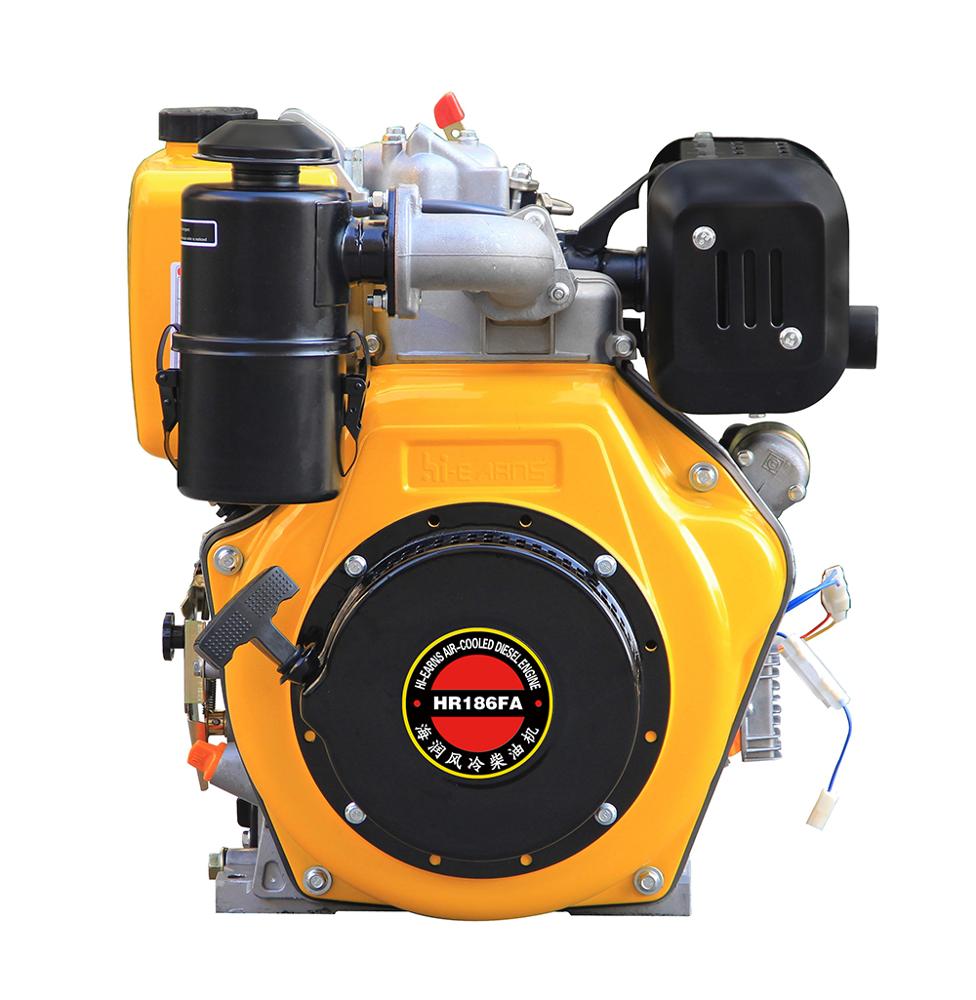

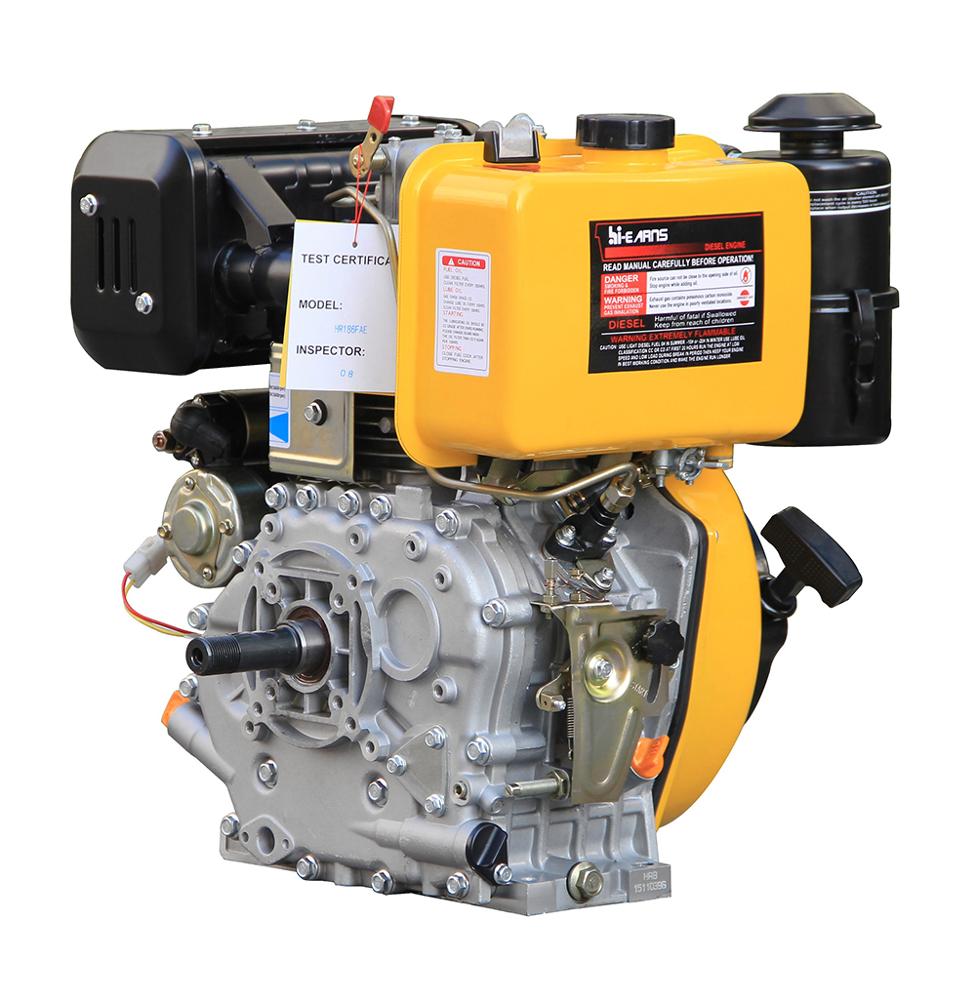

Hot sell new small 10hp diesel engine
Click on the image to view the original image
Product： views：3Hot sell new small 10hp diesel engine
Branch： Hi-earns or OEM
Size： 42X49X51 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-12-03 18:36
  Negotiated
Product Details
Overview
Quick Details
Applicable Industries:
Hotels, Manufacturing Plant, Farms, Restaurant, Home Use, Retail, Construction works , Energy & Mining
Condition:
New
Stroke:
4 Stroke
Cylinder:
Single Cylinder
Cold Style:
Air-cooled
Start:
Recoil type hand starting
Place of Origin:
Jiangsu, China
Brand Name:
Hi-earns or OEM
Dimension(L*W*H):
417x470x494 mm
Weight:
50KG
Certification:
CE, GS, ROHS, ISO
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Engine model:
HR186F diesel engine
Engine power:
10HP
Engine speed:
3000/3600 RPM
Start system:
Recoil or Electric start
Output type:
Keyway, spline, camshaft optional

Packaging & Delivery

Selling Units:
Single item
Single package size:
42X49X51 cm
Single gross weight:
50.0 kg
Package Type:
carton
Lead Time:
Quantity(Set)1 - 12 - 56 - 100>100
Est. Time(days)3315To be negotiated
Video Description
Related Products

Hot sell new small 10hp diesel engine



HR186F model: 10HP rated output, Air-cooled 4-stroke small diesel engine.



Keyway shaft, spline shaft, camshaft and so on output type are optional.



Recoil or Electric start also optional ensure easy starting.en



ModelHR186F
Bore×stroke(mm)86×70
Displacement(cc)406
Engine speed(rpm)30003600
Max.output(kw)6.57.1
Continuous output(kw )      5.96.5
Power outputCrankshaft or camshaft(Camshaft PTO rpm is 1/2)
Starting systemRecoil or electric
Fuel tank capacity(L)       5.5
Rube oil capacity(L)1.1
Dimension(mm)417x470x494
Net weight(kg)44/50
Product Description

Field of Application

♦ Our products are widely used in various fields, such as generators,water pumps, rotavator,concrete cutter,plate compactor,high pressure washer
