Overview
Quick Details
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- GF2-30KW
- Rated Voltage:
- 220/380,230/400,240/415V
- Rated Current:
- 57A
- Speed:
- 1500rpm
- Frequency:
- 50hz
- Engine:
- Quanchai engine
- Alternator:
- Stamford Brushless Alternator
- type:

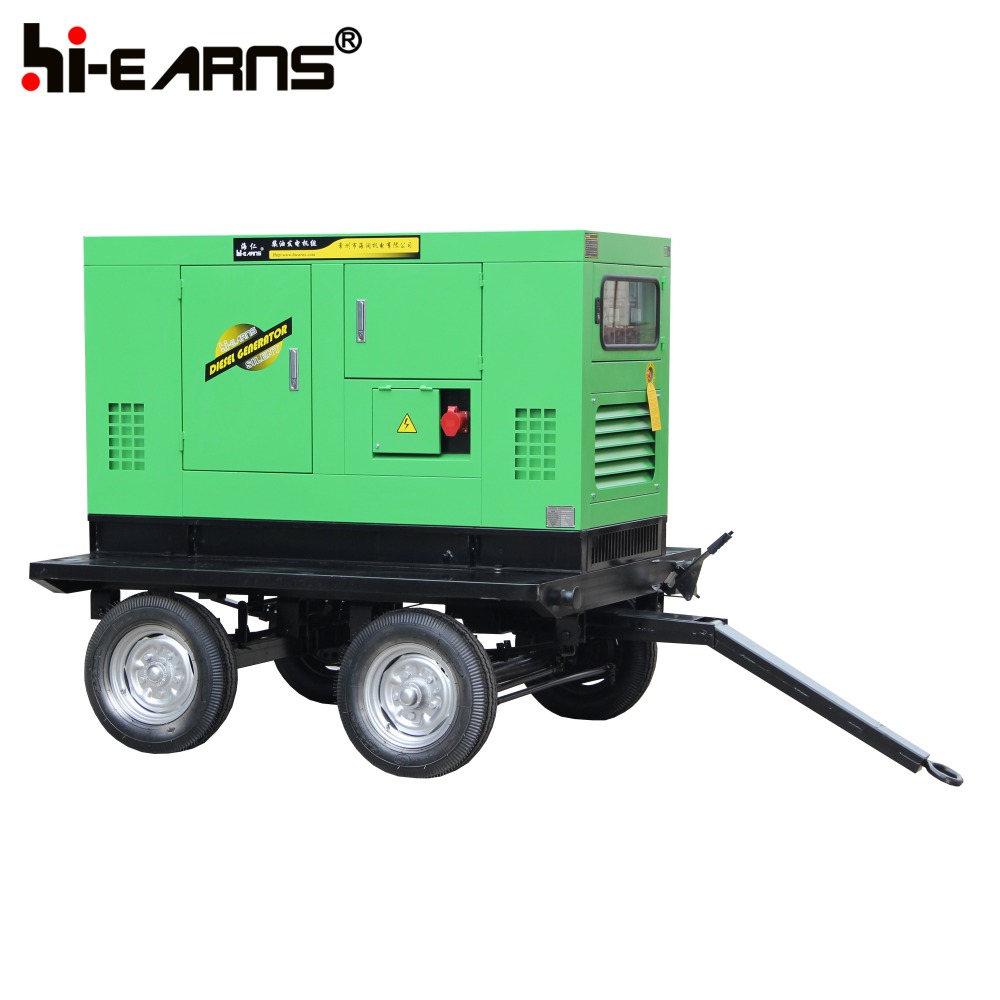

- portable convenient trailer
- color:
- Yellow/white/green/red
- canopy:
- Silent and trailer
- Phase:
- Three
- Engine type:
- Four cylinder four stroke
- Price:
- Competitive price
- Quality:
- Better andbest
- Power factor:
- 0.8
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 212X880X130 cm
- Single gross weight:
- 850.0 kg
- Package Type:
- Bubble wrap with plastic film or wooden case with iron sheet
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 1 2 - 4 >4 Est. Time(days) 25 35 To be negotiated
Related Products
| Voltage | Frequency (HZ) | Phase | P.F (COS) | Standby Amps | Standby Ratings (KW/KVA) | Prime Ratings (KW/KVA) |
| 440/254 | 50 | 3 | 0.8 | 52 | 32/40 | 30/38 |
| 415/240 | 50 | 3 | 0.8 | 56 | 32/40 | 30/38 |
| 400/230 | 50 | 3 | 0.8 | 58 | 32/40 | 30/38 |
| 380/220 | 50 | 3 | 0.8 | 61 | 32/40 | 30/38 |
| Standby Power Rating(ESP):The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption.No overload,utility parallel or negotiated outage operation capability is available at this rating. | ||||||
| Prime Power(PRP):Prime power is available for an unlimited number of annual hours in variable load application,in accordance with GB/T2820-97 (eqv ISO8528);A 10% overload capability is available for a period of 1 hour within a 12-hour period of operation. | ||||||
| ENGINE DATA | ||||||
| Engine Type | Quanchai Engine 4105D. Four stroke,Water-cooled, Direct line | |||||
| Rated RPM(r/min) | 1500rpm | |||||
| Cooling System | Forced Water-cooled | |||||
| Fuel Consumption(≤g/kw.h) | ≤238 | |||||
| Cylinder Number | 4 | |||||
| Bore×Stroke (mm) | 105×118 | |||||
| Displacement(L) | 4.087 | |||||
| Start Method | Electric Start | |||||
| Rated Speed Regulation(g/kW·h) | ≤5 | |||||
| Combustion Chamber Type | Direct Injection | |||||
| Add Oil Capacity | 8L | |||||
| Alternator Data | ||||||
| Power Factor | 0.8 Lag | |||||
| Insulation Class | H | |||||
| Lubricating System | Pressure,Split,Complex | |||||
| Protection Grade | IP23 | |||||
| Exciter Type | Brushless,self-exciting | |||||
| Altitude | ≤1000m | |||||
| Environment Temperature | 40 | |||||
| Connecting Type | 3 Phase and 4 Wires,"Y" type connecting | |||||
| Intake Type | Natually-Aspirated | |||||
| Rated Speed Regulation | ≤±1% | |||||
| Phase | 3 | |||||
| Dimension & Weight | ||||||
| Open Type | Soundproof Type | |||||
| Overall Size:1.9(m)×0.9(m)×1.18(m) | Overall Size:2.17(m)×1(m)×1.26(m) | |||||
Weight:810kg | Weight :860kg | |||||
