Home > Products > Diesel generator set open type with Chinese engine

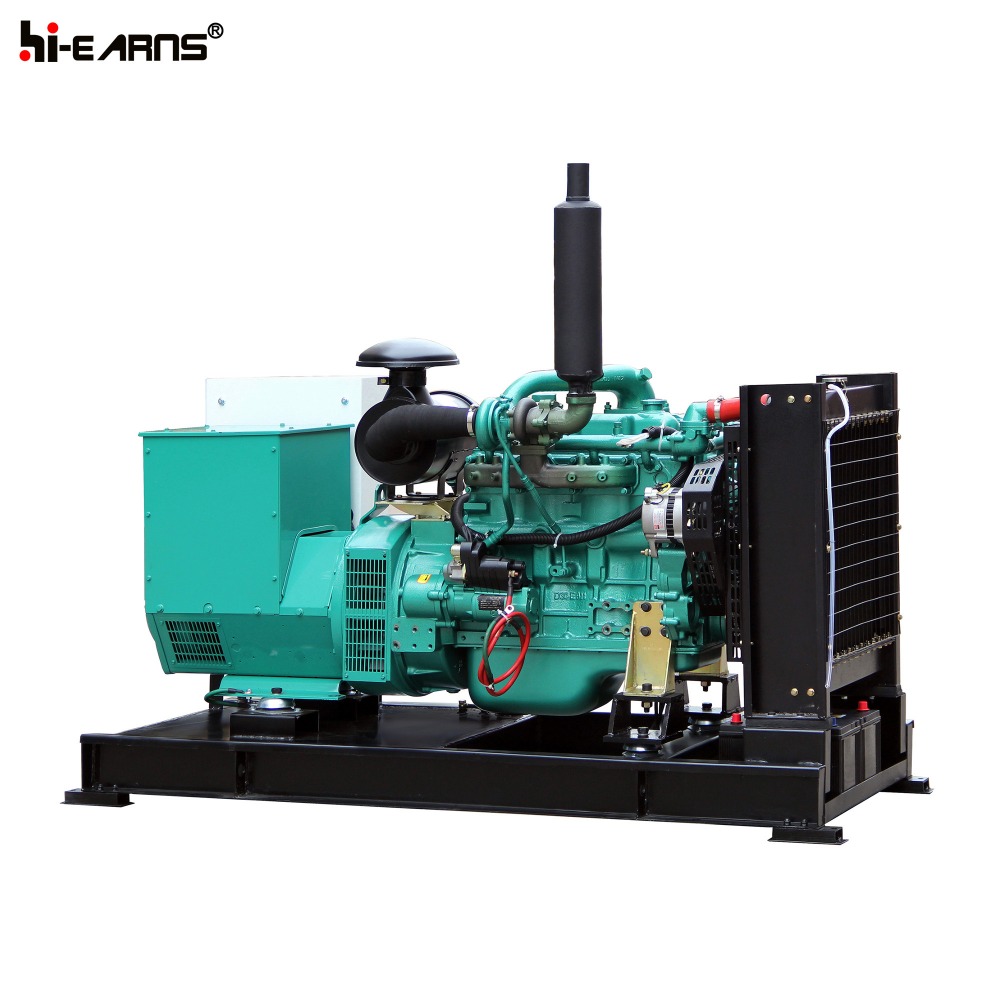

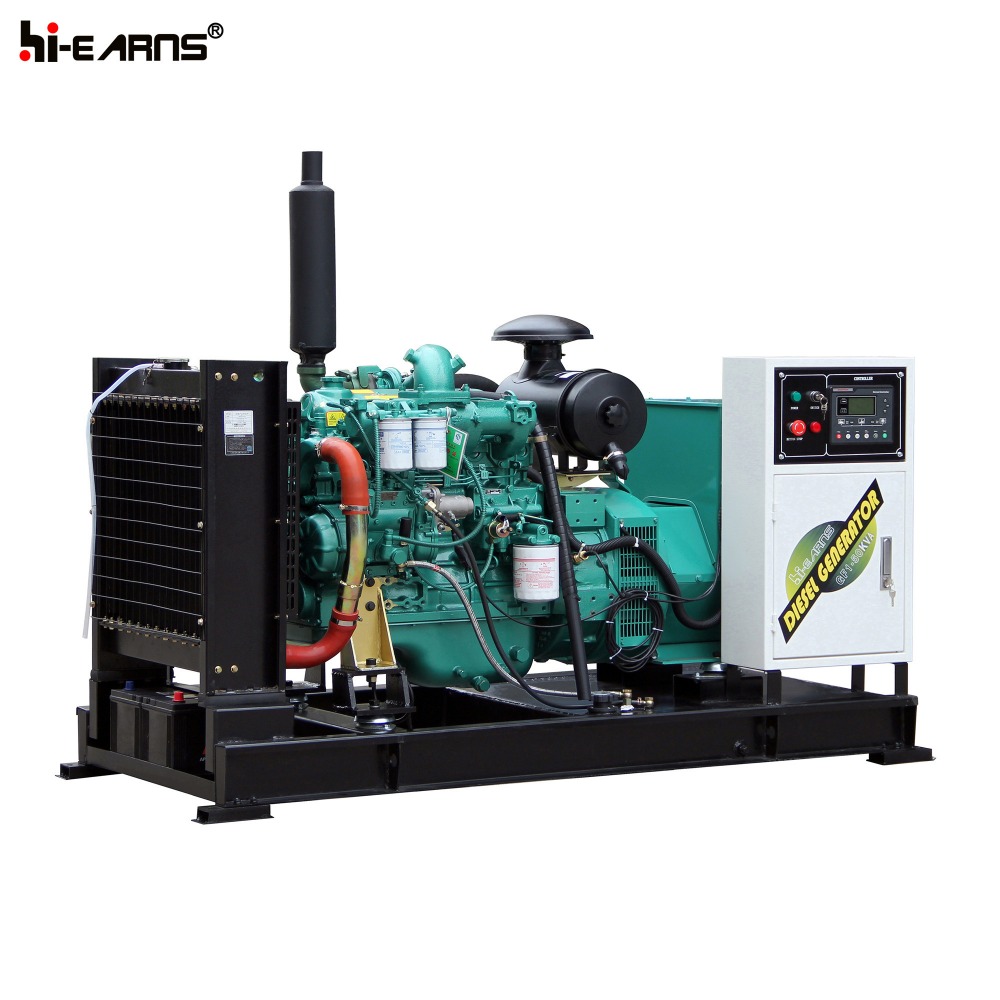

Diesel generator set open type with Chinese engine
Click on the image to view the original image
Product： views：4Diesel generator set open type with Chinese engine
Branch： Hi-earns
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-12-03 18:36
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Hi-earns
Model Number:
GF1-50KVA
Rated Power:
40KW
Output Type:
AC Three Phase
Rated Voltage:
220/380
Rated Current:
75
Speed:
1500rpm/1800rpm
Frequency:
50/60HZ
Engine:
Huafeng engine
Alternator:
Stamford Brushless Alternator
type:
portable,convenient
Control panel:
Deepsea / ComAp / Harsen / Smartgen 6110
Color:
optional
Certificate:
CE/ISO9001
Warranty:
1 Year
Supply Ability
Supply Ability:
50 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
iron frame packing
Port
Shanghai
Lead Time:
25days to 30days

Diesel generator set open type with Chinese engine


ModelGF2-50KVA
Standby power(50HZ)43KW / 54KVA
Prime power(50HZ)40KW / 50KVA
Voltage(V)220/380V
Phase3
P.F(COSφ)      0.8
Standby Amps(A)81
Engine typeWeifang Huadong Engine R4105D, 4-stroke,water-cooled,direct line, turbo type
Rated RPM(r/min)1500rpm
Cooling system

Forced water-cooled

Fuel consumption(g/kw.h)

≤ 231

Commpression Ratio

17:01

Bore x Stroke(mm)105 x 125
Displacement(L)4.33
Start Method17.0:1
Rated RPMElectric start
Alternator Data
Power Factor0.8 Lag
Insulation ClassH
Lubricating SystemPressure,Split,Complex
Exhaust Air Temperature≤ 600
Altitude≤ 1000m
Environment Temperature40
Connecting Type3 Phase and 4 Wires, "Y" type connecting
Ignite sequence1-3-4-2
Intake Typepressurize
Rated Speed Regulation %≤±1%
Phase3
Overall Size2.15x0.95x1.29(m)
Weight860kg
