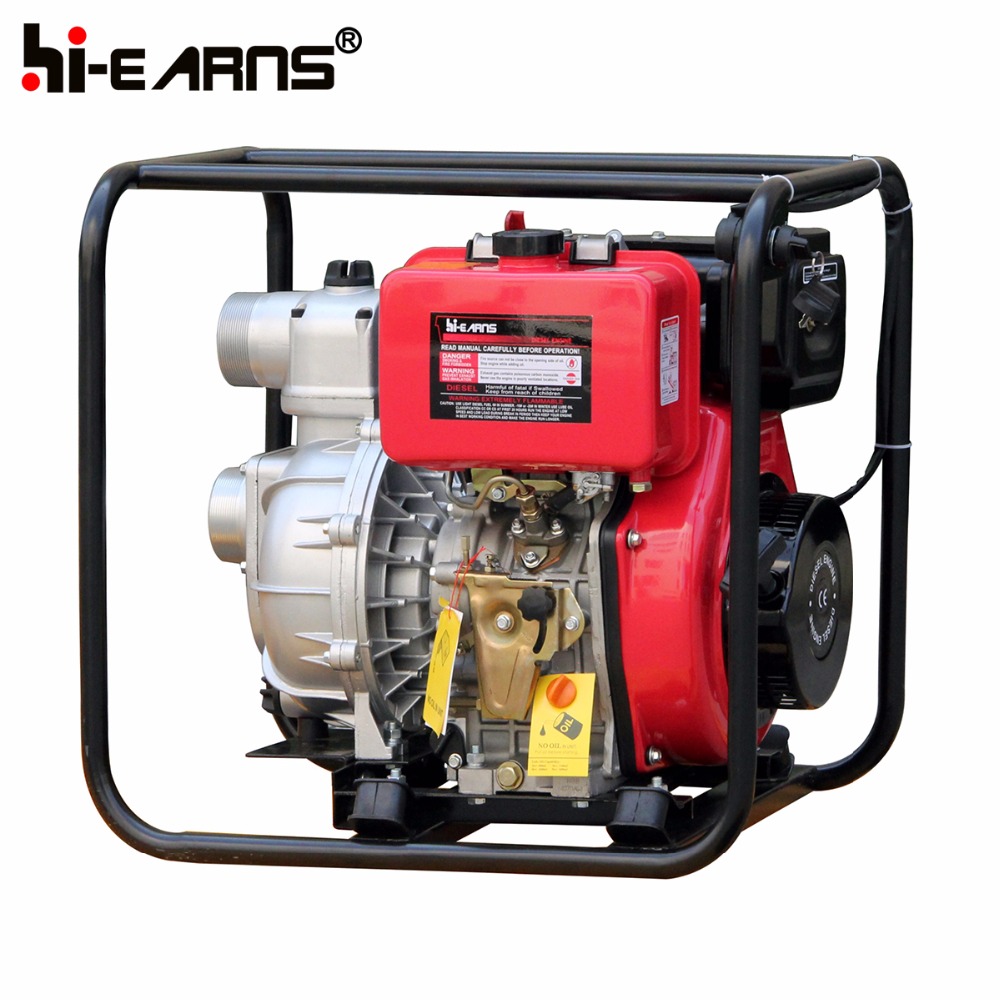

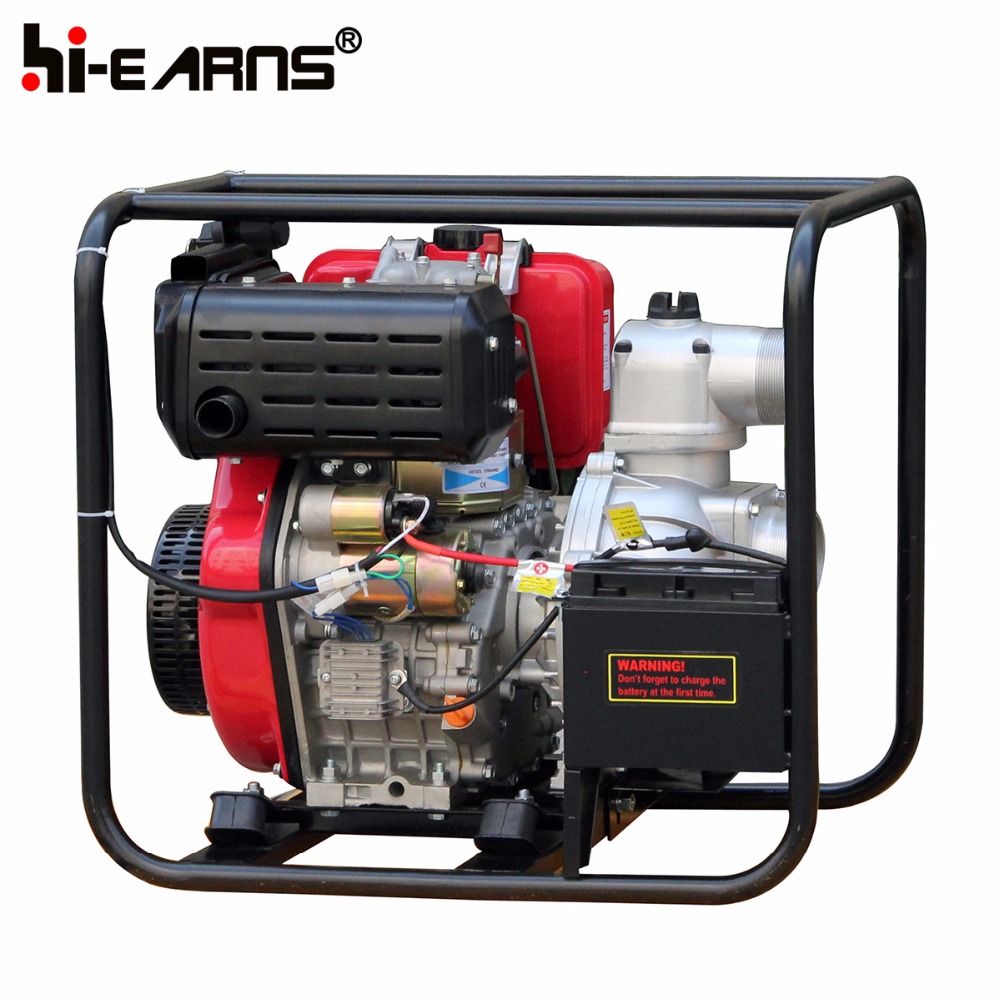

3 inch water pump manufacturer Original high pressure diesel water pump price
| WATER PUMP | Model | DP30H | |
| Suction,discharge port diameter[mm(in)] | 80(3") | ||
| Cont.head(m) | 70 | ||
| Self-priming time(s/4m) | 30 | ||
| Max suction head(m) | 8 | ||
| Cont.capacity(m³/hr) | 38 | ||
| ENGINE | Engine model | HR192 | |
| Speed(rpm) | 3600 | ||
| Fuel consumption(g/kw.h) | 285 | ||
| Fuel | Single-cylinder,vertical,4-stroke air-cooled diesel engine | ||
Displacement(cc) | 498 | ||
Bore*stroke(mm) | 92*75 | ||
Starting system | Recoil or Electric | ||
| Fuel tank capacity(L) | 5.5 | ||
| STANDARD FEATURES | Oil alert | yes | |
| Connector of infall,Connecto of outfall | yes | ||
| Filter | yes | ||
| Seal ring | yes | ||
| Hoop | yes | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 595×475×585 | |
| Net weight(kg) | 61 | ||
| 20FT | 120 | ||
