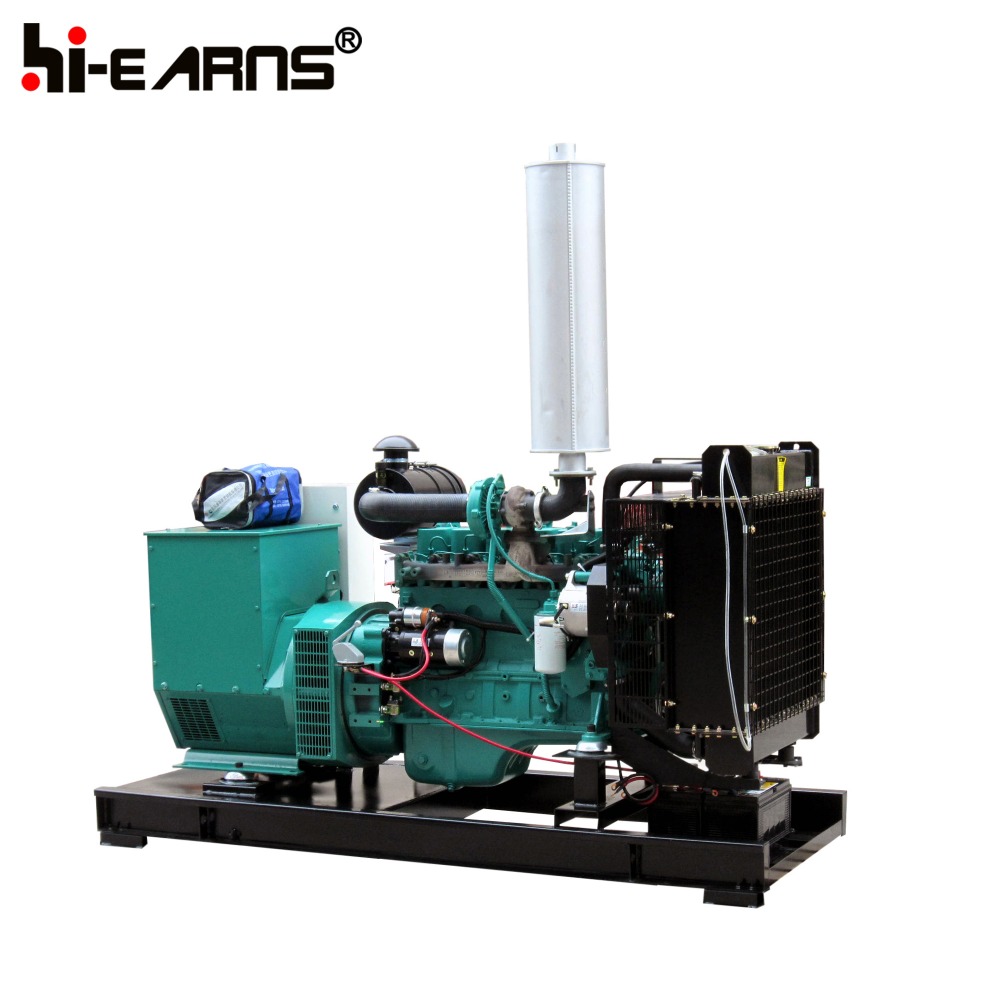

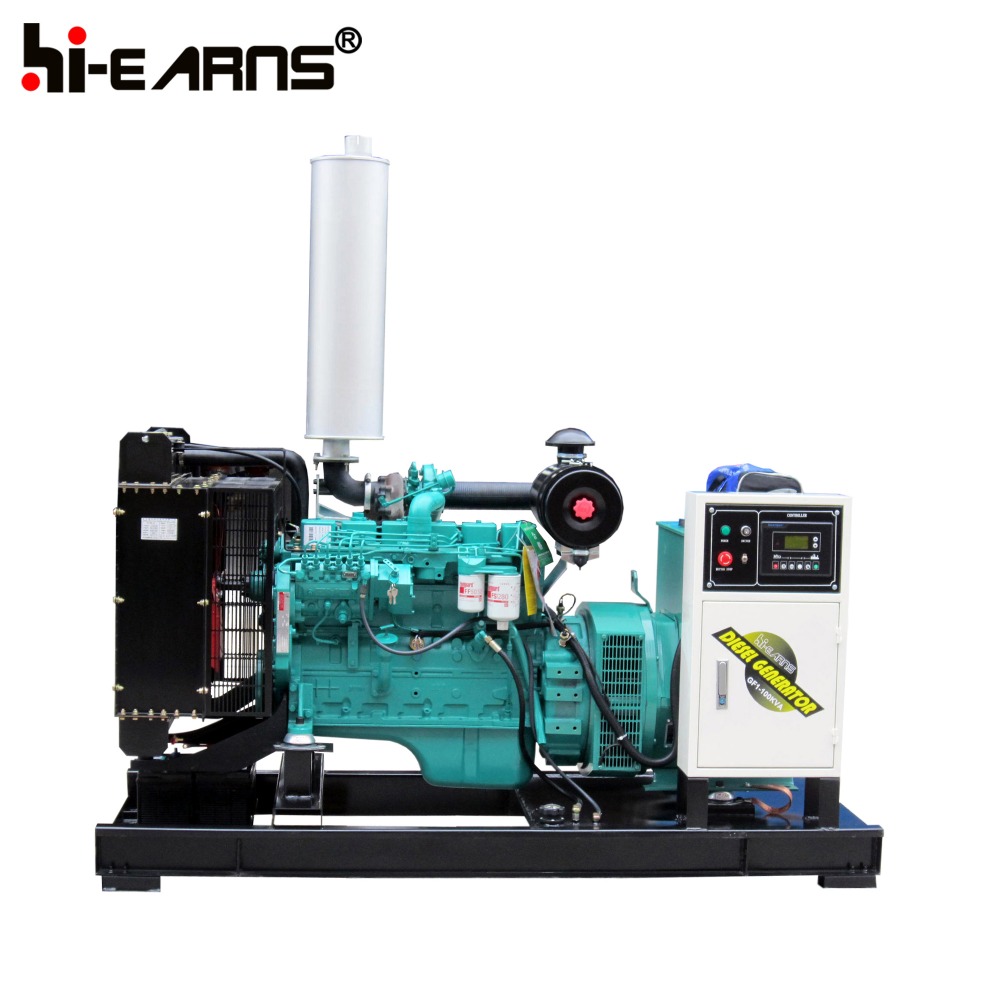

Hot sale 100KVA open type water cooled electric diesel generator
Click on the image to view the original image
Product： views：5Hot sale 100KVA open type water cooled electric diesel generator
Branch： Hi-earns
Type： Silent/super silent/open
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-12-03 18:36
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Hi-earns
Model Number:
GF1-100KVA
Rated Power:
100KVA/80KW
Output Type:
AC Three Phase
Rated Voltage:
220/380V,230/400V,240/415V
Rated Current:
152A
Speed:
1500/1800rpm
Frequency:
50HZ/60HZ
Color:
Yellow/Green/White/Green/Red/Orange/Blue
Type:
Silent/super silent/open
Panel:
Common/digital/ATS
Design:
New
Noise:
80-85dB
Power factor:
0.8
Phase:
three
Engine type:
Four cylinder four stroke
Price:
More competitive
Warranty:
One year
Supply Ability
Supply Ability:
30 Set/Sets per Day
Packaging & Delivery
Packaging Details
Packaging details:Bubble wrap with plastic film
Delivery time: 25-30 days
Port
shanghai
Lead Time:
25days to 30days

100KVA open type water cooled diesel generator

ModelGF1-100KVA
Standby power(50HZ)87KW/109KVA
Prime power(50HZ)80KW/100KVA
Voltage(V)220/380V
Phase3
P.F(COSφ)      0.8
Standby Amps(A)165
Engine typeDCEC Cummins 6BT5.9-G1/G2, 4-stroke
Air intake systemturbo
Fuel system

A/AD type fuel pump

Fuel consumption(g/kw.h)

≤ 214

Cylinder arrangement

6 in line

Displacement5.9L
Bore x Stroke102 x 120(mm)
Compression Ratio17.5:1
Rated RPM1500rpm
Max.Standby Power at Rated RPM92KW/125HP
Governor TypeRSV Mechanical(Std)/Electronic(optional)
Max Water Temperature104 degree celsius
Alternator Data
Number of Phase3
Connecting Type3 Phase and 4 Wires, "Y" type connecting
Number of Bearing1
Power Factor0.8 Lag
Protection GradeIP23
Altitude≤ 1000m
Exciter TypeBrushless, self-exciting
Insulation Class,Temperature RiseH/H
Telephone Influence Factor(TIF)<50
THF<2%
Voltage Regulation, Steady State≤±1%
Alternator Capacity100KVA
Alternator Efficiencies90.4%
Air cooling Flow0.514m3/s
Overall Size2.7x1.1x1.5(m)
Weight1900kg



Automatic Workshop

♦ Modern workshops have advanced production lines and professional knowledge of assembly.

♦ Flow card to record each details carefully.

♦ Test engine at least twice before ex-factory.



Package
