Click on the image to view the original image
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns or OEM
- Model Number:
- DGLB6500SE
- Rated Voltage:
- 220V
- Rated Current:
- 22.7A
- Speed:
- 3000RPM
- Frequency:
- 50HZ
- canopy:
- silent type canopy
- engine model:
- 186FA
- light tower:
- 5kva silent mobile diesel generator light lighting tower
- 3 phase, hour meter, current meter:
- optional
- light tower light:
- very bright
- Alternator:
- 100% copper
- Engine:
- Chinese Engine
- Color:
- optional
- Warranty:
- 1 Year
- Control panel:
- LCD Panel
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 123X64X102 cm
- Single gross weight:
- 300.0 kg
- Package Type:
- plywood box
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 5 6 - 20 >20 Est. Time(days) 15 23 To be negotiated

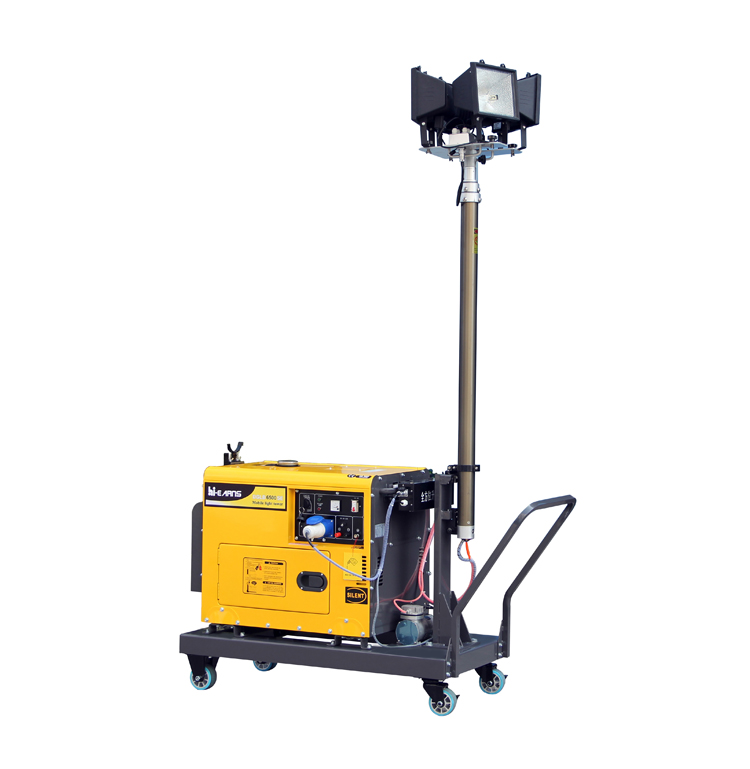

5kva silent mobile diesel generator light lighting tower
♦ Use good brand spare parts
♦ 100% copper alternator
♦ Portable type, with four wheels, easy to move
♦ We are factory, have low price spare parts and timely technical support
Model | DGLB6500SE |
Mast: | |
Maximum extention of mast | 4.8m |
Elevation | Mechanical/Electric |
Raising/lowing mast | Winch(Mechanical)/Button(Electric) |
Stages | 3 |
Turning angle | 360 degrees non-continuous |
Lamp: | |
Total power of lamps | 4x1000W |
Type of lamp | halide lamp |
Light capacity | 4x25000 lumen |
Voltage | 120, 220, 230, 240 |
Frequency | 50HZ |
Lifetime of lamp | 2000hours |
Working temperature | ≤85°C |
Connection protection index | IP54 |
Characteristics of the generator: | |
Model | DG6500SE |
Rated power | 50Hz 5.0KW |
Standby power | 50Hz 4.6KW |
Engine mdel | HR186A Diesel |
Engine speed | 50Hz 3000rpm |
Engine type | Single cylinder, 4-stroke, air-cooled |
Starting system | Electric |
Alternator | 2-pole,brushless |
Fuel tank capacity | 16L |
Working hours | 9.2 |
Control system | Normal panel or Digital control panel |
Power Outlets | 2 |
Trailer: | |
Stabilier Supprts | 4xManual |
Tire Size | 8 inch |
Anti-wind capacity | ≤6 |
Brakes | Manual |
Packing Dimension & Weight: | |
Retracted Dimension(cm) | 110×65×103, 168×14×18, 58×47×40 |
Container load(20FT/40FT) | 28 |
Net weight | 205kg |
♦ We are manufactory covering diesel and gasoline engine, diesel generator from 2-1000KW, water pump, trash pump, construction machinery like vibrator, rammer, compactor, concrete cutter, power trowel, farm machinery and so on
♦ Use famous brand spare parts
♦ ISO, CE, GS approved supplier
♦ One year warranty, complete spare parts for after-sales services
♦ Low price with good quality, reliable performance
♦ Easy to start and operate, convenient to move
♦ Low fuel consumption, easy maintenance
♦ Our logo or OEM
♦ Economic and practical products from hi-earns, reliable performance.
♦ Choose hi-earns, choose a rest assured.
♦ Advanced production lines and test rooms.
♦ Complete system of IQC.
♦ Perfect QCP.
♦ Strict spare parts IQC system, to ensure every spare parts are qualified.
♦ Technical support in every step to eliminate all detailed questions.
♦ Modern workshops have advanced production lines and professional knowledge of assembly.
♦ Flow card to record each details carefully.
♦ Test engine at least twice before ex-factory.
♦ Strong packaging to ensure safty during transportation.
♦ 7 layer corrugated carton or wooden box packaging for products.
♦ Modern office building, we warmly welcome your visiting.
♦ We attend exhibitions domestic and overseas. Rich activities to improve work enthusiasm.
♦ ISO, CE, GS, Rohs certificates. We have been making good progress.
