Overview
Quick Details
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- GG6500S
- Rated Voltage:
- 120V,220V,240V,110V/220V
- Rated Current:
- 25A
- Speed:
- 3000rpm/3600rpm
- Frequency:
- 50/60HZ
- starting system:
- electric and recoil starting
- Generator model:
- 5.5KW silent gasoline generator
- Alternator detail:
- 100% copper wire
- Engine model:
- HR390 gasoline engine
- Engine power:
- 13HP
- Control system:
- Normal panel control
- Warranty:
- 1 Year
- Certificate:
- CE ISO9001
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 0.95X0.56X0.77 cm
- Single gross weight:
- 145.0 kg
- Package Type:
- Carton packing with plywood pallet
- Picture Example:
- Lead Time:
Quantity(Set) 1 - 10 11 - 72 >72 Est. Time(days) 20 30 To be negotiated
Video Description

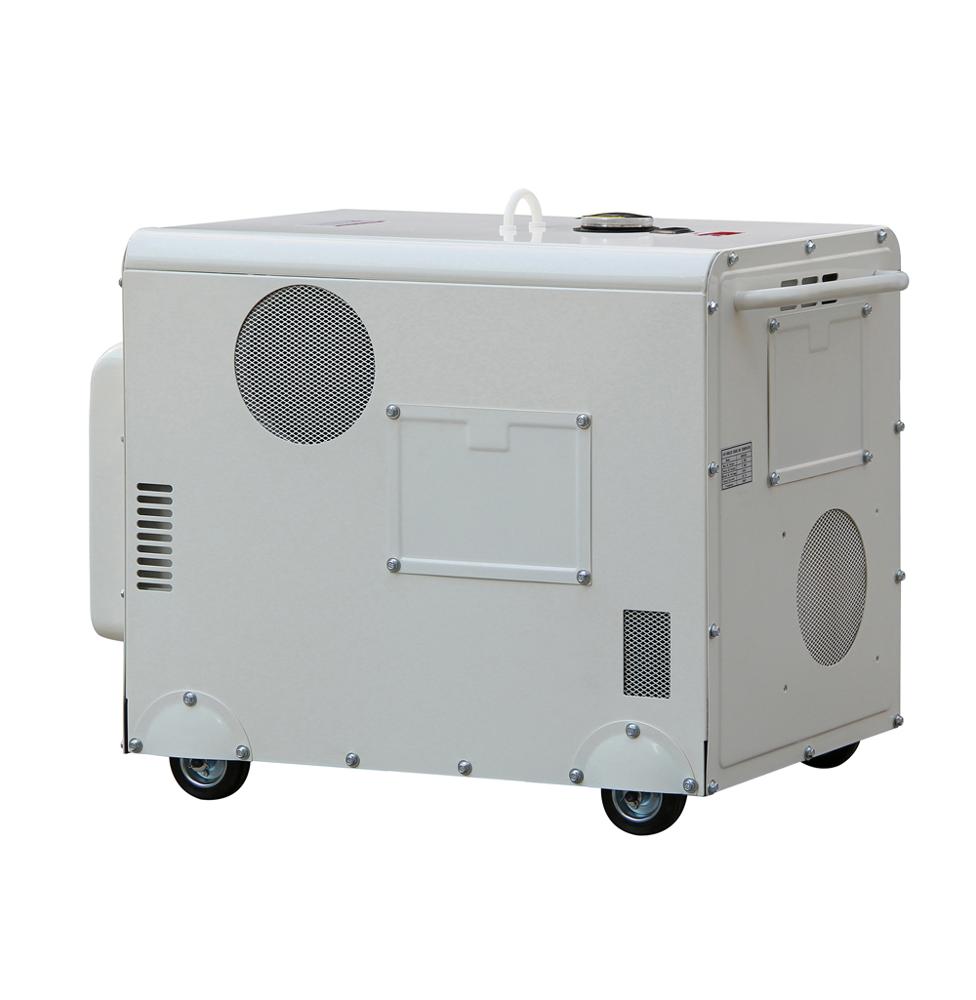

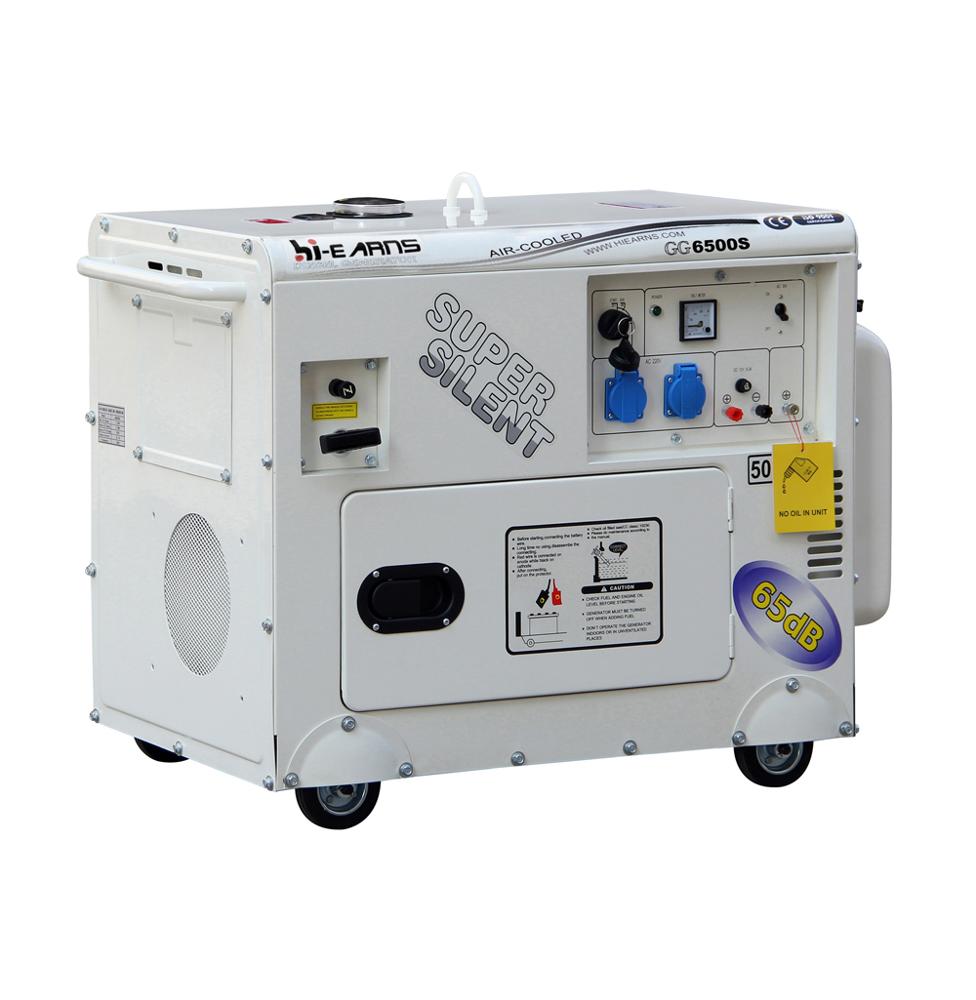

5.5KW rated output portable super silent gasoline generator
GG6500S model: With 13 HP HR390 gasoline engine and 100% copper wire alternator ensure a 5KW rated output, and 5.5KW max. output!
Related Products
GENERATOR | Model | GG6500S | |
Frequency(HZ) | 50 | 60 | |
Max. output(kw) | 5.5 | 6 | |
Rated output(kw) | 5 | 5.5 | |
Rated. AC voltage(v) | 120, 220, 230, 240 | ||
Power factor(cosΦ ) | cosΦ =1 | ||
DC output (v) | 12V/8.3A | ||
Phase | Single phase | ||
Alternator type | self-excited, 2-pole, single phase alternator | ||
Starting system | Recoil or Electric | ||
Operating noise level(at 7m) | 65 | 68 | |
Fuel tank capacity(L) | 25 | ||
Continues work(hr) | 9 | 7.5 | |
ENGINE | Model | HR390 | |
Engine type | 4-stroke air-cooled OHV gasoline engine | ||
Bore× stroke(mm) | 88×64 | ||
Fuel | Unleaded gasoline | ||
Lubrication oil volume(L) | 1.1 | ||
Combustion system | TCI(transister ignition) | ||
STANDARD FEATURES | Voltmeter | yes | |
AC Output Socket | yes | ||
AC circuit breaker | yes | ||
Oil warning light | yes | ||
Oil alert | yes | ||
OPTIONAL FEATURES | DC circuit breaker | optional | |
Calculagraph | optional | ||
Wheel and handle | optional | ||
Current meter | optional | ||
DIMENSIONS | Dimension(L× W× H)(mm) | 950× 560×770 | |
Net weight(kg) | 145 | ||
20FT | 72 |
