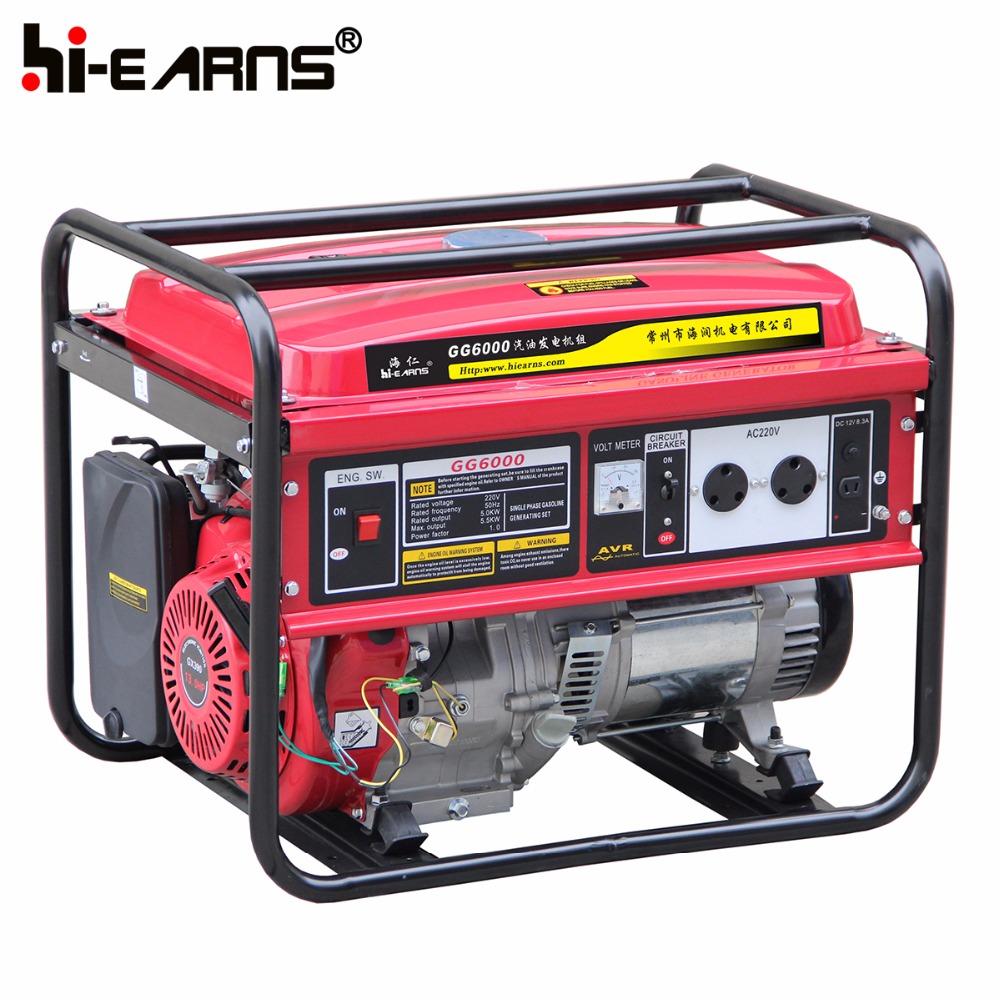

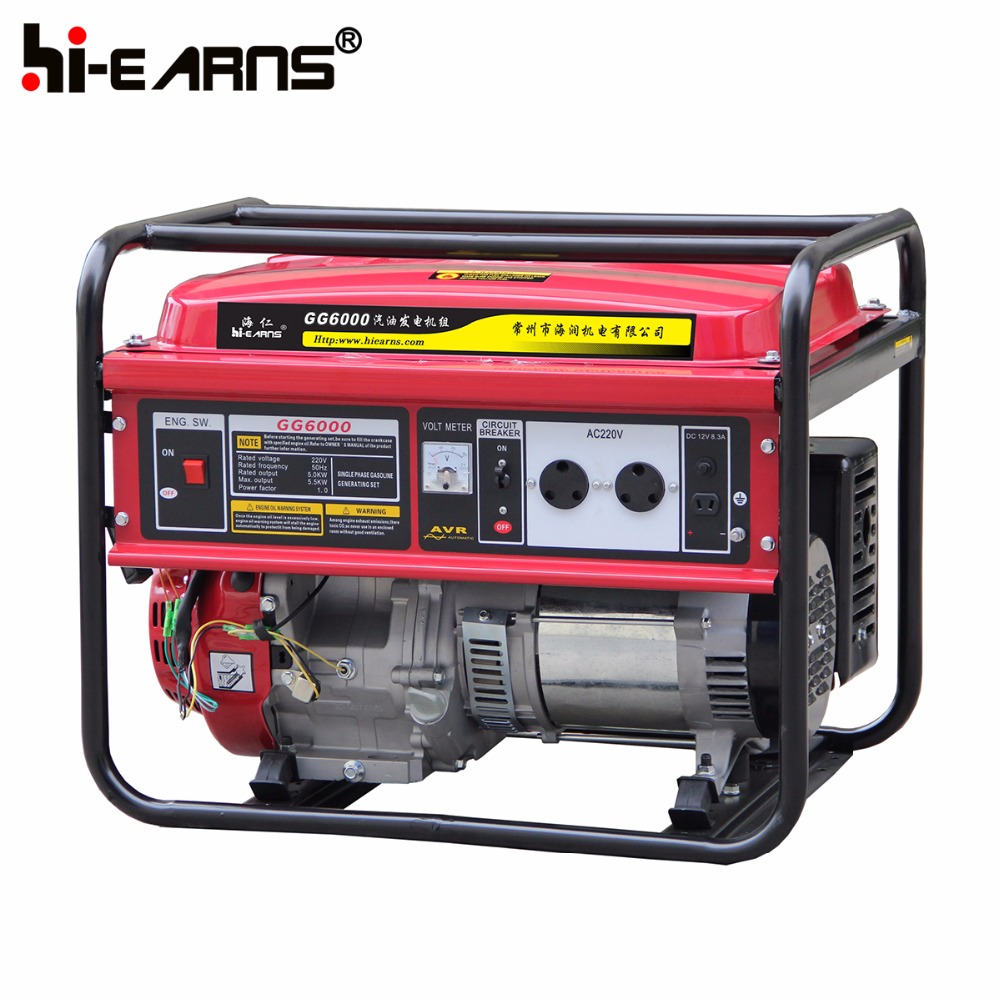

5KW gasoline engine generator GG6000
| GENERATOR | Model | GG6000 | |
| Frequency(HZ) | 50 | 60 | |
| Max. output(kw) | 5.5 | 6 | |
| Rated output(kw) | 5 | 5.5 | |
| Rated. AC voltage(v) | 120, 220, 230, 240 | ||
| Power factor(cosΦ ) | cosΦ =1 | ||
| DC output (v) | 12V/8.3A | ||
| Phase | Single phase | ||
| Alternator type | self-excited, 2-pole, single phase alternator | ||
| Starting system | Recoil or Electric | ||
| Operating noise level(at 7m) | 71 | 73 | |
| Fuel tank capacity(L) | 25 | ||
| Continues work(hr) | 9 | 7.5 | |
| ENGINE | Model | HR390 | |
| Engine type | 4-stroke air-cooled OHV gasoline engine | ||
| Bore× stroke(mm) | 88×64 | ||
| Fuel | Unleaded gasoline | ||
| Lubrication oil volume(L) | 1.1 | ||
| Combustion system | TCI(transister ignition) | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | yes | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
| OPTIONAL FEATURES | DC circuit breaker | optional | |
| Calculagraph | optional | ||
| Wheel and handle | optional | ||
| Current meter | optional | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 680× 510×540 | |
| Net weight(kg) | 80 | ||
| 20FT | 136 | ||
Advantages
1.We are manufactory covering diesel and gasoline engine, diesel generator from
2-500KW, water pump, trash pump, construction machinery like vibrator rammer,
compactor, concrete cutter, power trowel, farm machinery and so on
2.Use famous brand spare parts
3.ISO, CE, GS approved supplier
4.One year warranty, complete spare parts for after-sales services
5.Low price with good quality, reliable performance
6.Easy to start and operate, convenient to move
7.Low fuel consumption, easy maintenance
