Overview
Quick Details
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- DG6000EW
- Rated Voltage:
- 220V
- Rated Current:
- 7.8/9.2A
- Speed:
- 3000rpm/3600rpm
- Frequency:
- 50/60HZ
- Diesel generator:
- Air-cooled diesel generator sets
- Main function:
- Welder
- frequency:
- 50/60HZ
- rated AC voltage:
- 230/240 v
- rated current:
- 7.8/9.2A
- rated output:
- 1.8/2.2kw
- bore*stroke:
- 86*72
- displacement:
- 418cc
Supply Ability
- Supply Ability:
- 100 Piece/Pieces per Day
Packaging & Delivery
- Packaging Details
- plywood pallet with carton
- Port
- FOB SHANGHAI
- Picture Example:
- Lead Time:
Quantity(Pieces) 1 - 100 >100 Est. Time(days) 35 To be negotiated
Video Description
Related Products

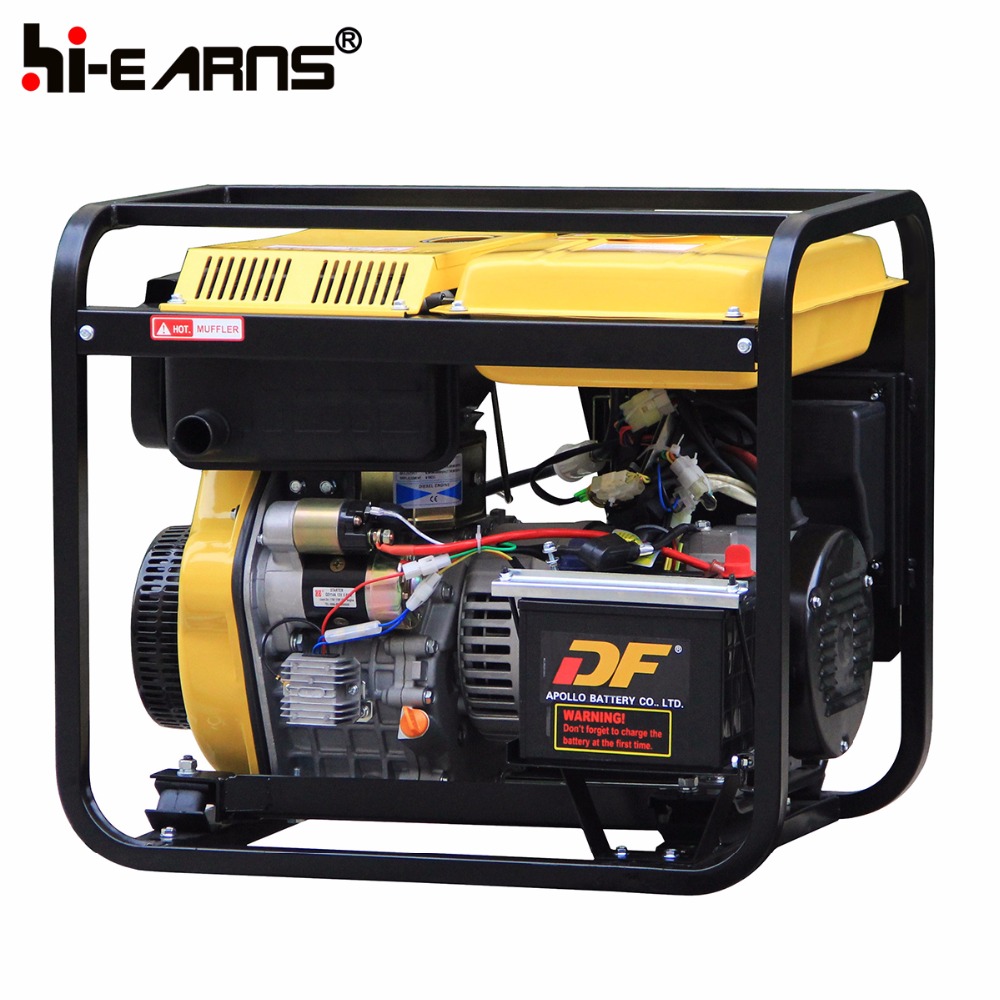

1.8KW single welding generator portable welding machine prices
GENERATOR
| Model | DG6000EW | |
Frequency(HZ) | 50 | 60 | |
Rated.AC voltage(V) | 230 | 240 | |
Rated current(A) | 7.8 | 9.2 | |
Rated output(KVA) | 1.8 | 2.2 | |
Rated speed(rpm) | 3000 | 3600 | |
WELDER | Welding no-load voltage(V) | 55-65 | |
Working voltage(V) | 26-30 | ||
Rated current (A) | 160 | ||
Range of current(A) | 0-180 | ||
Welding efficiency | 60% | ||
Power factor (cosΦ ) | 1 | ||
Phase | 1 | ||
Noise level(at 7m) | 80-85db | ||
ENGINE | Engine model | HR186FA | |
Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
Bore× stroke(mm) | 86×72 | ||
Displacement capacity(cc) | 418 | ||
Fuel | 0# or -10# light diesel fuel | ||
Lubrication oil volume(L) | 1.65 | ||
Combustion system | Direct lnjection | ||
STANDARD FEATURES | Voltmeter | yes | |
AC Output Socket | 2 | ||
AC circuit breaker | yes | ||
Oil warning light | yes | ||
Oil alert | yes | ||
OPTIONAL FEATURES | DC circuit breaker | optional | |
Calculagraph | optional | ||
Big Wheel | optional | ||
Three phase voltage | optional | ||
DIMENSIONS | Dimension(L× W× H)(mm) | 700× 470×600 | |
Net weight(kg) | 120 | ||
20FT | 102 |
