Home > Products > 188FA 12hp 456cc air cooled single cylinder diesel engine

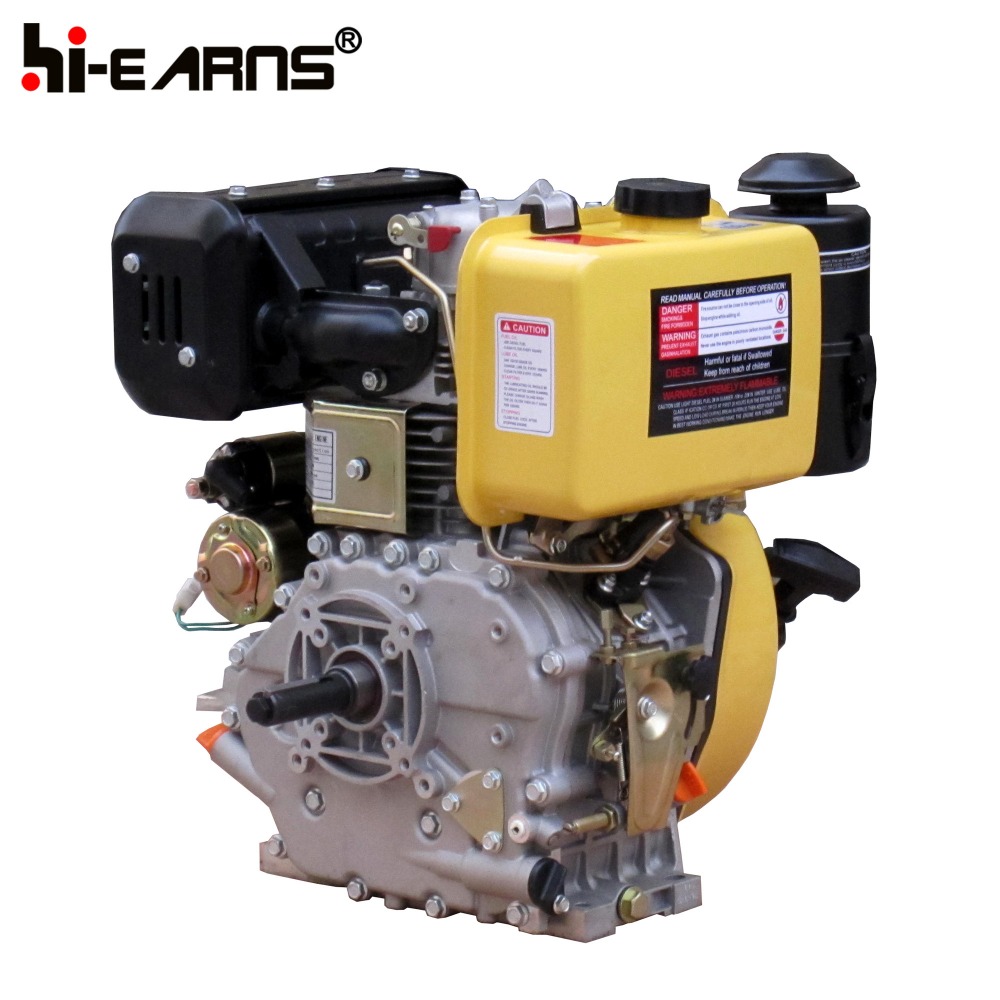

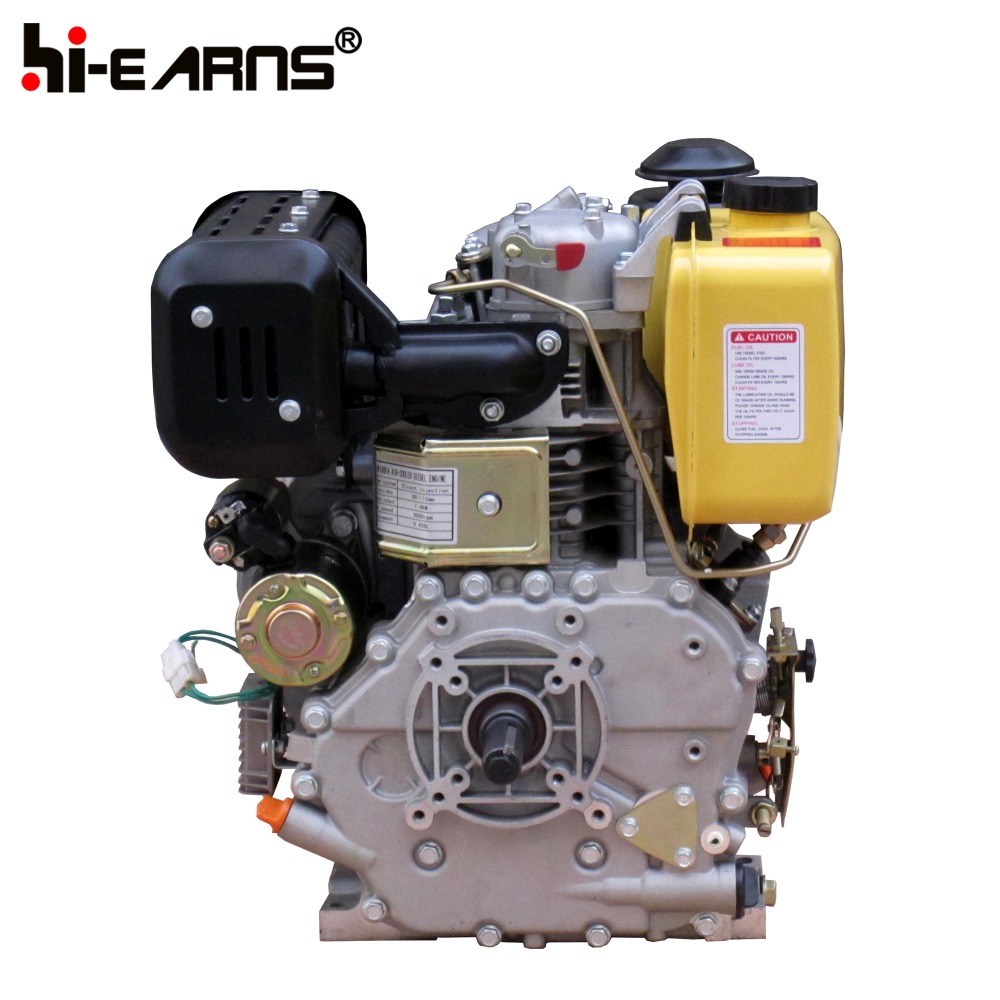

188FA 12hp 456cc air cooled single cylinder diesel engine
Click on the image to view the original image
Product： views：3188FA 12hp 456cc air cooled single cylinder diesel engine
Branch： Hi-earns
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-12-03 18:36
  Negotiated
Product Details
Overview
Quick Details
Applicable Industries:
Hotels, Manufacturing Plant, Farms, Restaurant, Home Use, Retail, Construction works , Energy & Mining
Condition:
New
Stroke:
4 Stroke
Cylinder:
Single Cylinder
Cold Style:
Air-cooled
Start:
Electric start
Place of Origin:
Jiangsu, China
Brand Name:
Hi-earns
Dimension(L*W*H):
520X490X570mm
Weight:
50KGS
Certification:
CE,ISO9001-2000
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Color:
Yellow/Green/White/Green/Red/Orange/Blue
Air filter:
Oil bath
Noise:
Low level
Fuel tank:
Best quality
Fuel pump:
Best quality
Displacement:
456cc
Engine speed:
3000rpm /3600 Rpm
Starting system:
Recoil or electric
Fuel tank capacity:
5.5L
Shaft types:
Keyway shaft
Supply Ability
Supply Ability:
500 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Packaging details:Carton with plastic film
Packaging size(cm):52X49X57
Delivery time: 15 days
One 20FT can load 176 pcs.
One 40HQ can load 384pcs.
Port
shanghai
Video Description
Related Products

HR188FA 12HP air-cooled single-cylinder diesel engine


ModelHR188FA
Bore×stroke(mm)88×75
Displacement(cc)456
Engine speed(rpm)30003600
Max.output(kw)7.58.0
Continuous output(kw )      7.07.5
Power outputCrankshaft or camshaft(Camshaft PTO rpm is 1/2)
Starting systemRecoil or electric
Fuel tank capacity(L)5.5
Rube oil capacity(L)1.65
Dimension(mm)520×490×570
Net weight(kg)48/50
Product Description

Field of Application

♦ Our products are widely used in various fields, such as generators,water pumps, rotavator,concrete cutter,plate compactor,high pressure washer

Care & Maintenance

About Us

Exhibition

♦ We attend exhibitions domestic and overseas. Rich activities to improve work enthusiasm.

♦ ISO, CE Certificates. We have been making good progress.
