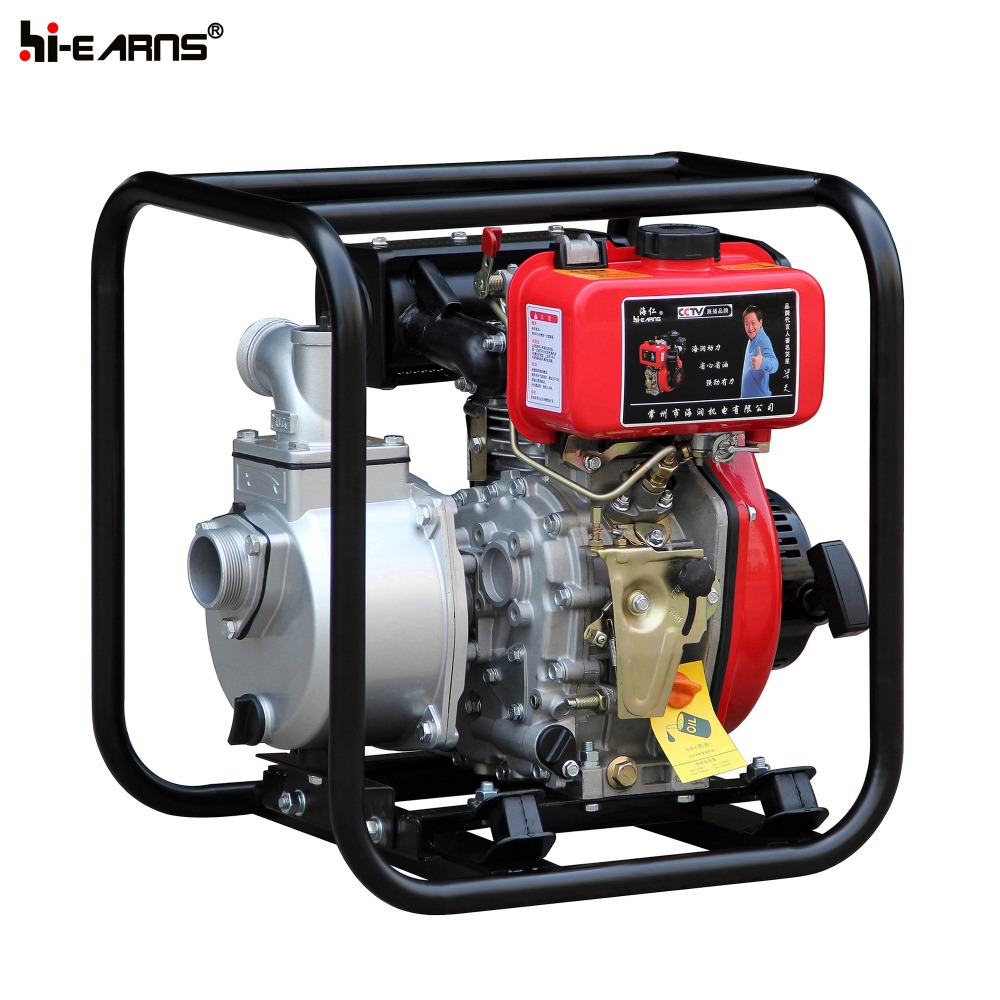

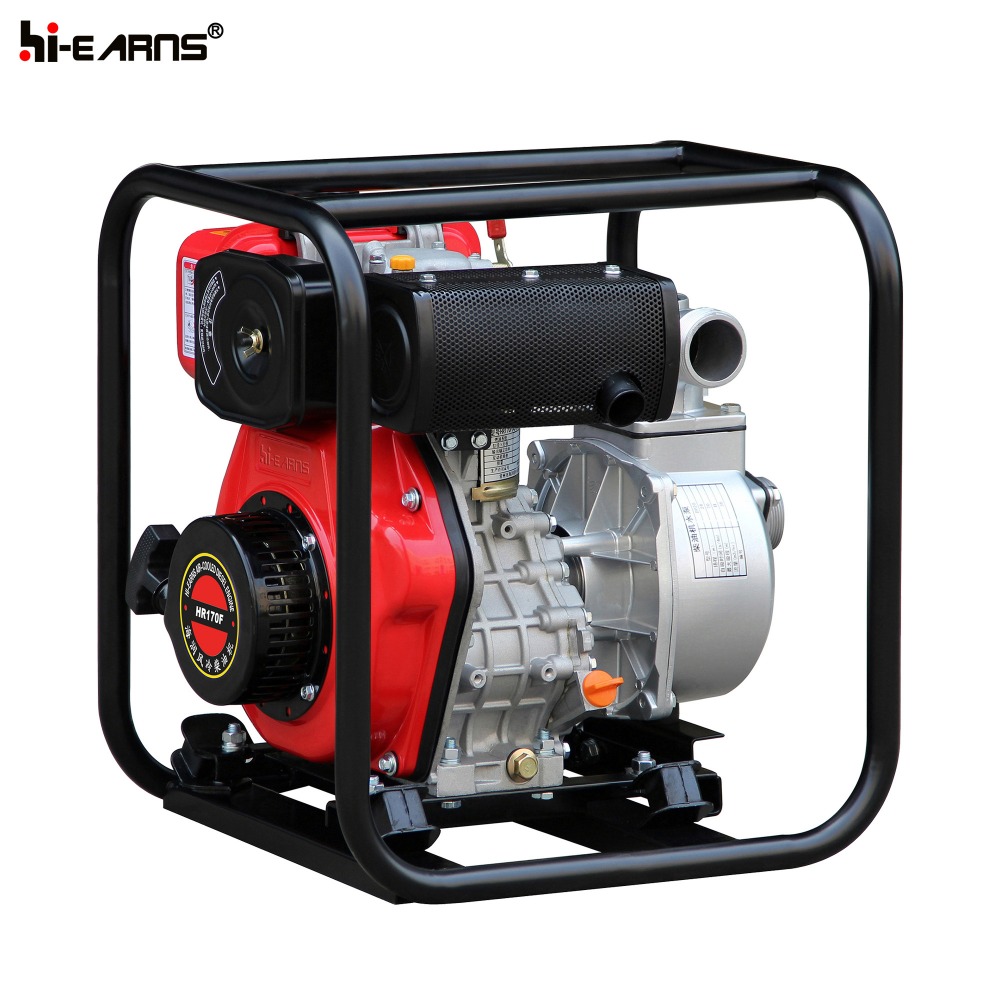

2 inch small fuel tank diesel irrigation water pump
♦ DP20 model: With 4 HP HR170F air-cooled diesel engine, Ensure a big flow and self-priming type;
♦ Recoil or Electric start are optional ensure easy start!
Related Products
| WATER PUMP | Model | DP20 | |
| Suction,discharge port diameter[mm(in)] | 50(2"") | ||
| Cont.head(m) | 26 | ||
| Self-priming time(s/4m) | 70 | ||
| Max suction head(m) | 8 | ||
| Cont.capacity(m³/hr) | 36 | ||
| ENGINE | Engine model | HR170F | |
| Speed(rpm) | 3600 | ||
| Type | Single-cylinder,vertical,4-stroke air-cooled diesel engine | ||
Displacement(cc) | 211 | ||
Bore*stroke(mm) | 70*55 | ||
Starting system | Electric | ||
| Fuel tank capacity(L) | 5.5 | ||
| STANDARD FEATURES | Oil alert | yes | |
| Connector of infall,Connecto of outfall | yes | ||
| Filter | yes | ||
| Seal ring | yes | ||
| Hoop | yes | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 495×410×520 | |
| Net weight(kg) | 38 | ||
