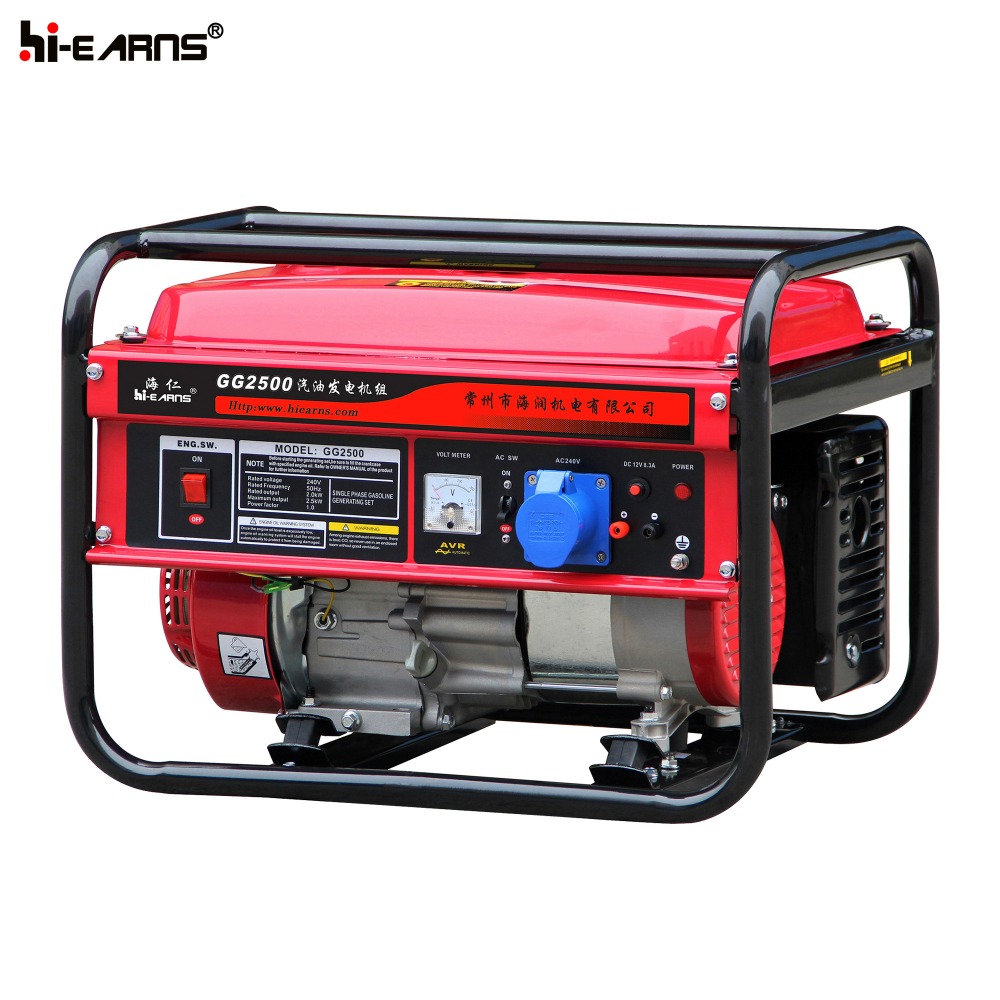

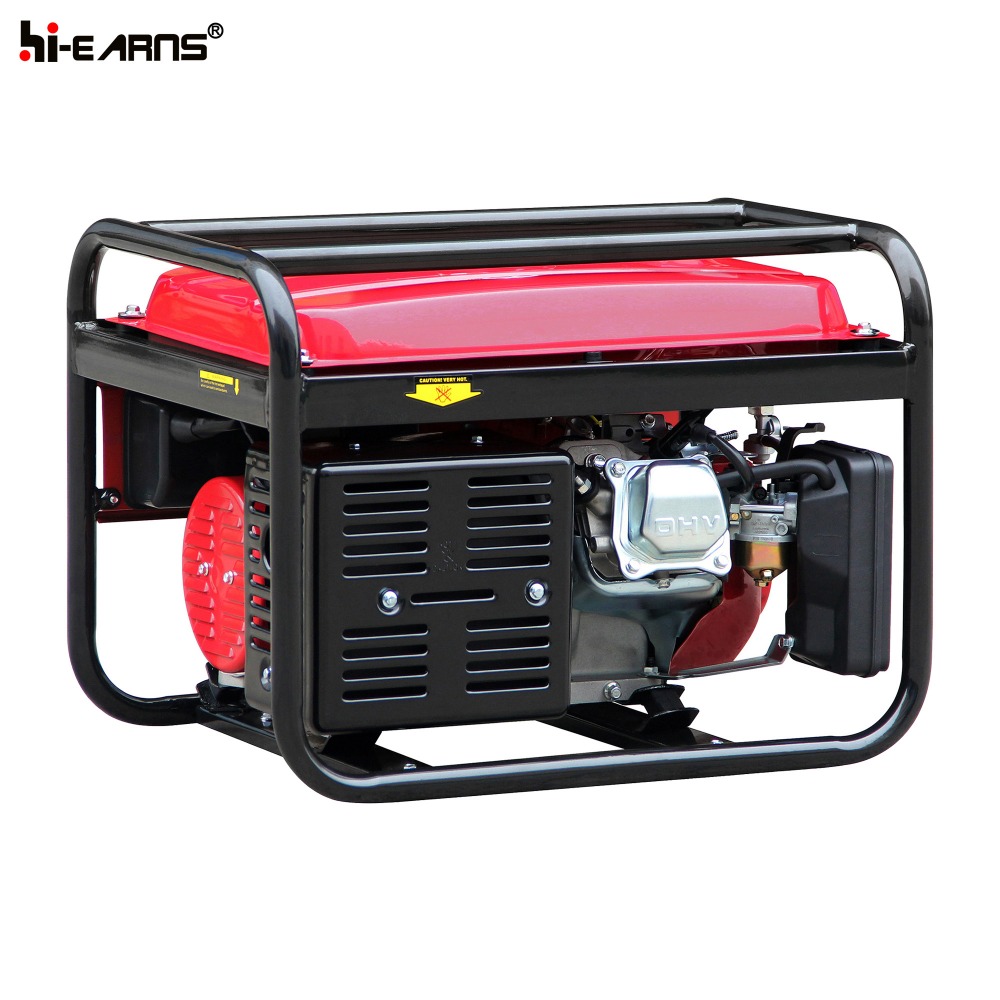

2KW small portable Gasoline engine generator
| GENERATOR | Model | GG2500 | |
| Frequency(HZ) | 50 | 60 | |
| Max. output(kw) | 2.2 | 2.5 | |
| Rated output(kw) | 2 | 2.2 | |
| Rated. AC voltage(v) | 120, 220, 230, 240 | ||
| Power factor(cosΦ ) | cosΦ =1 | ||
| DC output (v) | 12V/8.3A | ||
| Phase | Single phase | ||
| Alternator type | self-excited, 2-pole, single phase alternator | ||
| Starting system | Recoil or Electric | ||
| Operating noise level(at 7m) | 65 | 69 | |
| Fuel tank capacity(L) | 15 | ||
| Continues work(hr) | 13 | 11 | |
| ENGINE | Model | HR160 | |
| Engine type | 4-stroke air-cooled OHV gasoline engine | ||
| Bore× stroke(mm) | 68×45 | ||
| Fuel | Unleaded gasoline | ||
| Lubrication oil volume(L) | 0.6 | ||
| Combustion system | TCI(transister ignition) | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | yes | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
| OPTIONAL FEATURES | DC circuit breaker | optional | |
| Calculagraph | optional | ||
| Wheel and handle | no | ||
| Current meter | optional | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 590× 425×435 | |
| Net weight(kg) | 41 | ||
| 20FT | 230 | ||
♦ We are professional manufacture of air-cooled diesel engine(3-20HP), diesel generator sets(2-1000KW), diesel water pump(1.5-6Inch), small construction machines and so on.
♦ Morden and beautiful factory of Changzhou Hi-earns, warmly welcome YOU from all over the world have a visit to us! (Only 2 hours drive from Shanghai!)
♦ We attended every Canton Fair and some oversea Exhibition!
♦ ISO, CE, GS, ROHS certification for all over the world customer.
♦ From the engine to generator, we all use 7 layer corrugated carton packing, plywood pallet, Ensure a portable and safety transport!
♦ With all the advantages described above, so we DARE to supply 1 year warranty!
♦ Low price spare parts provided beyond warranty period.
