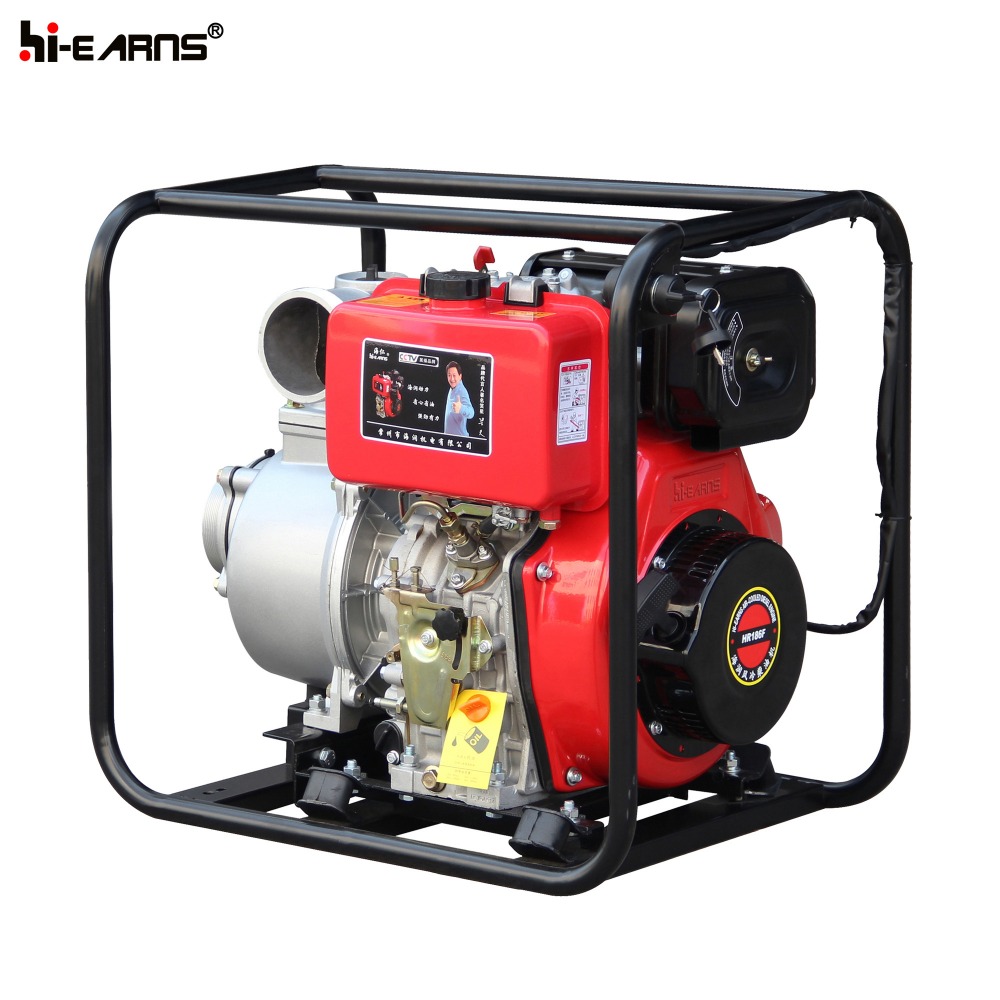

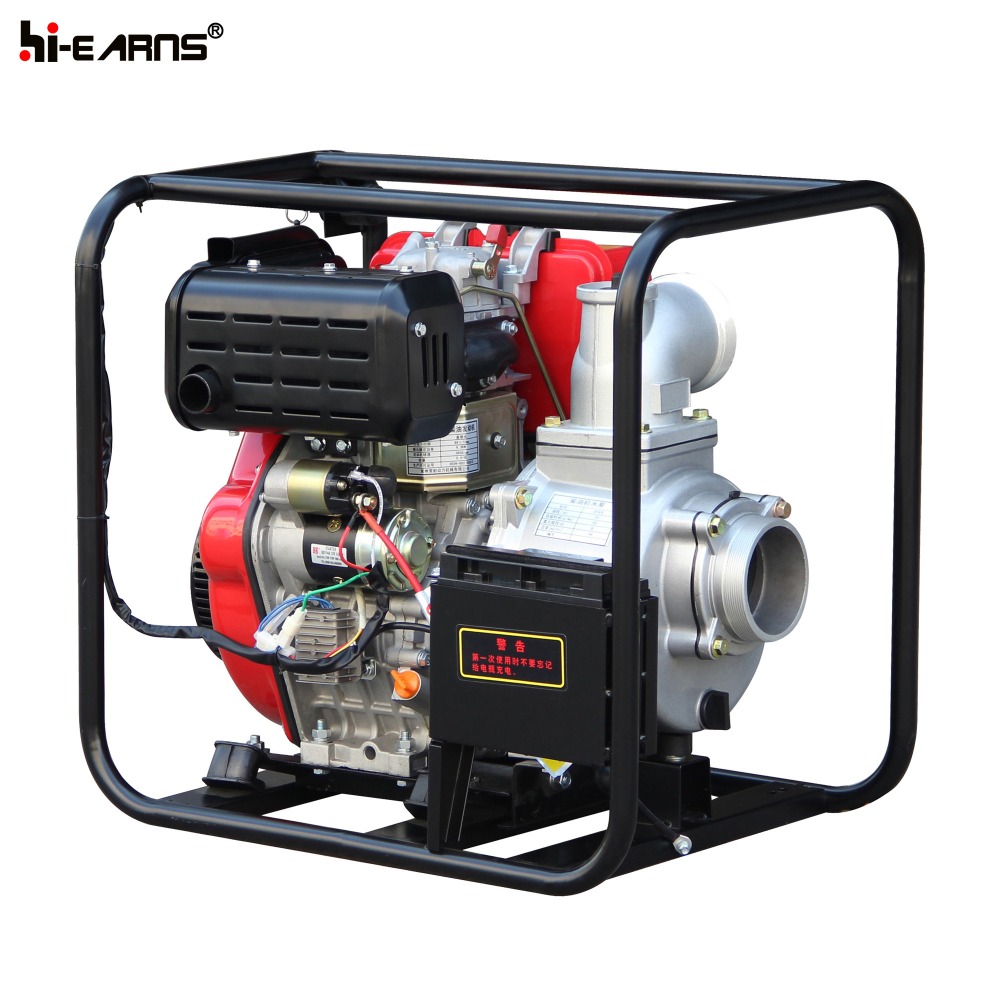

4 inch irrigation diesel pump
♦ DP40 model: With 10 HP HR186FA air-cooled diesel engine, Ensure a big flow and self-priming type;
♦ Recoil and Electric start are optional ensure easy start!
| WATER PUMP | Model | DP40 | |
| Suction,discharge port diameter[mm(in)] | 100(4"") | ||
| Cont.head(m) | 31 | ||
| Self-priming time(s/4m) | 180 | ||
| Max suction head(m) | 8 | ||
| Cont.capacity(m³/hr) | 96 | ||
| ENGINE | Engine model | HR186FA | |
| Speed(rpm) | 3600 | ||
| Fuel consumption(g/kw.h) | 280 | ||
| Type | Single-cylinder,vertical,4-stroke air-cooled diesel engine | ||
Displacement(cc) | 418 | ||
Bore*stroke(mm) | 86*72 | ||
Starting system | Recoil or Electric | ||
| Fuel tank capacity(L) | 5.5 | ||
| STANDARD FEATURES | Oil alert | yes | |
| Connector of infall,Connecto of outfall | yes | ||
| Filter | yes | ||
| Seal ring | yes | ||
| Hoop | yes | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 645×475×605 | |
| Net weight(kg) | 69 | ||
| 20FT | 99 | ||
♦ Strict and Accurate incoming raw material quality control systemd(IQC), ensure the engine running in the best condition.
♦ Modern Production Workshop, stict producing process, ensure a fast and high-quality products output;
♦ Flow card ro record each details carefully;
♦ From the engine to generator, we all use 7 layer corrugated carton packing, plywood pallet, Ensure a portable and safety transport!
♦ We are professional manufacture of air-cooled diesel engine(3-20HP), diesel generator sets(2-1000KW), diesel water pump(1.5-6Inch), small construction machines and so on.
♦ Morden and beautiful factory of Changzhou Hi-earns, warmly welcome YOU from all over the world have a visit to us! (Only 2 hours drive from Shanghai!)
♦ We attended every Canton Fair and some oversea Exhibition!
♦ ISO, CE, GS, ROHS certification for all over the world customer.
♦ With all the advantages described above, so we DARE to supply 1 year warranty!
♦ Low price spare parts provided beyond warranty period.
