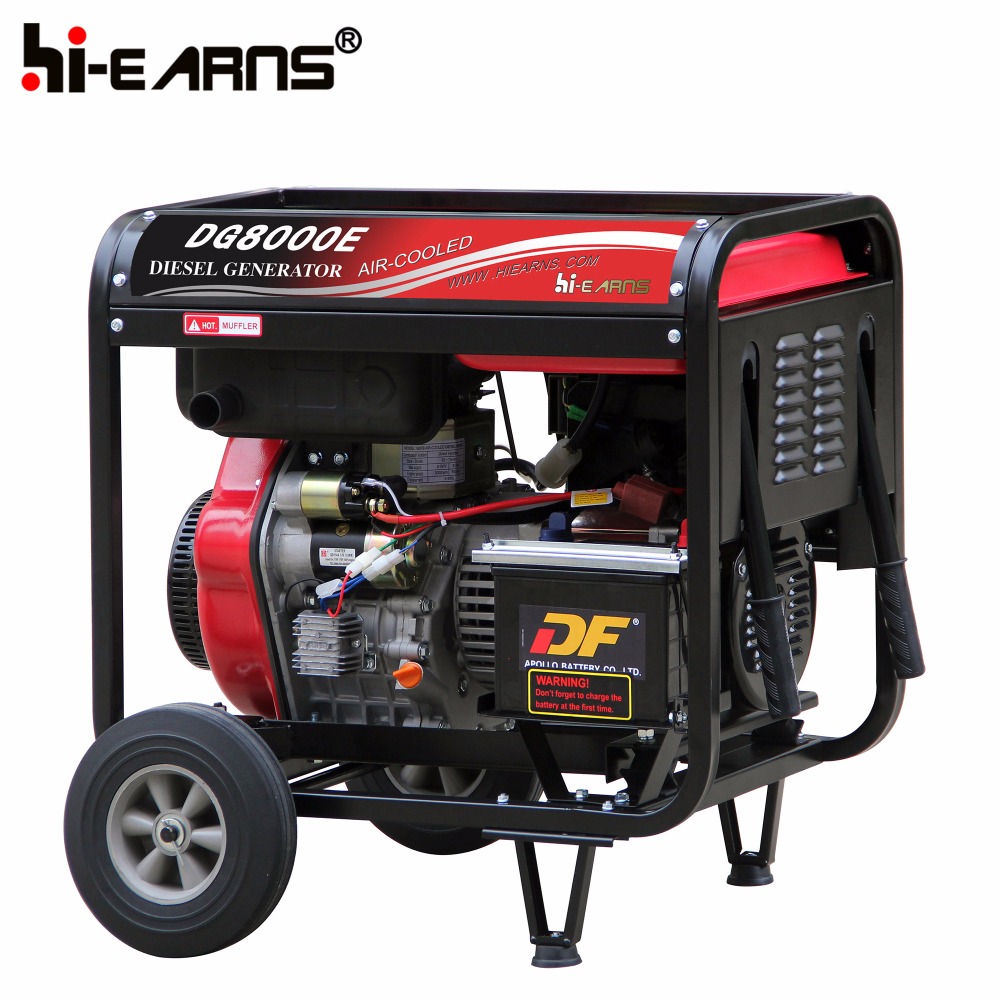

5.5KVA three phase open magnetic electric generator price
GENERATOR | Model | DG8000E | |
Frequency (HZ) | 50 | 60 | |
Max. output (KW) | 6 | 6.5 | |
Rated output (KW) | 5.5 | 6 | |
Rated. AC voltage (V) | 120, 220, 230, 240 | ||
Power factor (cosΦ) | cosΦ=1 | ||
DC output (V) | 12V/8.3A | ||
Phase | Single phase | ||
Alternator type | self-excited, 2-pole, single phase alternator | ||
Starting system | Electric | ||
Operating noise level (at 7m) | 80~85 | ||
Fuel tank capacity (L) | 12.5 | ||
Continues work (H) | 6.5 | 6 | |
ENGINE | Model | HR188FA | |
Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
Bore×stroke (mm) | 88×75 | ||
Fuel | 0# or -10# light diesel fuel | ||
Lubrication oil volume (L) | 1.65 | ||
Combustion system | Direct lnjection | ||
STANDARD FEATURES | Voltmeter | yes | |
AC Output Socket | 2 | ||
AC circuit breaker | yes | ||
Oil warning light | yes | ||
Oil alert | yes | ||
OPTIONAL FEATURES | DC circuit breaker | optional | |
Calculagraph | optional | ||
Big Wheel | optional | ||
Three phase voltage | optional | ||
Current meter | optional | ||
ATS | optional | ||
Remote control | optional | ||
Welding | optional | ||
DIMENSIONS | Dimension (L×W×H) (mm) | 740×500×640 | |
Net weight (kg) | 104 | ||
20FT | 102 | ||
