Overview
Quick Details
- Applicable Industries:
- Hotels, Manufacturing Plant, Farms, Restaurant, Home Use, Retail, Construction works , Energy & Mining
- Condition:
- New
- Stroke:
- 4 Stroke
- Cylinder:
- Single Cylinder
- Cold Style:
- Air-cooled
- Start:
- Recoil start/ electric
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Dimension(L*W*H):
- 520*490*570mm
- Weight:
- 48/50kg
- Certification:
- CE/ISO9001
- Warranty:
- One years
- After-sales Service Provided:
- Engineers available to service machinery overseas
- color:
- Yellow/Green/White/Green/Red/Orange/Blue
- BoreXstroke:
- 86mmX72mm
- Displacement:
- 418cc
- Engine speed:
- 3000/3600rpm
- Max.output(KW):
- 6.5/7.1
- Continuous output(KW):
- 5.9/6.5
- Fuel tank capacity (L):
- 5.5
- Lube oil capacity(L):
- 1.65
- Dimension(mm):
- 520X490X570
- Net weight(kg):
- 48/50
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 52X49X57 cm
- Single gross weight:
- 50.0 kg
- Package Type:
- Carton with plastic film and plywood pallets
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 10 11 - 50 >50 Est. Time(days) 7 15 To be negotiated
Related Products

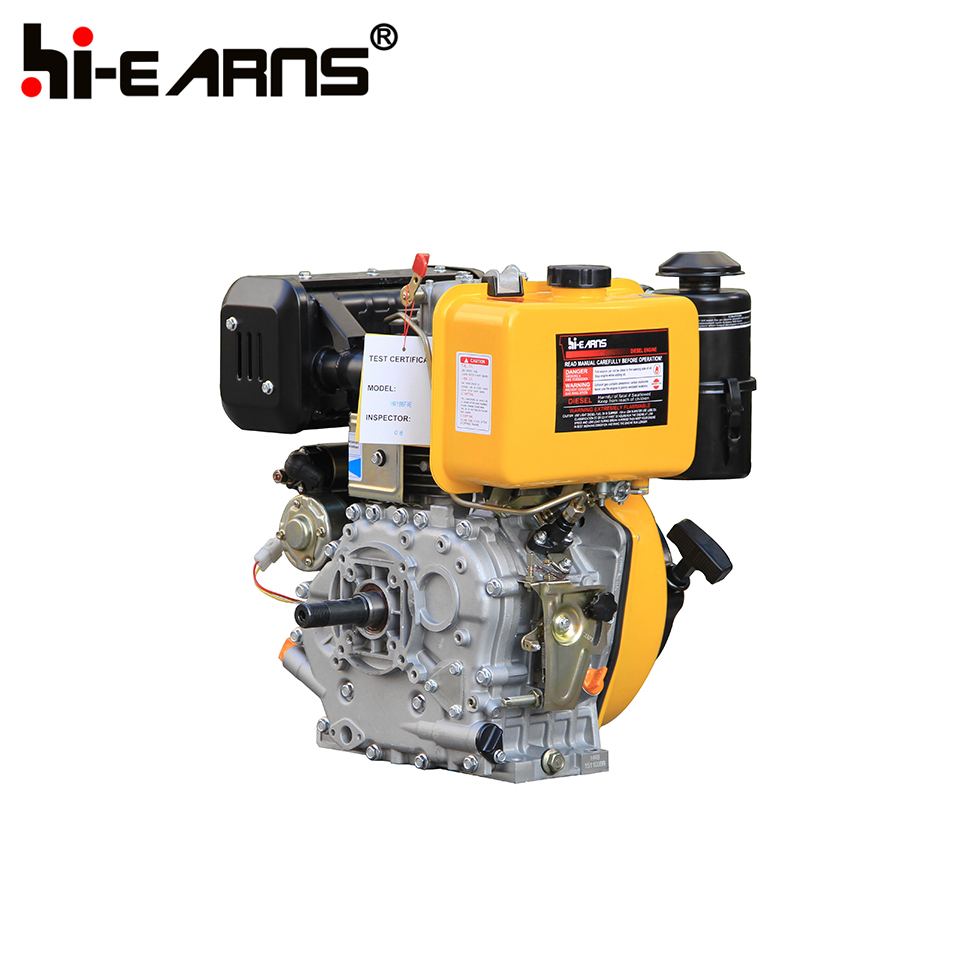

HR186FAE 10hp thread shaft air cooled diesel engine price
Model | HR186FAE | |
| Type | Single-cylinder,vertical,4-stroke air-cooled diesel engine | |
| Combustion System | Direct Injection | |
| Bore×Stroke (mm) | 86×72 | |
| Displacement capacity (cc) | 418 | |
| Speed (rpm) | 3000 | 3600 |
| Max.output (kw) | 6.5 | 7.1 |
| Rated output(kw) | 5.9 | 6.5 |
| Fuel | o# or-10# light diesel oil | |
| Fuel oil tank volume (L) | 5.5 | |
| Lubricatiom oil volume (L) | 1.65 | |
| Fuel oil consumption rate(g/kw.h) | 280 | |
| Starting system | Electric | |
| PTO rotation direction | It is clockwise as viewing from the flywheel end | |
| Dimension (mm) | 520x490x570 | |
| Gross weight (kg) | 48 | |
| 20FT QTY | 176 | |
Product Description
Field of Application
♦ Our products are widely used in various fields, such as generators,water pumps, rotavator,concrete cutter,plate compactor,high pressure washer
