Click on the image to view the original image
- Place of Origin:
- China
- Brand Name:
- Hi-earns or OEM
- Model Number:
- DG6500SE-N
- Rated Voltage:
- 220V
- Rated Current:
- 19.09A
- Speed:
- 3000/3600RPM
- Frequency:
- 50/60HZ
- Diesel generator:
- 5kva stirling engine mini generator loncin generator
- power output:
- 4.2/4.6KW
- alternator:
- 100% copper
- super silent:
- 65ab at 7m
- color:
- optional, depend on you
- Product Name:
- 5kva stirling engine mini generator loncin generator
- Type:
- Slient
- Alternator:
- 100% copper
- Certificate:
- CE/ISO9001
- Engine:
- 186FAE
- Supply Ability:
- 120 Piece/Pieces per Day
- Packaging Details
- carton with wooden pallet
- Port
- SHANGHAI or CIF destination port
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 5 6 - 20 >20 Est. Time(days) 7 12 To be negotiated

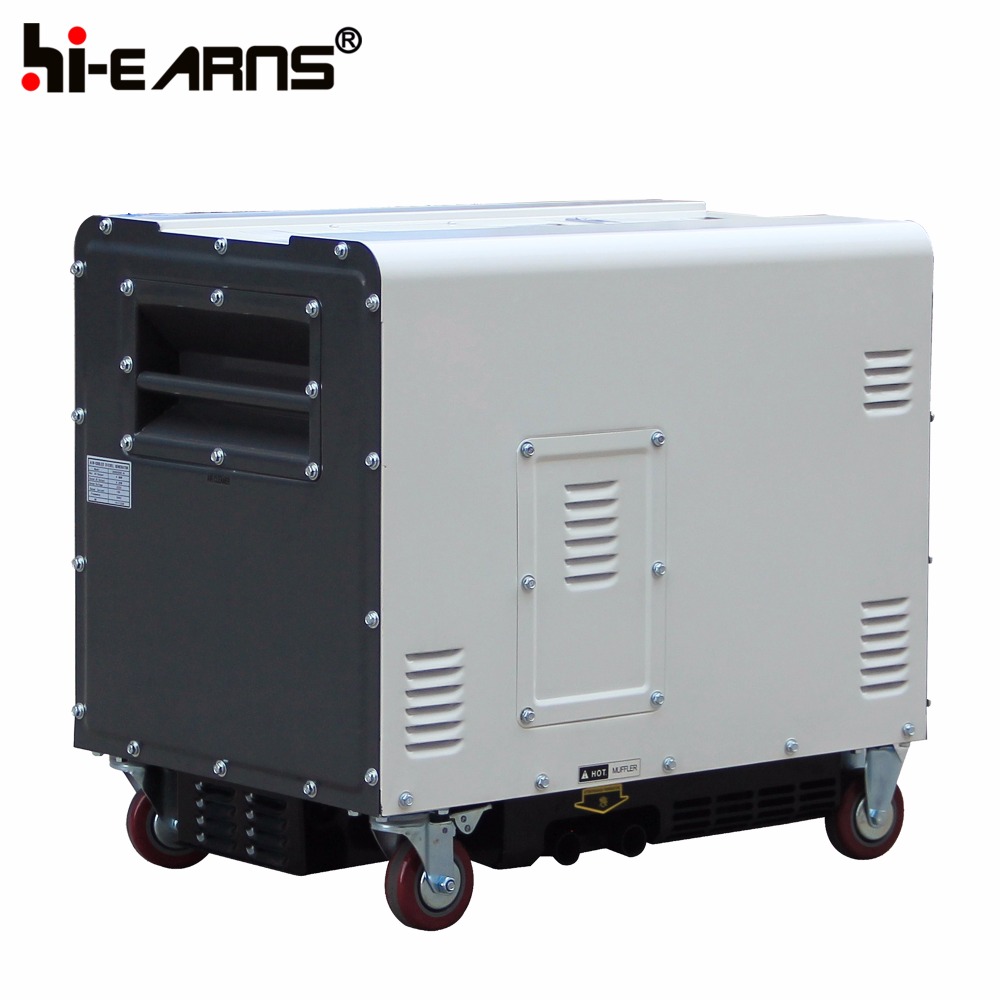

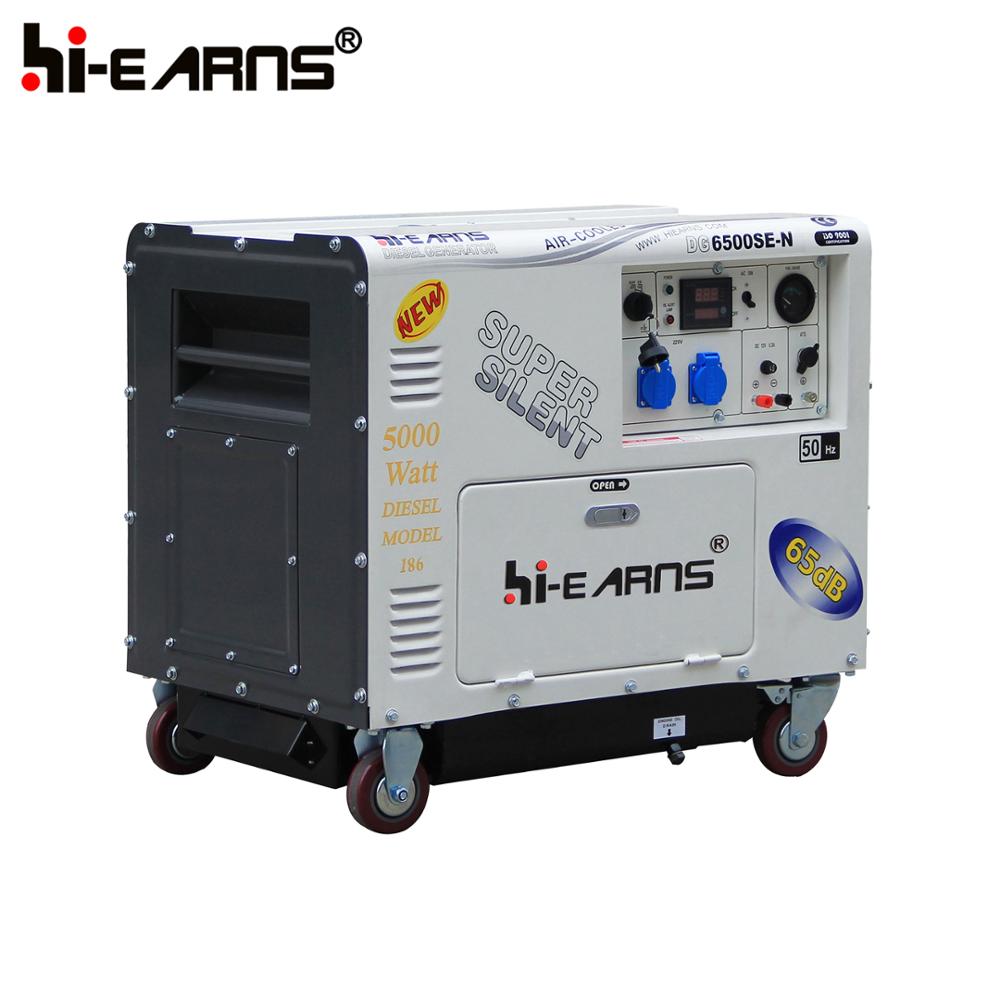

5kva stirling engine mini generator loncin generator
♦ Use good brand spare parts, unique design canopy
♦ Portable type, with four wheels and brake, easy to move,100% copper alternator
♦ We are factory, have low price spare parts and timely technical support
GENERATOR | Model | DG6500SE-N | |
Frequency (HZ) | 50 | 60 | |
Max. Output (KW) | 4.6 | 5 | |
Rated output (KW) | 4.2 | 4.6 | |
Rated. AC voltage (V) | 120, 220, 230, 240 | ||
Power factor (cosΦ ) | cosΦ =1 | ||
DC output (V) | 12V/8.3A | ||
Phase | Single phase | ||
Alternator type | self-excited, 2-pole, single phase alternator | ||
Starting system | Electric | ||
Operating noise level (at 7m) | 65 | ||
Fuel tank capacity (L) | 12.5 | ||
Continues work (H) | 9.3 | 8.5 | |
ENGINE | Model | HR186FA | |
Engine type | Single- cylinder, vertical, 4-stroke air-cooled diesel engine | ||
Bore× stroke (mm) | 86×72 | ||
Fuel | 0# or -10# light diesel fuel | ||
Lubrication oil volume (L) | 1.65 | ||
Combustion system | Direct lnjection | ||
STANDARD FEATURES | Voltmeter | yes | |
AC Output Socket | 2 | ||
AC circuit breaker | yes | ||
Oil warning light | yes | ||
Oil alert | yes | ||
OPTIONAL FEATURES | DC circuit breaker | optional | |
Calculagraph | optional | ||
Big Wheel | optional | ||
Three phase voltage | optional | ||
Current meter | optional | ||
ATS | optional | ||
Remote control | optional | ||
DIMENSIONS | Dimension (L× W× H)(mm) | 820×560×780 | |
Net weight(kg) | 163 | ||
20FT | 80 | ||
