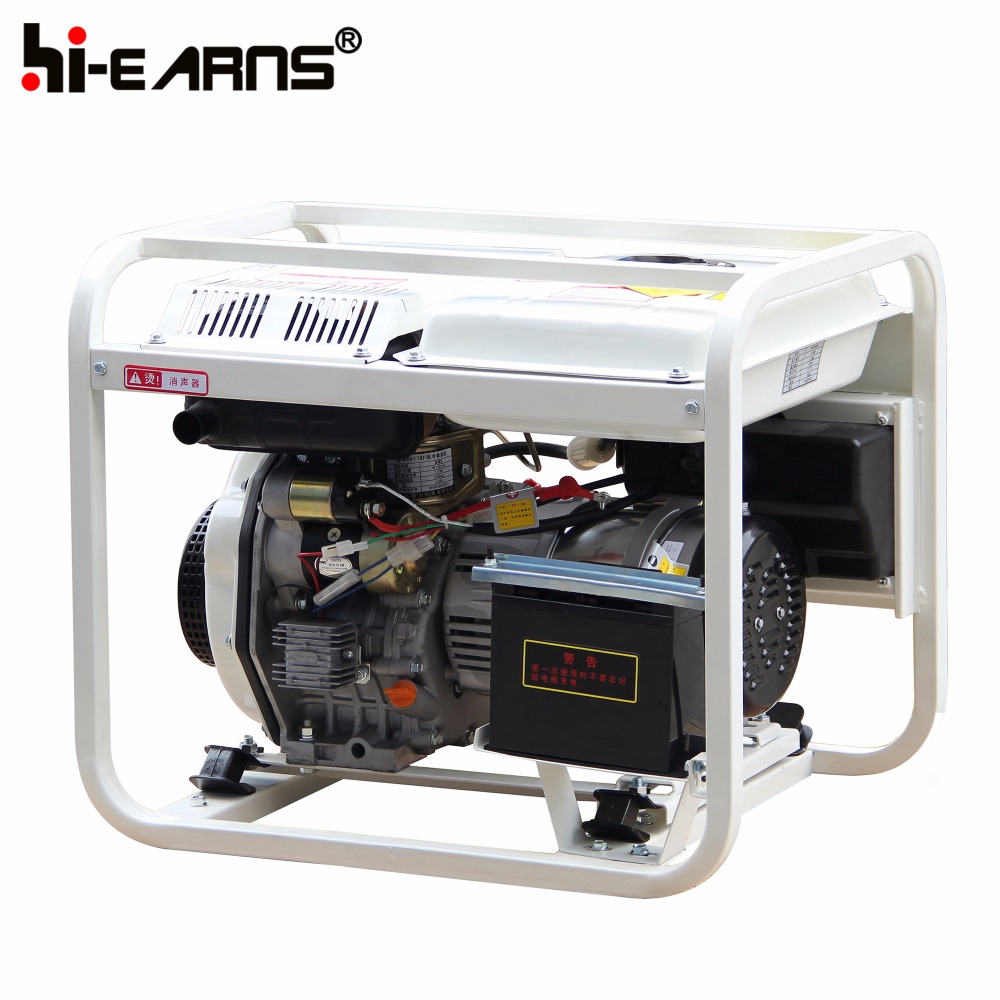

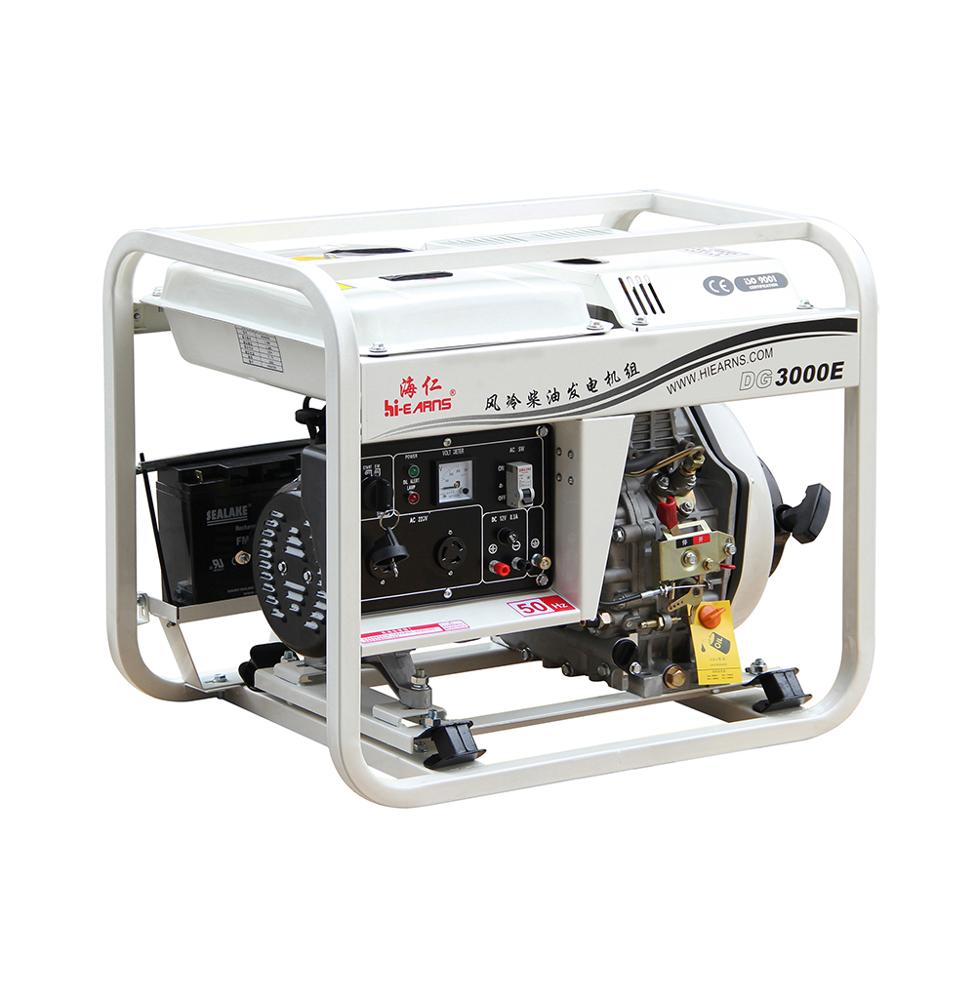

3KVA ozone generator alternator generator price list turbine generator
♦ Use good brand spare parts
♦ Portable type, easy to move
♦ We are factory, have low price spare parts and timely technical support
GENERATOR | Model | DG3000 | |
Frequency (HZ) | 50 | 60 | |
Max. output (KW) | 3 | 3.3 | |
Rated output (KW) | 2.8 | 3 | |
Rated. AC voltage (V) | 120, 220, 230, 240 | ||
Power factor (cosΦ) | cosΦ=1 | ||
DC output (V) | 12V/8.3A | ||
Phase | Single phase | ||
Alternator type | self-excited, 2-pole, single phase alternator | ||
Starting system | Recoil or Electric | ||
Operating noise level (at 7m) | 80~85 | ||
Fuel tank capacity (L) | 12.5 | ||
Continues work (H) | 9.7 | 9 | |
ENGINE | Model | HR178F | |
Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
Bore×stroke (mm) | 78×62 | ||
Fuel | 0# or -10# light diesel fuel | ||
Lubrication oil volume (L) | 1.1 | ||
Combustion system | Direct lnjection | ||
STANDARD FEATURES | Voltmeter | yes | |
AC output socket | 2 | ||
AC circuit breaker | yes | ||
Oil warning light | yes | ||
Oil alert | yes | ||
OPTIONAL FEATURES | DC circuit breaker | optional | |
Calculagraph | optional | ||
Big wheel | optional | ||
Three phase voltage | optional | ||
Current meter | optional | ||
ATS | optional | ||
Remote control | optional | ||
Welding | no | ||
DIMENSIONS | Dimension (L×W×H) (mm) | 700×480×590 | |
Net weight (kg) | 64 | ||
20FT | 130 | ||
♦ Our products are widely used in various fields, such as construction site,supermarket,hotel,server room,hospital,animal husbandry,fishery,camping
♦ We attend exhibitions domestic and overseas. Rich activities to improve work enthusiasm.
♦ ISO, CE Certificates. We have been making good progress.
