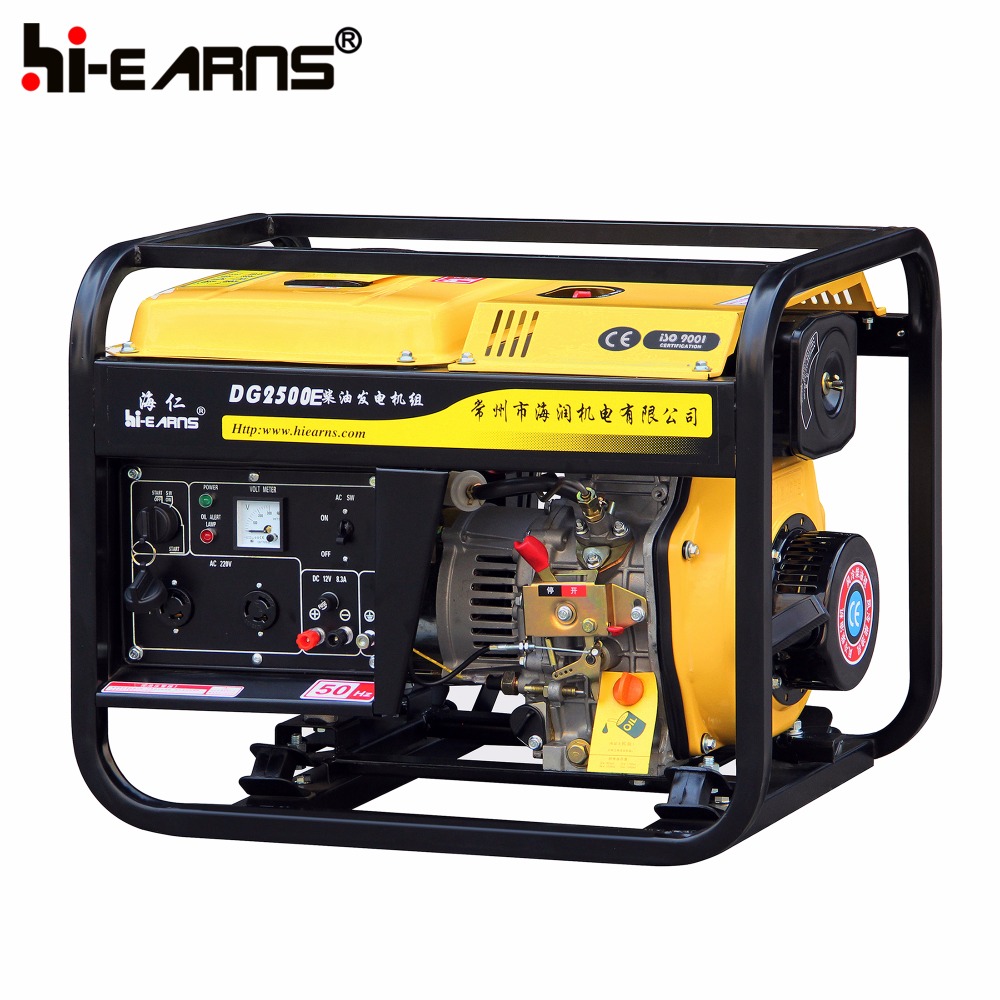

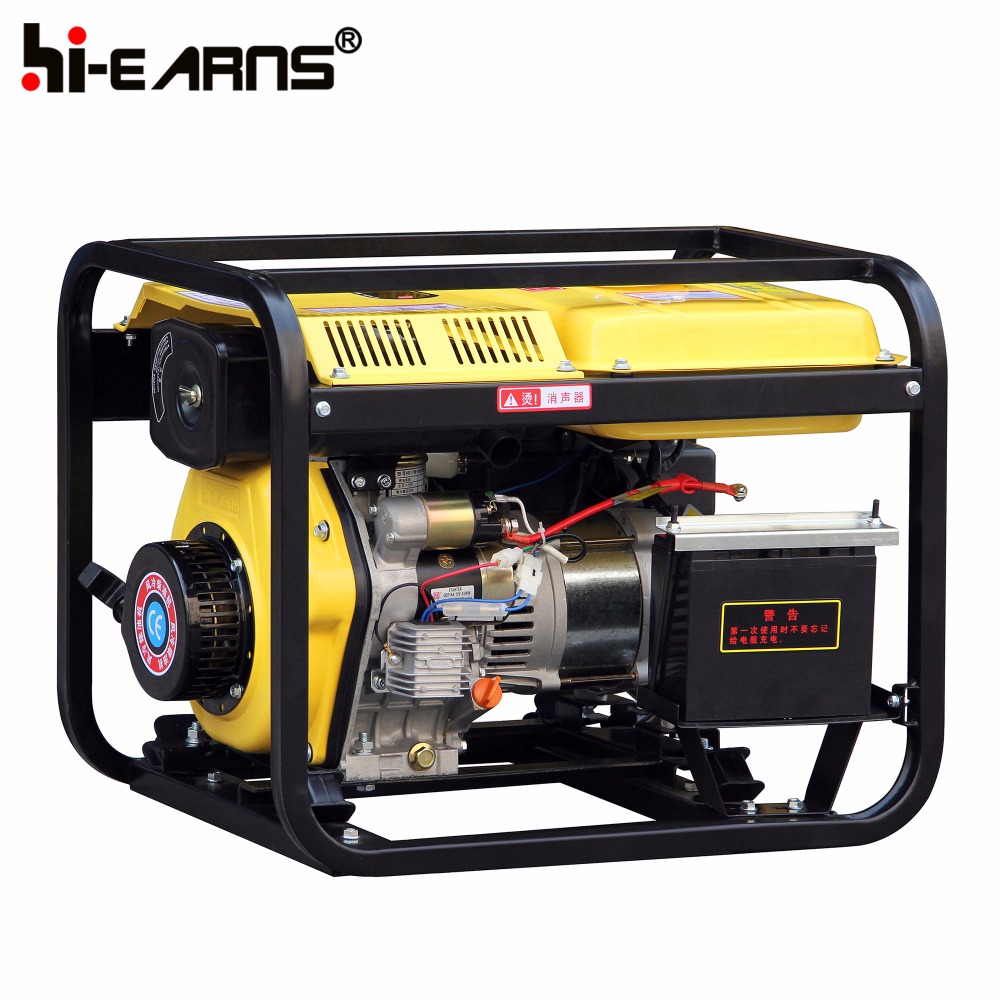

2KVA price mini hydro generator thermoelectric generator
♦ Use good brand spare parts
♦ Portable type, easy to move
♦ We are factory, have low price spare parts and timely technical support.
GENERATOR | Model | DG2500 | |
Frequency(HZ) | 50 | 60 | |
Max. output(kw) | 2 | 2.2 | |
Rated output(kw) | 1.8 | 2 | |
Rated. AC voltage(v) | 120, 220, 230, 240 | ||
Power factor(cosΦ ) | cosΦ =1 | ||
DC output (v) | 12V/8.3A | ||
Phase | Single phase | ||
Alternator type | self-excited, 2-pole, single phase alternator | ||
Starting system | Electric | ||
Operating noise level(at 7m) | 80~85 | ||
Fuel tank capacity(L) | 12.5 | ||
Continues work(hr) | 17 | 14.5 | |
ENGINE | Model | HR170F | |
Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
Bore× stroke(mm) | 70×55 | ||
Fuel | 0# or -10# light diesel fuel | ||
Lubrication oil volume(L) | 0.75 | ||
Combustion system | Direct lnjection | ||
STANDARD FEATURES | Voltmeter | yes | |
AC Output Socket | 2 | ||
AC circuit breaker | yes | ||
Oil warning light | yes | ||
Oil alert | yes | ||
OPTIONAL FEATURES | DC circuit breaker | optional | |
Calculagraph | optional | ||
Big Wheel | optional | ||
Three phase voltage | optional | ||
Current meter | optional | ||
ATS | optional | ||
Remote control | optional | ||
Welding | optional | ||
DIMENSIONS | Dimension(L× W× H)(mm) | 670× 480× 550 | |
Net weight(kg) | 63 | ||
20FT | 150 | ||
♦ Our products are widely used in various fields, such as construction site,supermarket,hotel,server room,hospital,animal husbandry,fishery,camping
♦ We attend exhibitions domestic and overseas. Rich activities to improve work enthusiasm.
♦ ISO, CE Certificates. We have been making good progress.
