Overview
Quick Details
- Applicable Industries:
- Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Retail, Construction works
- Condition:
- New
- Stroke:
- 4 Stroke
- Cylinder:
- Single Cylinder
- Cold Style:
- Air-cooled
- Start:
- Recoil and electric
- Place of Origin:
- China
- Brand Name:
- Hi-earns
- Dimension(L*W*H):
- 520*490*570mm
- Weight:
- 48kg
- Certification:
- CE/ISO9001
- Warranty:
- one year
- After-sales Service Provided:
- Engineers available to service machinery overseas
- Air filter:
- Oil bath
- Color:
- Yellow/Green/White/Green/Red/Orange/Blue
- Silencer:
- Low noise
- Fuel tank Best quality:
- Best quality
- Fuel pump:
- Best quality
- Displacement:
- 498cc
- Engine speed:
- 3000/3600rpm
- Fuel tank capacity:
- 5.5L
- Lube oil capacity:
- 1.65L
- Shaft types:
- Keyway shaft
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 52X49X57 cm
- Single gross weight:
- 50.0 kg
- Package Type:
- Carton with plastic film

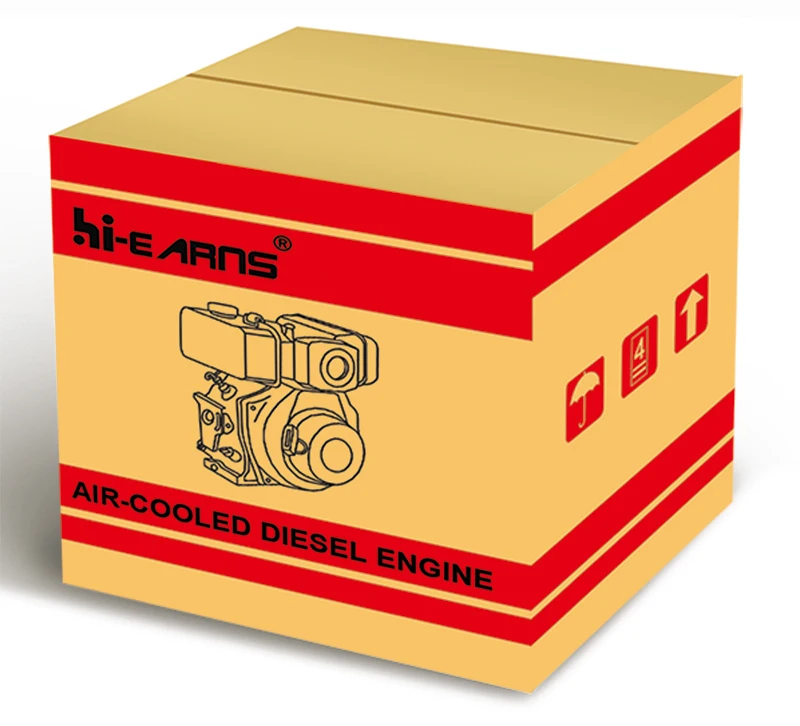

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Set) 1 - 1 2 - 10 11 - 50 >50 Est. Time(days) 5 7 15 To be negotiated
Related Products
4hp 6hp 10hp 12hp 14hp 16hp air cooled single cylinder diesel engine
| Model | HR170F | HR178F | HR186FA | HR192F | ||||
| Bore x stroke (mm) | 70x55 | 70x62 | 86x72 | 92x75 | ||||
| Displacement (cc) | 211 | 296 | 418 | 456 | ||||
| Engine speed (rpm) | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 |
| Max.output(hp) | 4 | 6 | 10 | 14 | ||||
| Max.output(KW) | 2.8 | 3.0 | 4.1 | 4.4 | 6.5 | 7.1 | 8.8 | 9.3 |
| Continuous output(KW) |
2.5 | 2.8 | 3.7 | 4.0 | 5.9 | 6.5 | 8.0 | 8.5 |
| Power output | Crankshaft or camshaft (camshaft PTO rpm is 1/2) | |||||||
| Starting system | Recoil or Electric | |||||||
| Fuel tank capacity(L) | 2.5 | 3.5 | 5.5 | |||||
| Lube oil capacity(L) | 0.75 | 1.1 | 1.65 | |||||
| Dimention(LxWxH)(mm) | 420X380X470 | 480X480X520 | 520X490X570 | |||||
| Net Weight(kgs) | 27 | 36 | 46 | 47 | ||||
| 20FT loading pcs | 300 | 176 | 176 | 176 | ||||
