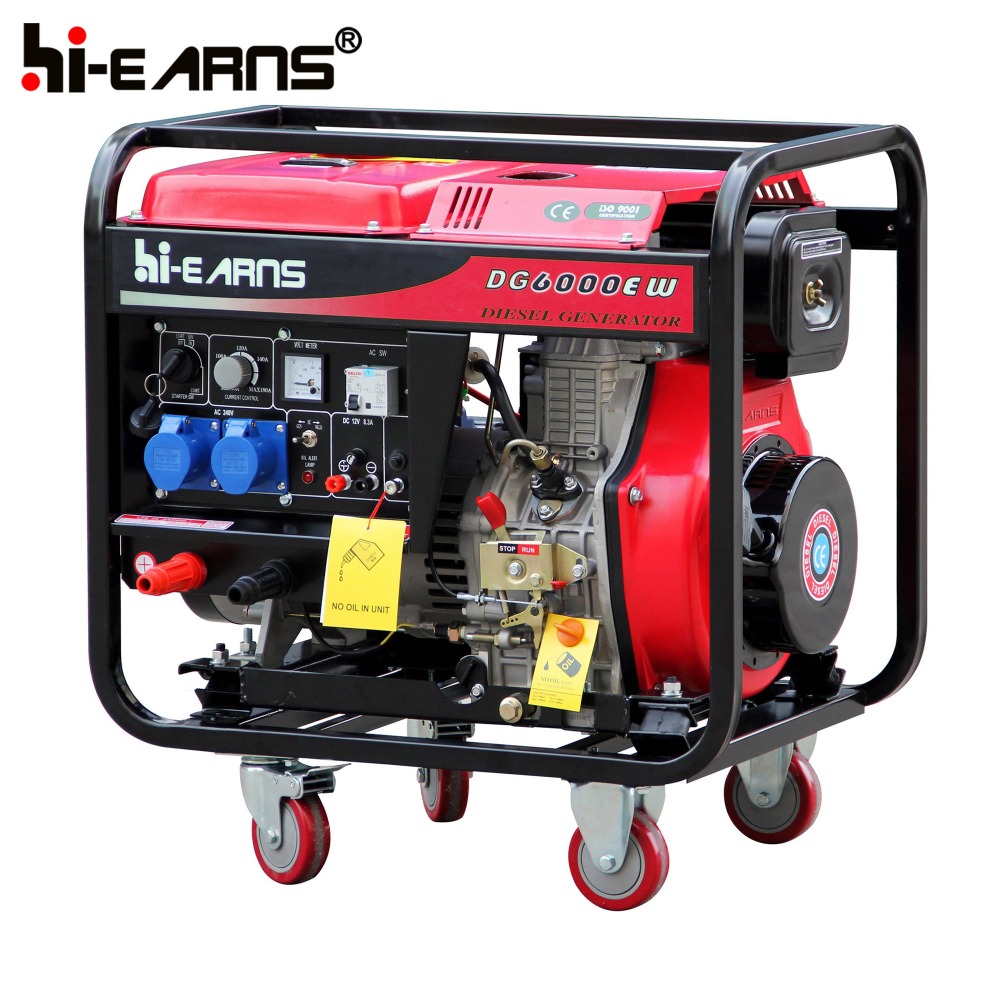

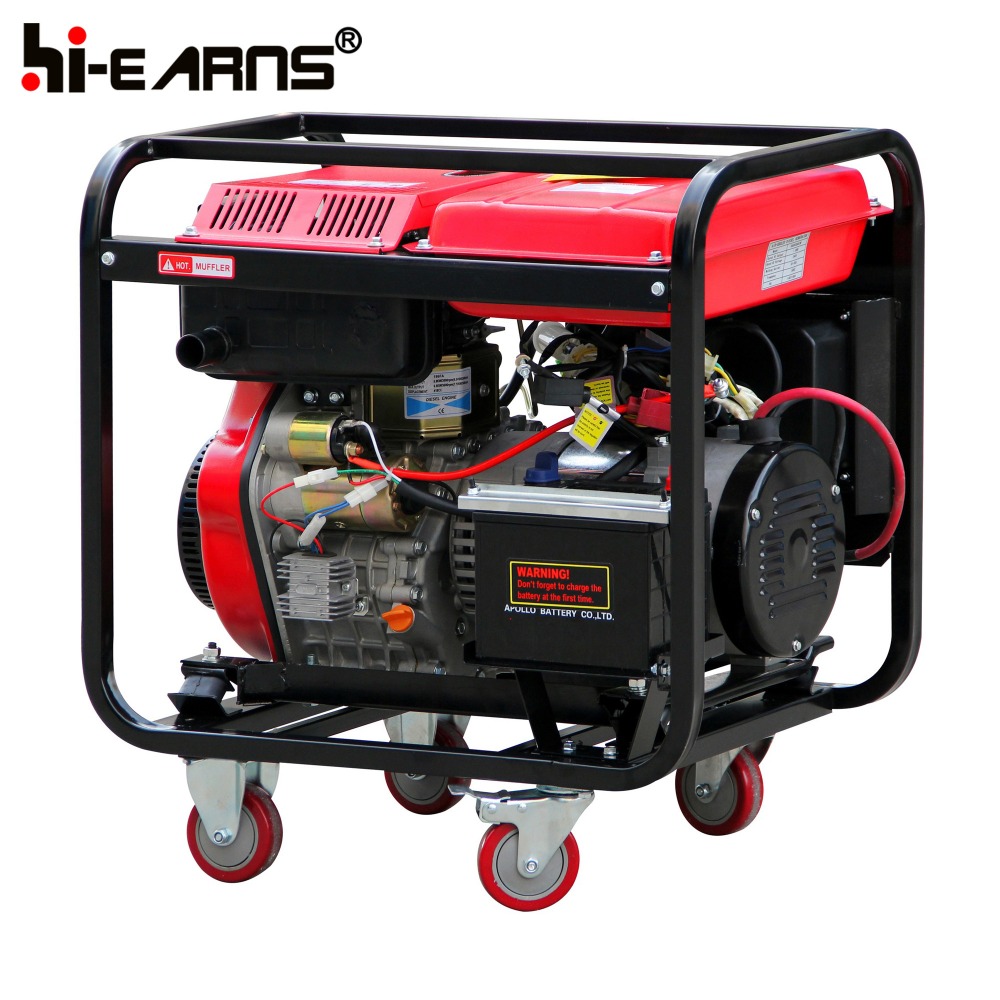

1.8KW portable diesel welding electrode welder welding machine
♦ Use good brand spare parts
♦ 100% copper alternator, 180A welding machine
♦ We are factory, have low price spare parts and timely technical support
GENERATOR | Model | DG6000EW | |
Frequency (HZ) | 50 | 60 | |
Rated AC voltage (V) | 230 | 240 | |
Rated current (A) | 7.8 | 9.2 | |
Rated output (KVA) | 1.8 | 2.2 | |
Rated speed (rpm) | 3000 | 3600 | |
WELDER | Welding no-load voltage (V) | 55-65 | |
Working voltage (V) | 26-30 | ||
Rated current (A) | 160 | ||
Range of current (A) | 0-180 | ||
Welding efficiency | 60% | ||
Power factor (cosΦ ) | 1 | ||
Phase | 1 | ||
Noise level (at 7m) | 80-85db | ||
ENGINE | Engine model | HR186FA | |
Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
Bore×stroke(mm) | 86×72 | ||
Displacement capacity (cc) | 418cc | ||
Fuel | 0# or -10# light diesel fuel | ||
Lubrication oil volume (L) | 1.65 | ||
Combustion system | Direct lnjection | ||
STANDARD FEATURES | Voltmeter | yes | |
AC Output Socket | 2 | ||
AC circuit breaker | yes | ||
Oil warning light | yes | ||
Oil alert | yes | ||
OPTIONAL FEATURES | DC circuit breaker | optional | |
Calculagraph | optional | ||
Big Wheel | optional | ||
Three phase voltage | optional | ||
DIMENSIONS | Dimension (L× W× H)(mm) | 700×470×600 | |
Net weight (kg) | 110 | ||
20FT | 102 | ||
♦ Use famous brand spare parts, ISO, CE, GS approved
♦ One year warranty, complete spare parts
♦ Low fuel consumption, easy maintenance
♦ Strict spare parts IQC system, to ensure every spare parts are qualified.
♦ Technical support in every step to eliminate all detailed questions.
♦ Modern workshops have advanced production lines and professional knowledge of assembly.
♦ Flow card to record each details carefully.
♦ Test engine at least twice before ex-factory.
♦ Strong packaging to ensure safty during transportation.
♦ 7 layer corrugated carton or wooden box packaging for products.
♦ Modern office building, we warmly welcome your visiting.
♦ We attend exhibitions domestic and overseas. Rich activities to improve work enthusiasm.
♦ ISO, CE, GS, Rohs certificates. We have been making good progress.
♦ Line 1: TAXI
Shanghai International Airport(Pudong)
Cost(USD): 85
Time: 2.5 hours
Shanghai HongQiao railway station---Changzhou railway station
Cost(USD): 20
Time: 1 hours
♦ With all the technical advantages, we promise customer one year warranty.
♦ Low price spare parts provided beyond warranty period.
