Overview
Quick Details
- Applicable Industries:
- Building Material Shops, Farms, Construction works
- Type:
- Submerged Arc Welding Equipment, Open and electric
- Condition:
- New
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Arc Current:
- 7.8/9.2A
- Pulse Frequency:
- 50/60HZ
- Pilot Arc Current:
- 7.8/9.2A
- Rated Duty Cycle:
- 1.8KW
- Motor Type:
- AC Motor
- Dimensions:
- 710*500*640mm
- Usage:
- Welding and emergency power
- Voltage:
- 110,220,230V
- Power(W):
- 1800/2000W
- Certification:
- CE/ISO
- Warranty:
- one year
- After-sales Service Provided:
- Video technical support
- Color:
- Yellow/Green/White/Green/Red/Orange/Blue
- Panel:
- Socket and AC switch
- Wheel:
- Optional
- Design:
- New
- Noise:
- low
- Power factor:
- 1
- Phase:
- Single
- Engine type:
- HR186FA
- Price:
- More competitive
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 71X50X64 cm
- Single gross weight:
- 102.0 kg
- Package Type:
- Carton with plastic film
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 1 2 - 10 >10 Est. Time(days) 7 15 To be negotiated
Related Products

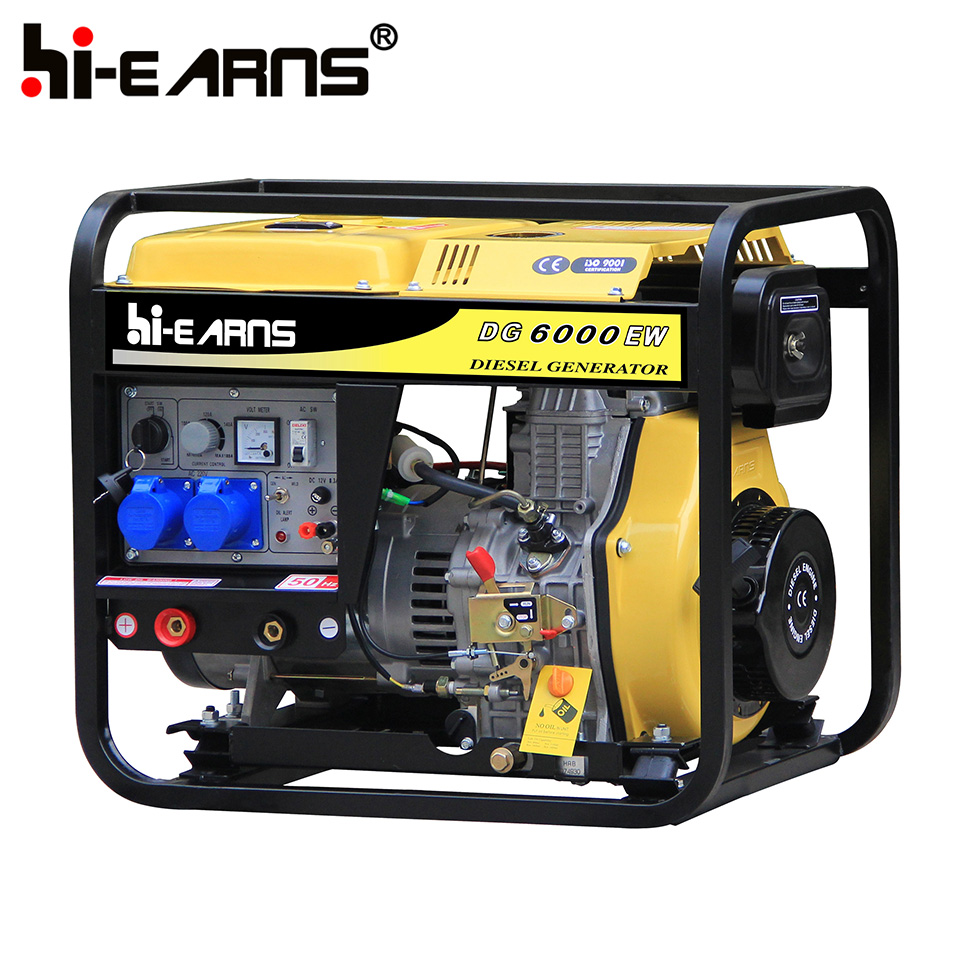

1.8KW 180A diesel welding generator
GENERATOR
| Model | DG6000EW | |
| Frequency(HZ) | 50 | 60 | |
| Rated.AC voltage(V) | 110,220,230,240 | ||
| Rated current(A) | 7.8 | 9.2 | |
| Rated output(KVA) | 1.8 | 2.2 | |
| Rated speed(rpm) | 3000 | 3600 | |
WELDER | Welding no-load voltage(V) | 55-65 | |
| Working voltage(V) | 26-30 | ||
| Rated current (A) | 160 | ||
| Range of current(A) | 0-180 | ||
| Welding efficiency | 60% | ||
| Power factor (cosΦ ) | 1 | ||
| Phase | 1 | ||
| Noise level(at 7m) | 80-85db | ||
ENGINE | Engine model | HR186FA | |
| Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
| Bore× stroke(mm) | 86×72 | ||
| Displacement capacity(cc) | 418cc | ||
| Fuel | 0# or -10# light diesel fuel | ||
| Lubrication oil volume(L) | 1.65 | ||
| Combustion system | Direct lnjection | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
| OPTIONAL FEATURES | DC circuit breaker | optional | |
| Calculagraph | optional | ||
| Big Wheel | optional | ||
| Three phase voltage | optional | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 710× 500×640 | |
| Net weight(kg) | 102 | ||
| 20FT | 102 | ||
