- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- DP20
- Structure:
- Piston Pump
- Usage:
- Water
- Application:
- Submersible
- Power:
- Electric
- Fuel:
- Diesel
- Pressure:
- Low Pressure
- Theory:
- Centrifugal Pump
- cont.head:
- 26m
- self-priming time:
- 70s/4m
- max.suction head:
- 8m
- cont.capacity:
- 36m3/hr
- engine model:
- HR170F
- speed:
- 3600rpm
- displacement:
- 211
- starting system:
- recoil or electric
- fuel tank:
- 2.5
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 49X42X53 cm
- Single gross weight:
- 38.0 kg
- Package Type:
- carton box
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 20 21 - 50 >50 Est. Time(days) 15 20 To be negotiated

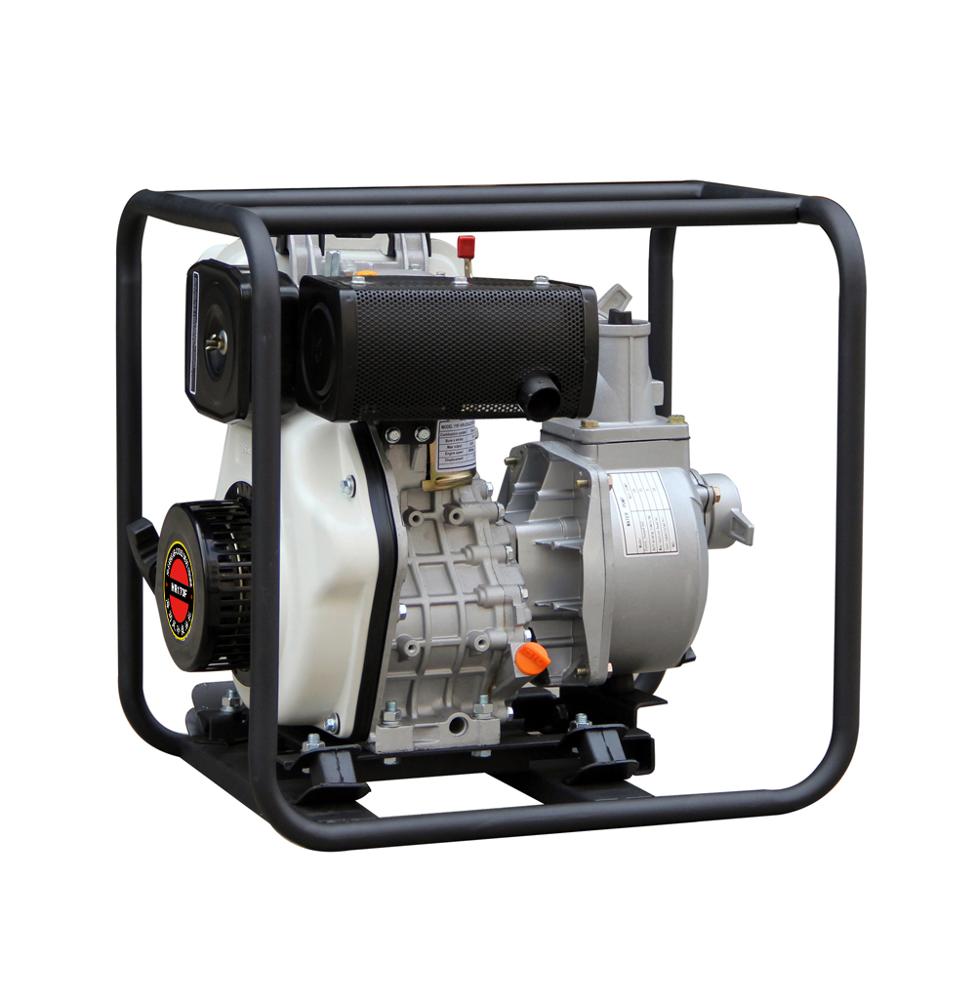

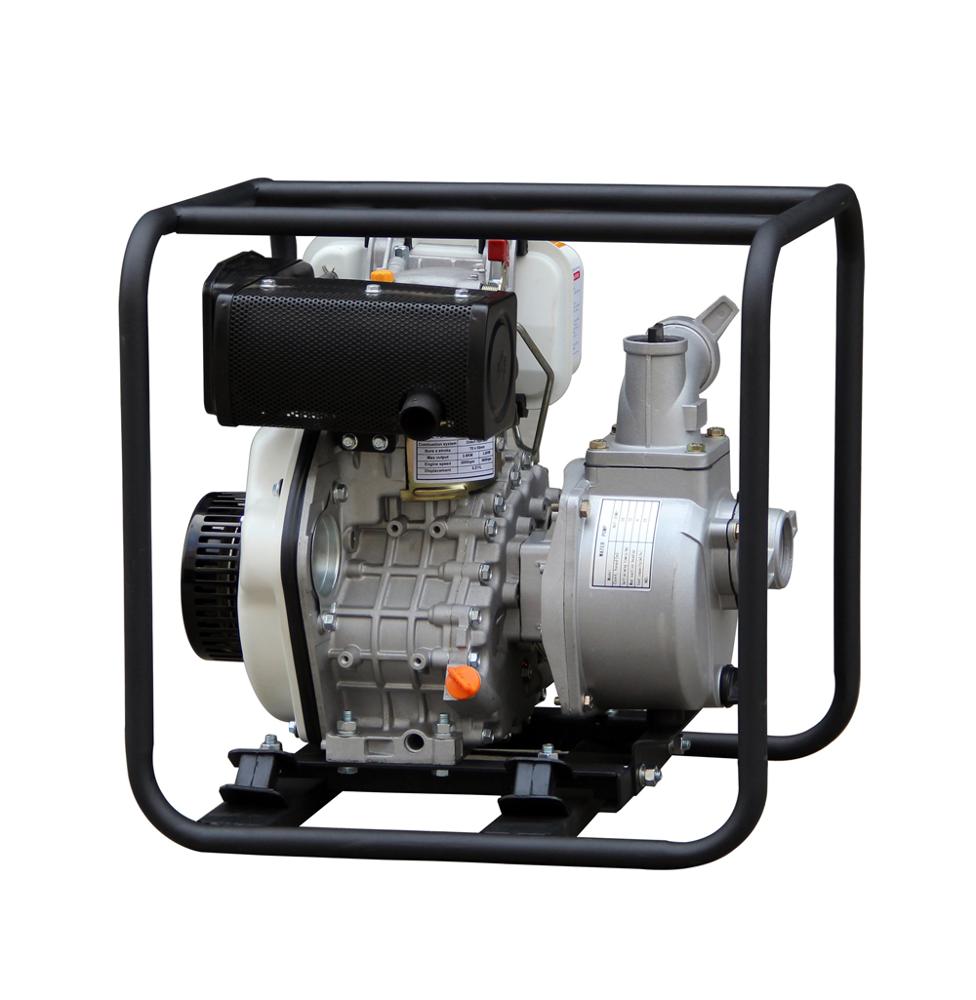

Diesel air cooled centrifugal pump set price for sale DP20
| WATER PUMP | Model | DP20 | |
| Suction,discharge port diameter[mm(in)] | 50(2") | ||
| Cont.head(m) | 26 | ||
| Self-priming time(s/4m) | 70 | ||
| Max suction head(m) | 8 | ||
| Cont.capacity(m³/hr) | 36 | ||
| ENGINE | Engine model | HR170F | |
| Speed(rpm) | 3600 | ||
| Fuel consumption(g/kw.h) | 280 | ||
| Fuel | Single-cylinder,vertical,4-stroke air-cooled diesel engine | ||
Displacement(cc) | 211 | ||
Bore*stroke(mm) | 70*55 | ||
Starting system | Recoil or Electric | ||
| Fuel tank capacity(L) | 2.5 | ||
| STANDARD FEATURES | Oil alert | yes | |
| Connector of infall,Connecto of outfall | yes | ||
| Filter | yes | ||
| Seal ring | yes | ||
| Hoop | yes | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 495×410×520 | |
| Net weight(kg) | 38 | ||
| 20FT | 240 | ||
1. Reliable Performance:
Reliable Performance is the major advantage of Hi-earns products, and this reliability is based on the outstanding design in every aspect and strict Q.C. System.
2. Customer First:
We devote ourselves to develop products to meet customers" requirements .Our engineer develop and design new products for customers.
3. Strict test process before ex-factory:
Every product will be tested twice before ex-factory,and our products are 100% ex factory pass rate.
4. Low fuel consumption, easy maintenance
5. Certification: CE,ISO..., etc.
6.Our logo or OEM
♦ Modern workshops have advanced production lines and professional knowledge of assembly.
♦ Flow card to record each details carefully.
♦ Test engine at least twice before ex-factory.
