Overview
Quick Details
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- DP20
- Structure:
- Piston Pump
- Usage:
- Water
- Application:
- Sewage treatment/Building system/Agricultural/Power station
- Power:
- Electric
- Fuel:
- Diesel
- Pressure:
- Low Pressure
- Color:
- Yellow/Green/White/Green/Red/Orange/Blue
- Type:
- high pressure
- Wheel:
- Rubber solid wheel
- Design:
- New
- Noise:
- low
- Phase:
- Single
- Engine type:
- 4hp-HR170F
- Quality:
- Best
- Lifetime:
- Longer
- Price:
- More competitive
Supply Ability
- Supply Ability:
- 300 Piece/Pieces per Day
Packaging & Delivery
- Packaging Details
- Packaging details:Carton with plastic film
Packaging size:515X430X470mm
Delivery time: 15 days
One 20FT can load 275pcs.
One 40HQ can load 575pcs.
- Port
- Shanghai or other Chinese port
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 5 6 - 20 >20 Est. Time(days) 10 15 To be negotiated
Related Products

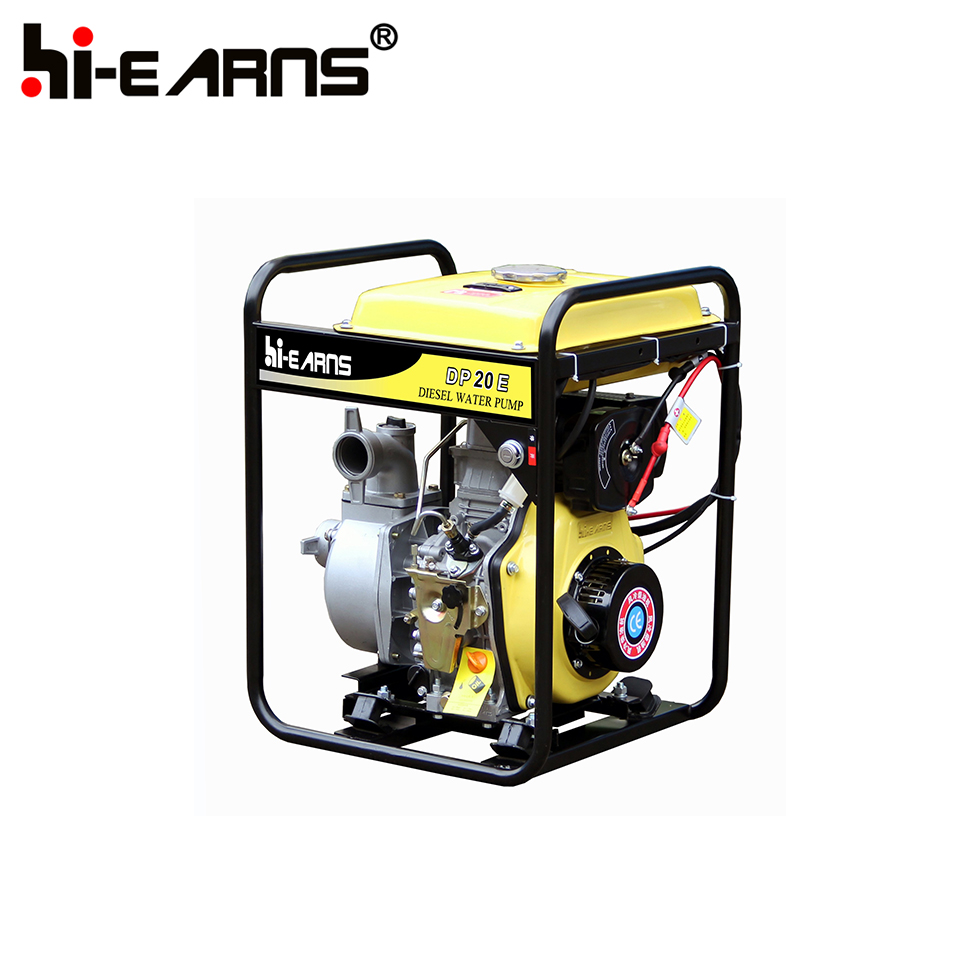

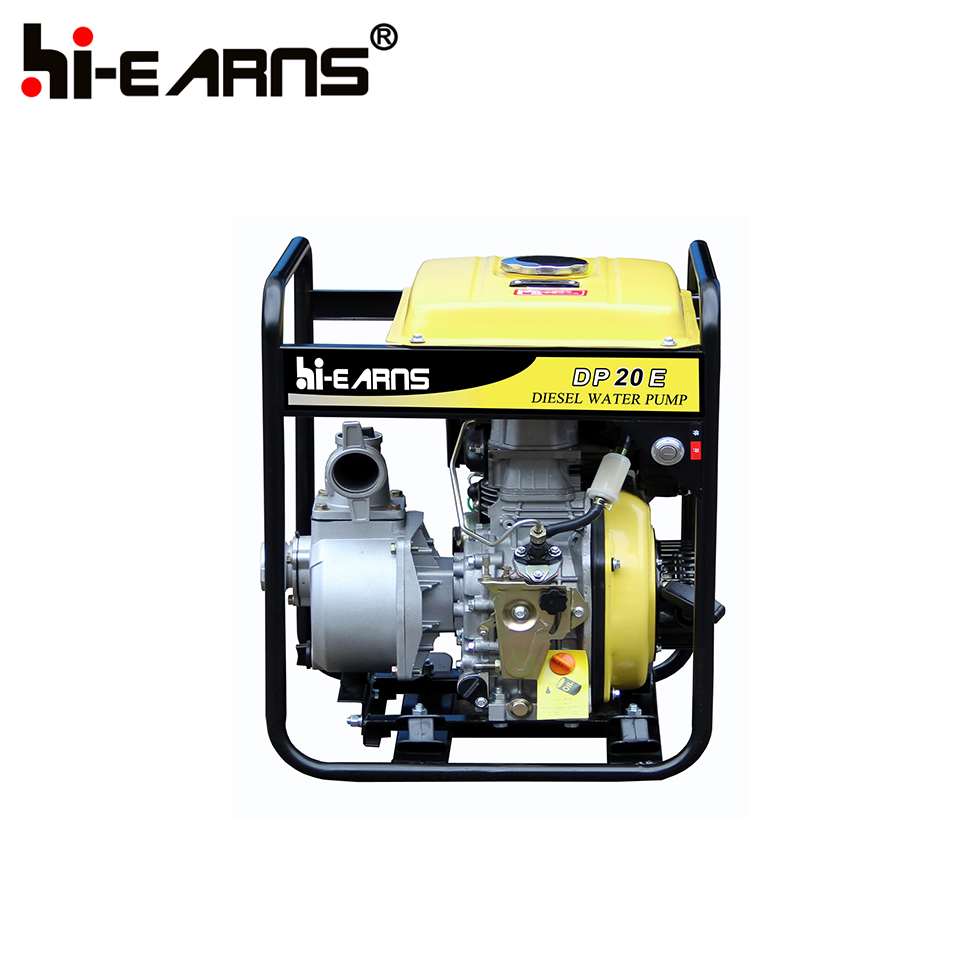

DP20 2inch diesel water pump with 4hp HR170FB diesel engine
| Model | DP20 | |
| WATER PUMP | Suction,discharge port diameter mm(in) | 50(2inch) |
| HP | 4 | |
| Cont.head(m) | 26 | |
| Self-priming time (s/4m) | 70 | |
| Max suction head (m) | 8 | |
| Cont.capacity(m3/hr) | 36 | |
| ENGINE | Engine model | HR170F |
| Speed(rpm) | 3600 | |
| Type | Single-cylinder,vertical,4-stroke air-cooled diesel engine | |
| Displacement(cc) | 211 | |
| Bore×stroke (mm) | 70×55 | |
| Starting system | Recoil or electric | |
| Fuel tank capacity(L) | 2.5 | |
STANDARD FEATURES | Connecter of infall,Connecter of outfall | yes |
| Filter | yes | |
| Seal ring | yes | |
| Hoop | yes | |
OPTIONAL FEATURES | Luxury big fuel tank | optional |
| Electric Start | optional | |
| DIMENSIONS | Dimension(L×W×H)(mm) | 475×400×515 |
| Dry weight(kg) | 35 | |
| 20FT | 275 | |
