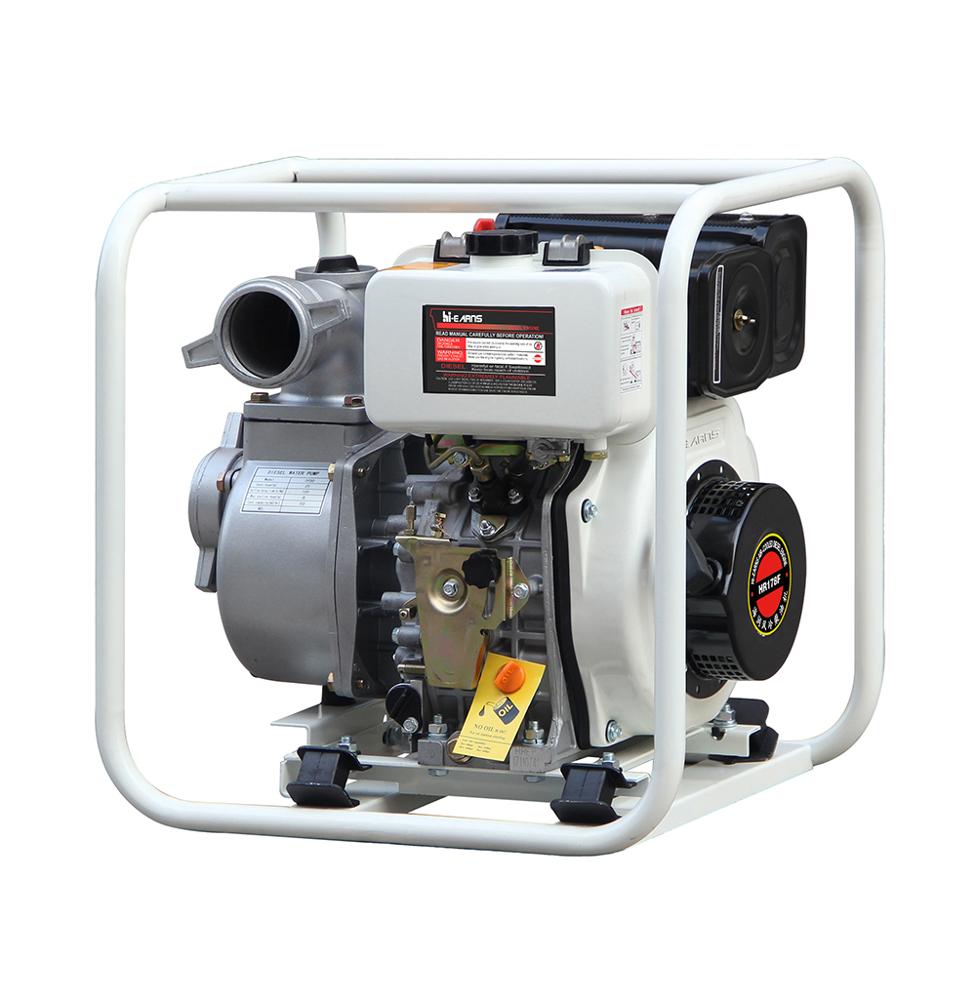

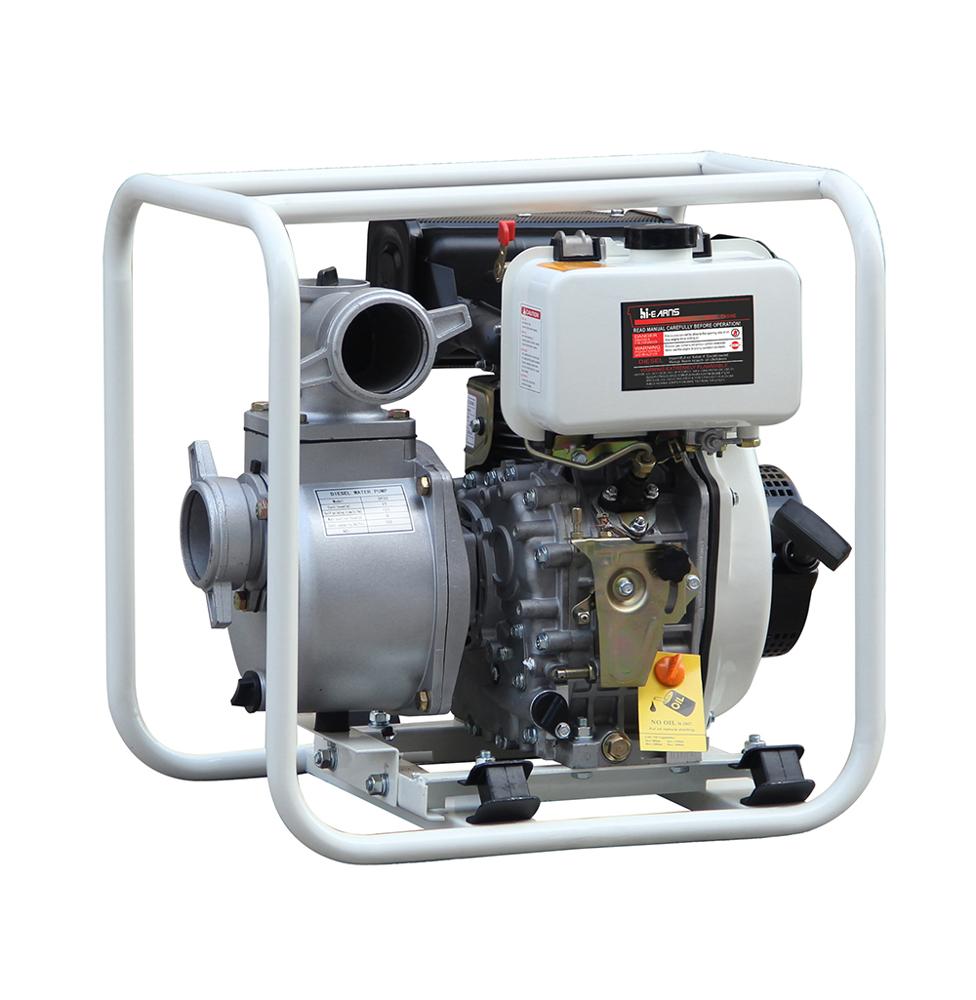

Mini diesel water pump 3 inch pump
| WATER PUMP | Model | DP30 | |
| Suction,discharge port diameter[mm(in)] | 80(3“) | ||
| Cont.head(m) | 28 | ||
| Self-priming time(s/4m) | 120 | ||
| Max suction head(m) | 8 | ||
| Cont.capacity(m³/hr) | 50 | ||
| ENGINE | Engine model | HR178F | |
| Speed(rpm) | 3600 | ||
| Type | Single-cylinder,vertical,4-stroke air-cooled diesel engine | ||
Displacement(cc) | 296 | ||
Bore*stroke(mm) | 78*62 | ||
Starting system | Recoil or Electric | ||
| Fuel tank capacity(L) | 3.5 | ||
| STANDARD FEATURES | Oil alert | yes | |
| Connector of infall,Connecto of outfall | yes | ||
| Filter | yes | ||
| Seal ring | yes | ||
| Hoop | yes | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 560×465×570 | |
| Net weight(kg) | 48 | ||
| 20FT | 192 | ||
1.We are manufactory covering diesel and gasoline engine, diesel generator from
2-500KW, water pump, trash pump, construction machinery like vibrator rammer,
compactor, concrete cutter, power trowel, farm machinery and so on
2.Use famous brand spare parts
3.ISO, CE, GS approved supplier
4.One year warranty, complete spare parts for after-sales services
5.Low price with good quality, reliable performance
6.Easy to start and operate, convenient to move
7.Low fuel consumption, easy maintenance
8.Our logo or OEM
Every product will be tested twice before ex-factory,and our products are 100% ex factory pass rate.
We continuously introducing advanced production technology, realize the automatic production, testing lines.
1set/cartons 3% discount wholesale diesel generator
