Home > Products > 4hp air cooled single cylinder diesel engine thread shaft

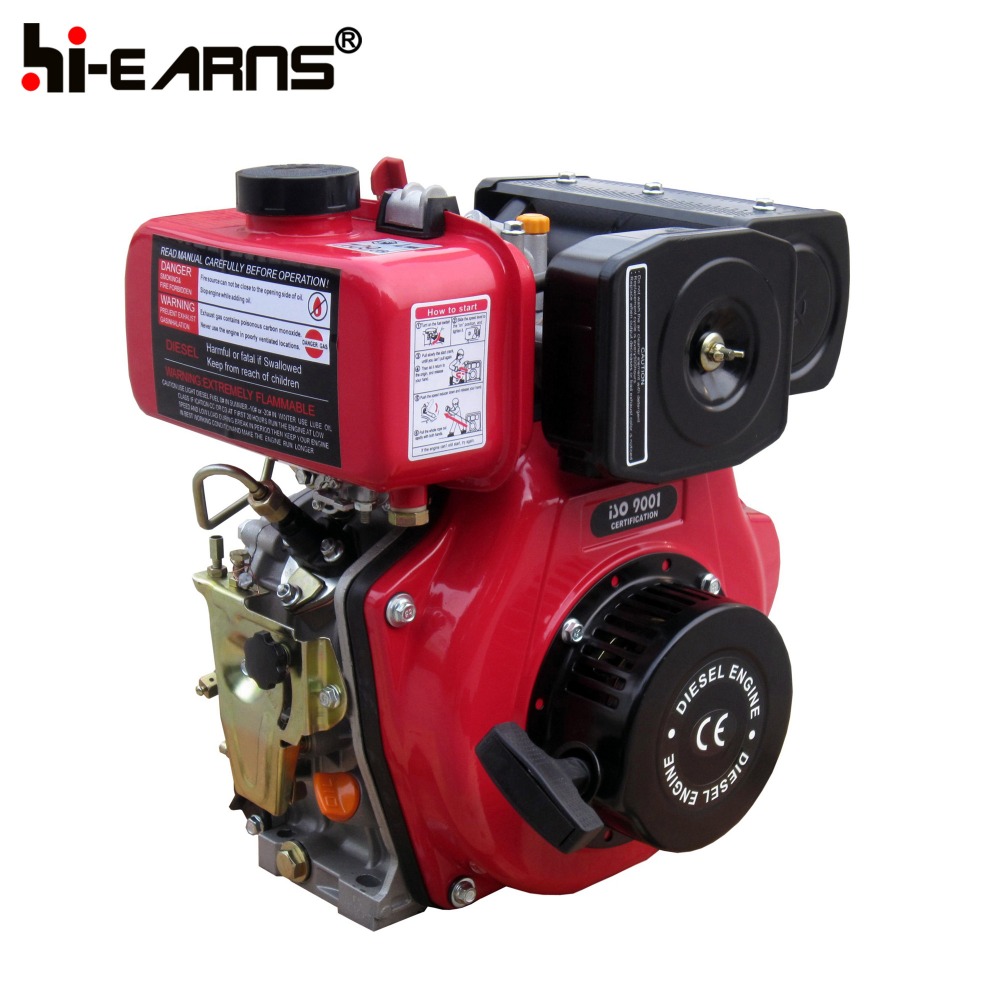

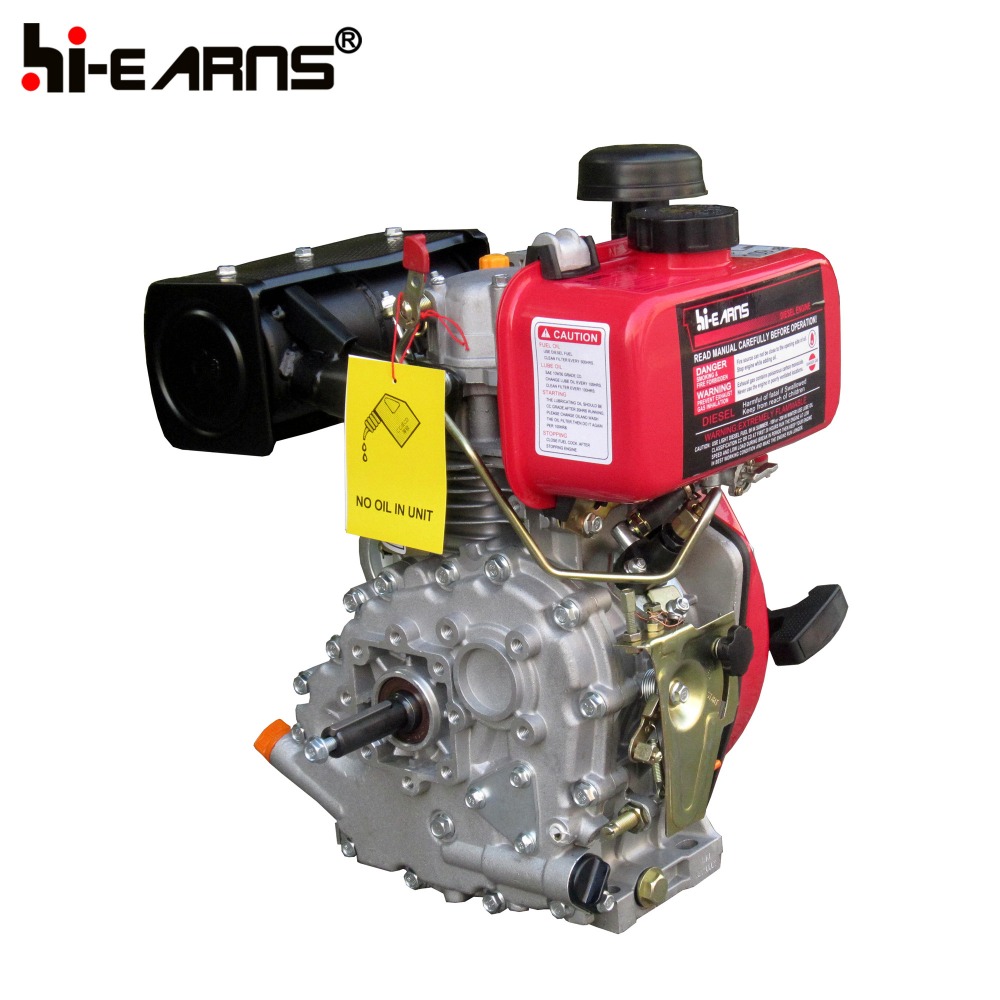

4hp air cooled single cylinder diesel engine thread shaft

Click on the image to view the original image

Product：	views：34hp air cooled single cylinder diesel engine thread shaft
Branch：	Hi-earns
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-12-03 18:36

Product Details

Overview

Quick Details

Applicable Industries:: Hotels, Manufacturing Plant, Farms, Restaurant, Home Use, Retail, Construction works , Energy & Mining

Condition:: New

Stroke:: 4 Stroke

Cylinder:: Single Cylinder

Cold Style:: Air-cooled

Start:: recoil start

Place of Origin:: Jiangsu, China

Brand Name:: Hi-earns

Dimension(L*W*H):: 42X38X47cm

Weight:: 25/31kg

Certification:: ISO9001-2008

Warranty:: 1 Year

After-sales Service Provided:: Overseas third-party support available

color:: optional

hp:: 4hp

Engine type:: air-cooled

Cylinder number:: single cylinder

Air filter:: normal filter

Fuel tank capacity:: 2.5L

Fuel tank:: best quality

Displacement:: 227cc

BORE*STROKE:: 70*59mm

Shaft types:: Keyway shaft

Supply Ability

Supply Ability:: 500 Piece/Pieces per Day

Packaging & Delivery

Packaging Details: carton with plastic film

Port: shanghai

Lead Time:

Quantity(Pieces)	1 - 100	101 - 200	>200
Est. Time(days)	15	20	To be negotiated

Related Products

Model	HR170FB
Bore×stroke(mm)	70×59
Displacement(cc)	227
Engine speed(rpm)	3000	3600
Max.output(kw)	3.5	4.0
Continuous output(kw )	3.2	3.6
Power output	Crankshaft or camshaft(Camshaft PTO rpm is 1/2)
Starting system	Recoil or electric
Fuel tank capacity(L)	2.5
Rube oil capacity(L)	0.75
Dimension(cm)	42×38×47
Net weight(kg)	25/31

Product Description

Field of Application

♦ Our products are widely used in various fields, such as generators,water pumps, rotavator,concrete cutter,plate compactor,high pressure washer

Care & Maintenance

About Us

Exhibition

♦ We attend exhibitions domestic and overseas. Rich activities to improve work enthusiasm.

♦ ISO, CE Certificates. We have been making good progress.
