Overview
Quick Details
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns or OEM
- Model Number:
- DP30
- Structure:
- Gear Pump
- Usage:
- Water
- Application:
- irrigation diesel water pump
- Power:
- 3 inch
- Fuel:
- Diesel
- Pressure:
- Low Pressure
- diesel water pump:
- 3 inch
- engine:
- 178F, 6HP
- color:
- optional
- Certificate:
- ISO9001 CE
- Product name:
- 3 inch agricultural diesel water pump seal
- Warranty:
- 1 Year
- Name:
- 3 inch agricultural diesel water pump seal
- Motor:
- 178F
- Material:
- Aluminum
- Feature:
- High Efficiency
Supply Ability
- Supply Ability:
- 300 Piece/Pieces per Day
Packaging & Delivery
- Packaging Details
- Carton
- Port
- FOB SHANGHAI or CIF destination port
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 5 6 - 100 101 - 200 >200 Est. Time(days) 5 10 15 To be negotiated

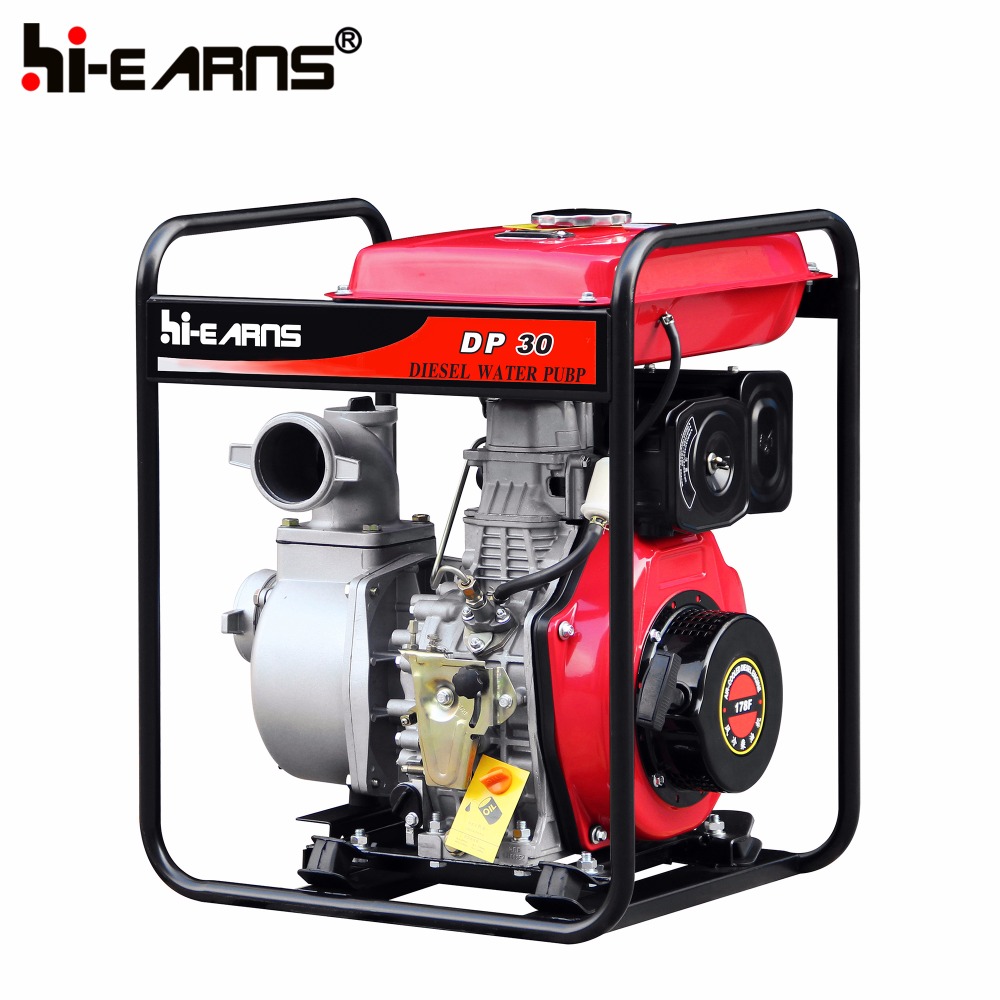

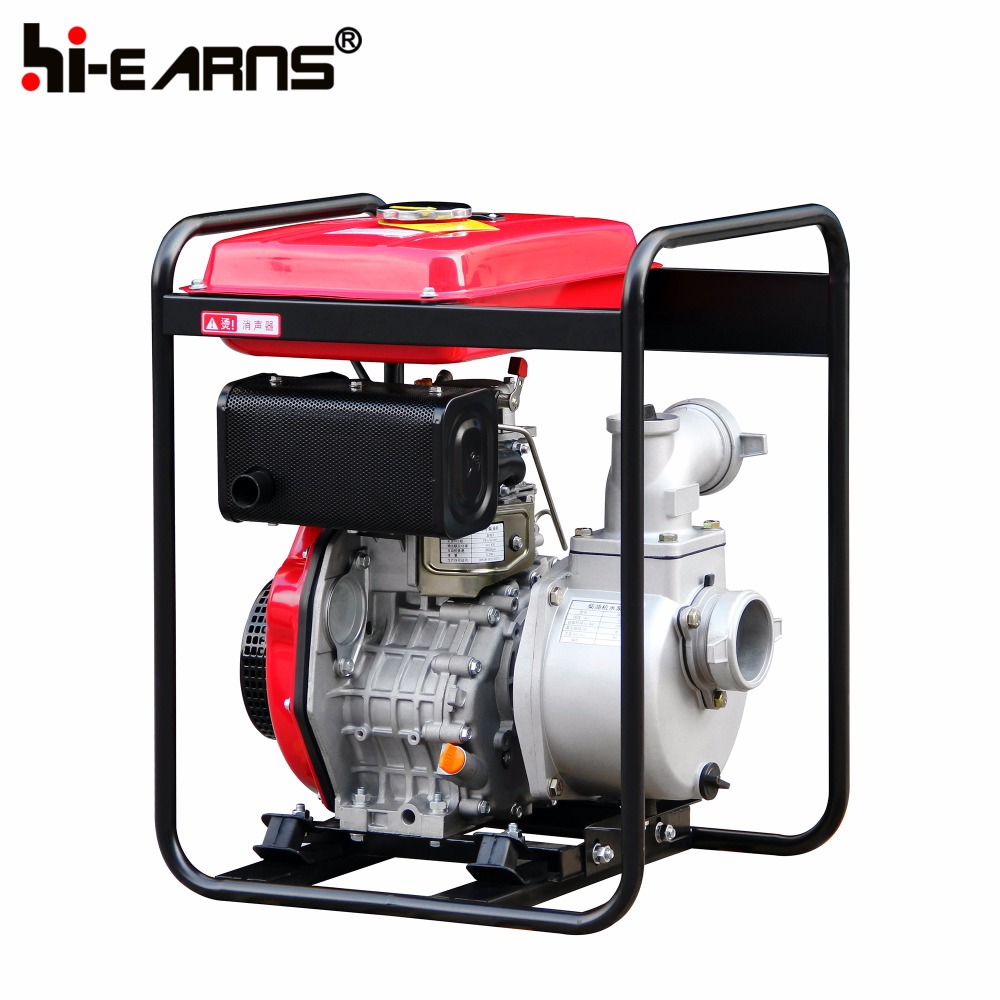

3 inch agricultural diesel water pump seal
♦ Use good brand spare parts, big cont. head
♦ Portable type, easy to move and lifting
♦ We are factory, have low price spare parts and timely technical support
Related Products
| WATER PUMP | Model | DP30 | |
| Suction,discharge port diameter[mm(in)] | 80(3"") | ||
| Cont.head(m) | 28 | ||
| Self-priming time(s/4m) | 120 | ||
| Max suction head(m) | 8 | ||
| Cont.capacity(m³/hr) | 50 | ||
| ENGINE | Engine model | HR178F | |
| Speed(rpm) | 3600 | ||
| Fuel consumption(g/kw.h) | 295 | ||
| Type | Single-cylinder,vertical,4-stroke air-cooled diesel engine | ||
| 296 | |||
| 78*62 | |||
Starting system | Recoil or Electric | ||
| Fuel tank capacity(L) | 3.5 | ||
| STANDARD FEATURES | Oil alert | yes | |
| Connector of infall,Connecto of outfall | yes | ||
| Filter | yes | ||
| Seal ring | yes | ||
| Hoop | yes | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 540×440×540 | |
| Net weight(kg) | 52 | ||
| 20FT | 140 | ||
Diesel water pump
