Home > Products > 5000 Watt small portable air cooled diesel generator

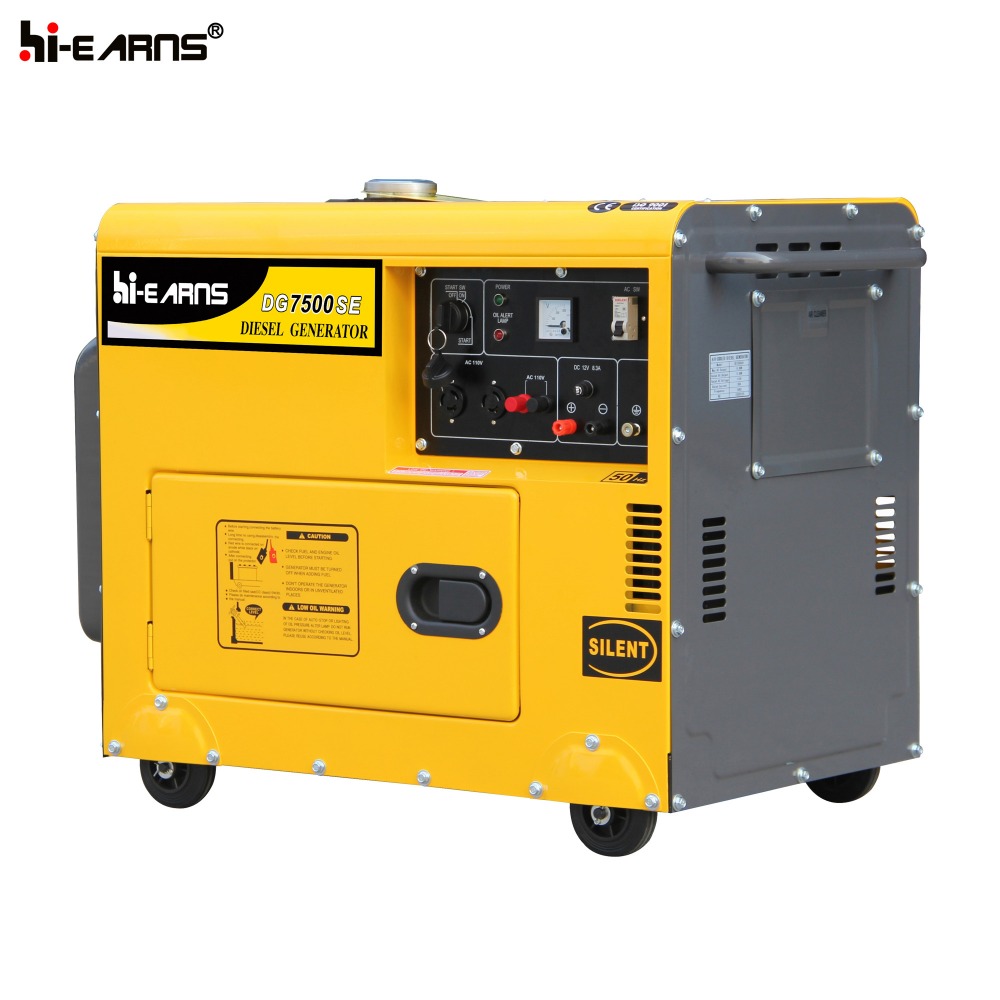

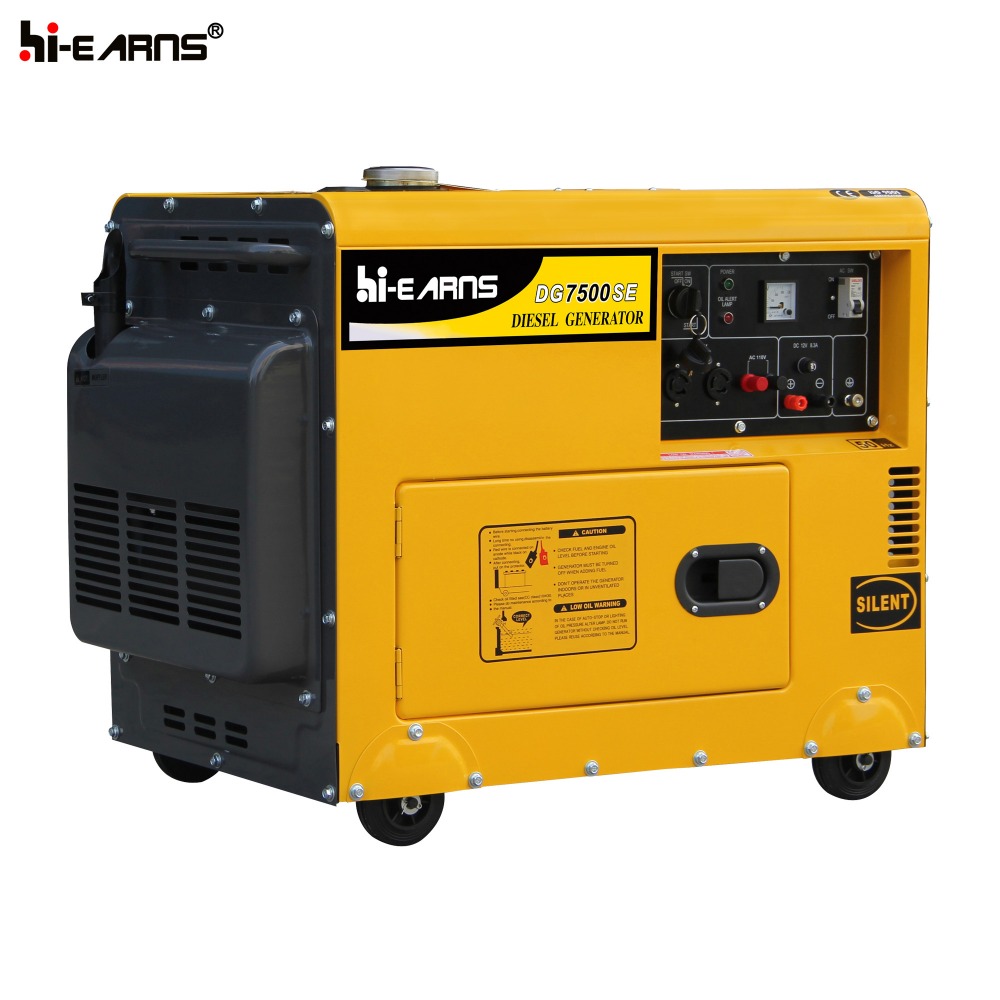

5000 Watt small portable air cooled diesel generator

Click on the image to view the original image

Product：	views：45000 Watt small portable air cooled diesel generator
Branch：	Hi-earns
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-12-03 18:36

Product Details

5000 Watt small portable air cooled diesel generator

Related Products

GENERATOR	Model	DG7500SE
	Frequency(HZ)	50	60
	Max. output(kw)	5.7	6.2
	Rated output(kw)	5.2	5.7
	Rated. AC voltage(v)	120, 220, 230, 240
	Power factor(cosΦ )	cosΦ =1
	DC output (v)	12V/8.3A
	Phase	Single phase
	Alternator type	self-excited, 2-pole, single phase alternator
	Starting system	Electric
	Operating noise level(at 7m)	68~72
	Fuel tank capacity(L)	16
	Continues work(hr)	8.5	7.8
ENGINE	Model	HR188FA
	Engine type	Single-cylinder, vertical, 4-stroke air-cooled diesel engine
	Bore× stroke(mm)	88× 72
	Fuel	0# or -10# light diesel fuel
	Lubrication oil volume(L)	1.65
	Combustion system	Direct lnjection
STANDARD FEATURES	Voltmeter	yes
	AC Output Socket	2
	AC circuit breaker	yes
	Oil warning light	yes
	Oil alert	yes
OPTIONAL FEATURES	DC circuit breaker	optional
	Calculagraph	optional
	Big Wheel	optional
	Three phase voltage	optional
	Current meter	optional
	ATS	optional
	Remote control	optional
	Welding	optional
DIMENSIONS	Dimension(L× W× H)(mm)	950× 560× 710
	Net weight(kg)	155
	20FT	72
