Click on the image to view the original image
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- DG7500SE
- Rated Voltage:
- 220V
- Rated Current:
- 20.9A
- Speed:
- 3000rmp/3600rmp
- Frequency:
- 50HZ/60HZ
- generator:
- silent diesel generator
- panel:
- common panel
- color:
- optional
- output voltage:
- 220V
- engine model:
- 188FA
- Rated output:
- 5.5KVA
- Maximum output:
- 6KVA
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 93.5X53.5X70 cm
- Single gross weight:
- 160.0 kg
- Package Type:
- carton with plywood
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 1 2 - 10 >10 Est. Time(days) 20 25 To be negotiated

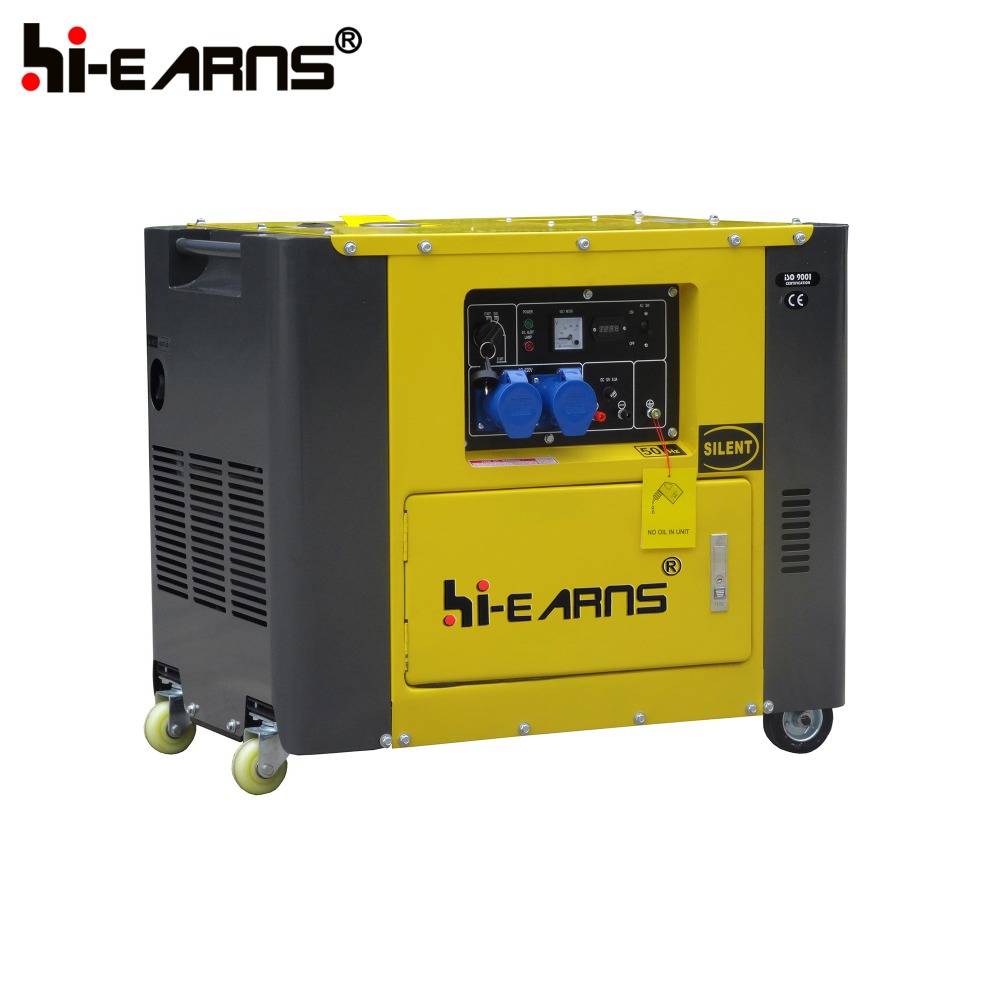

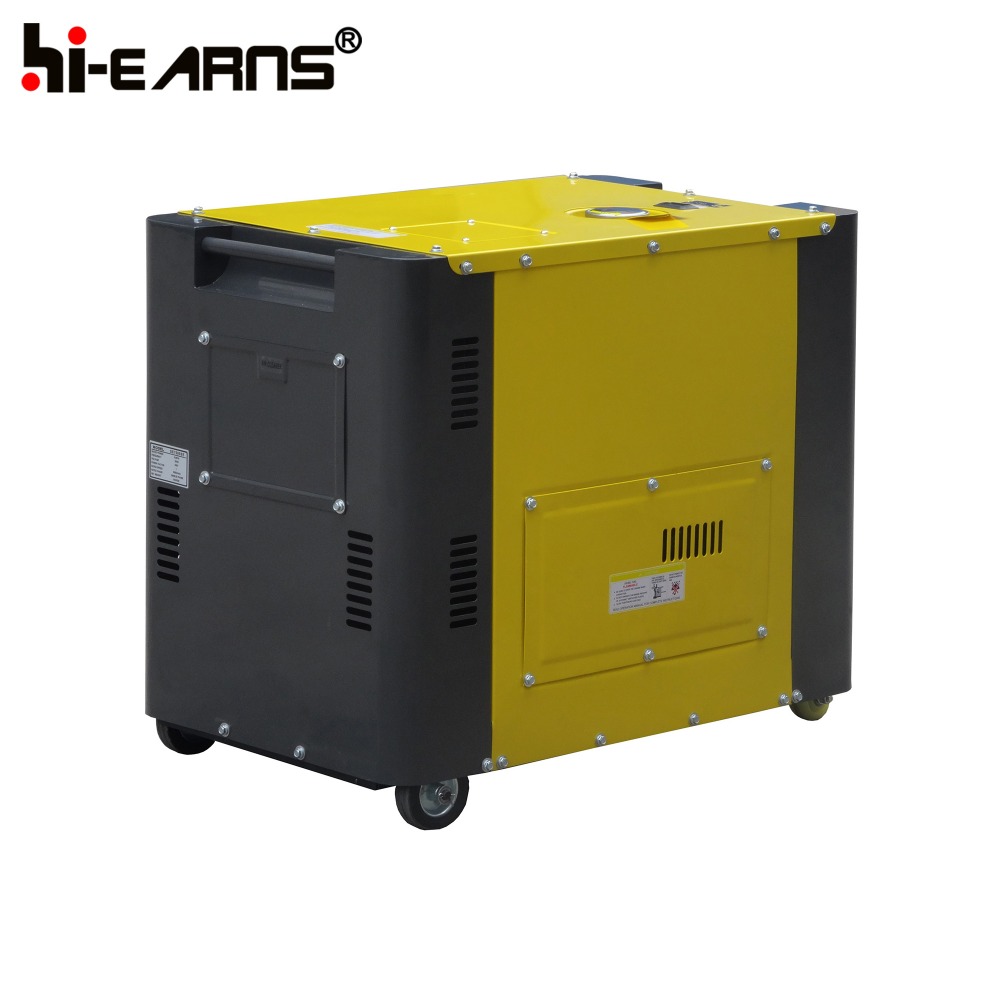

5.5kva air-cooled silent 220 volt portable generator price
DG7500SE model: With 12 HP 188FA two cylinder diesel engine and 100% copper alternator ensure a 5.5KVA rated output, and 6KVA max. output! ator
| GENERATOR | Model | DG7500SE | |
| Frequency(HZ) | 50 | 60 | |
| Max. output(kw) | 6.0 | 6.5 | |
| Rated output(kw) | 5.5 | 6.0 | |
| Rated. AC voltage(v) | 220 | ||
| Power factor(cosΦ ) | cosΦ =1 | ||
| DC output (v) | 12V/8.3A | ||
| Phase | Single phase | ||
| Alternator type | self-excited, 2-pole, single phase alternator | ||
| Starting system | Electric | ||
| Operating noise level(at 7m) | 68~72 | ||
| Fuel tank capacity(L) | 16 | ||
| Continues work(hr) | 8.5 | 7.8 | |
| ENGINE | Model | HR188FA | |
| Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
| Bore× stroke(mm) | 88× 75 | ||
| Fuel | 0# or -10# light diesel fuel | ||
| Lubrication oil volume(L) | 1.65 | ||
| Combustion system | Direct lnjection | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
| OPTIONAL FEATURES | DC circuit breaker | optional | |
| Calculagraph | optional | ||
| Big Wheel | optional | ||
| Three phase voltage | optional | ||
| Current meter | optional | ||
| ATS | optional | ||
| Remote control | optional | ||
| Welding | optional | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 960× 560× 710 | |
| Net weight(kg) | 165 | ||
| 20FT | 72 | ||
♦ Economic and practical products from hi-earns,reliable performance.
♦ Choose hi-earns,choose a rest assured.
♦ Advanced production lines and test rooms.
♦ Complete system of IQC.
♦ Perfect QCP.
♦ Strict spare parts IQC system,to ensure every spare parts are qualified.
♦ Technical support in every step to eliminate all detailed questions.
♦ Strong packaging to ensure safty during transportation.
♦ 7 layer corrugated carton or wooden box packagine for products.
♦ We are manufactory covering diesel and gasoline engine,diesel generator from 2-1000KW,water pump,trash pump,construction machinery like vibrator,rammer,compactor,concrete cutter,power trowel,farm machinery,high pressure washer and so on.
♦ Modern office building,we warmly welcome your visiting.
♦ We attend exhibitions domestic and overseas.Rich activities to improve work enthusiasm.
♦ ISO,CE,GS,Rohs certificates.We have been making good progress.
