Home > Products > 40KW/50KVA open type diesel engine turbine generator

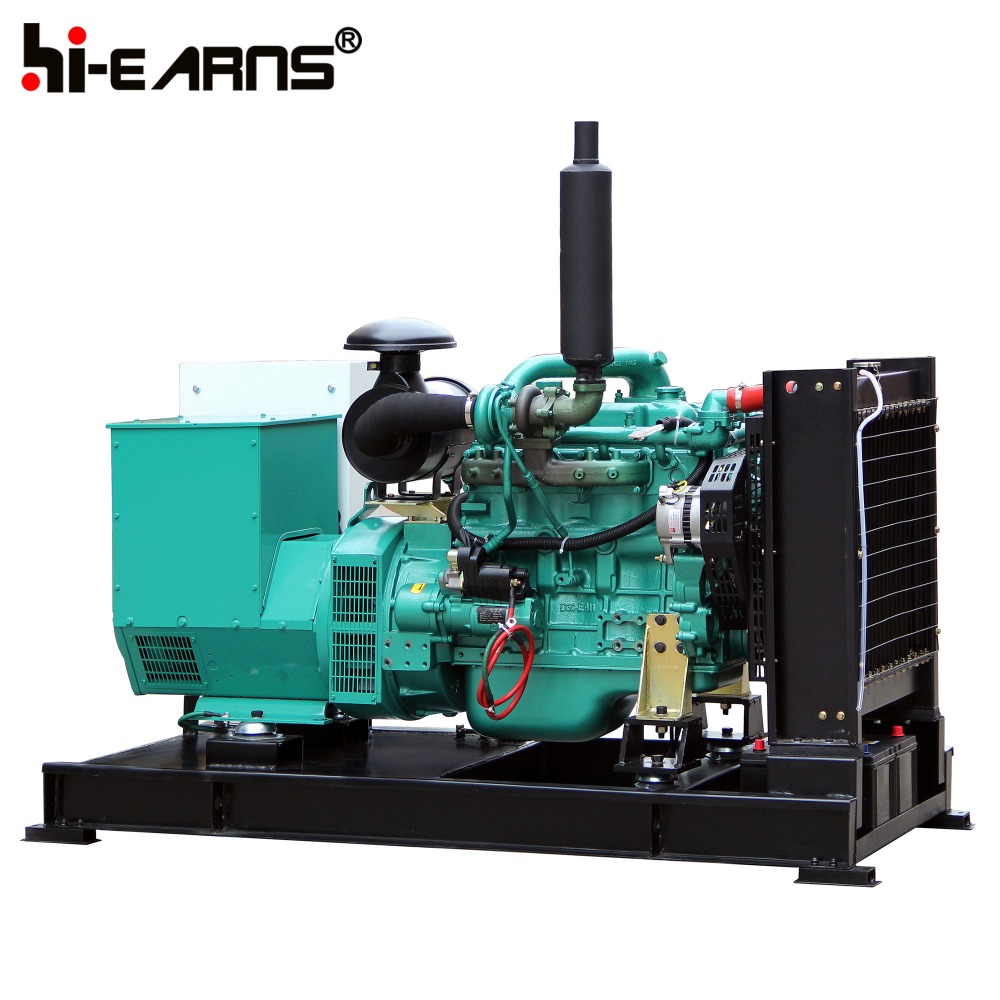

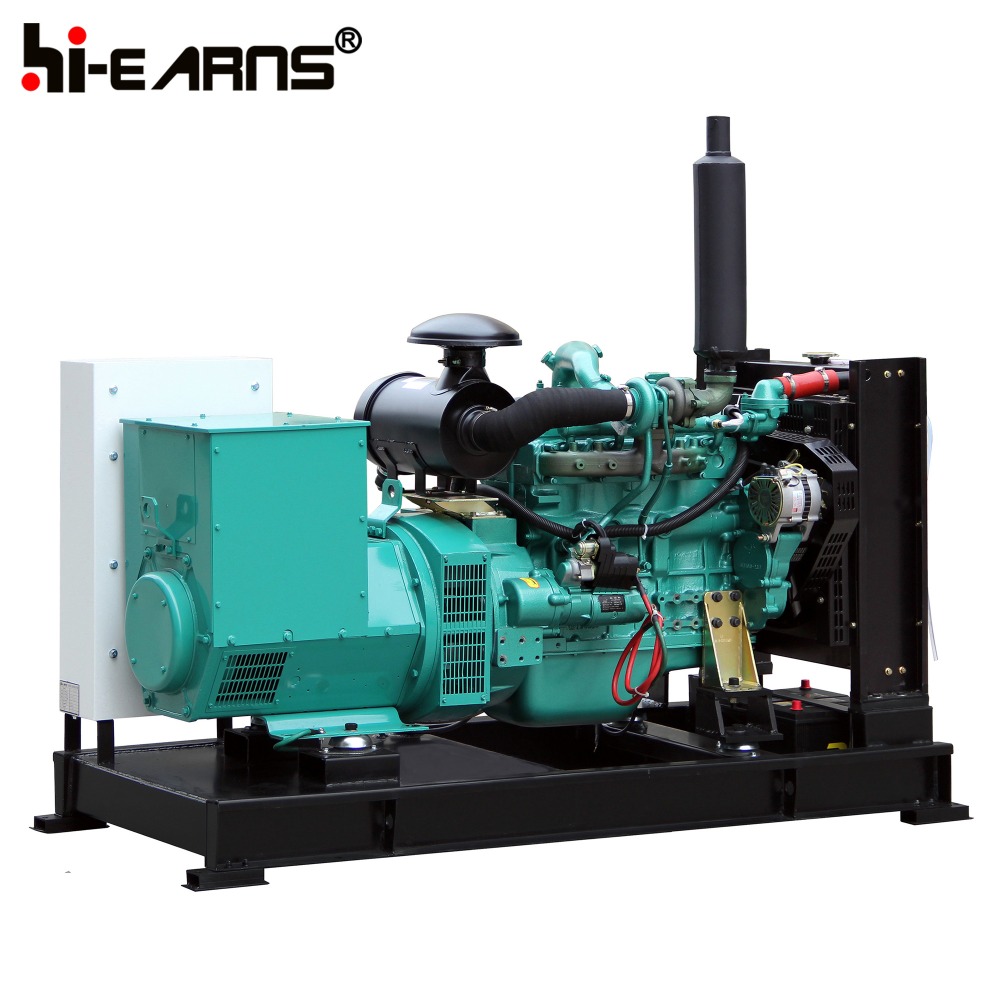

40KW/50KVA open type diesel engine turbine generator

Click on the image to view the original image

Product：	views：340KW/50KVA open type diesel engine turbine generator
Branch：	Hi-earns
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-12-03 18:36

Product Details

40KW/50KVA open type diesel generator set

Model	GF2-50KVA
Standby power(50HZ)	43KW / 54KVA
Prime power(50HZ)	40KW / 50KVA
Voltage(V)	220/380V
Phase	3
P.F(COSφ)	0.8
Standby Amps(A)	81
Engine type	Weifang Huadong Engine R4105D, 4-stroke,water-cooled,direct line, turbo type
Rated RPM(r/min)	1500rpm
Cooling system	Forced water-cooled
Fuel consumption(g/kw.h)	≤ 231
Commpression Ratio	17:01
Bore x Stroke(mm)	105 x 125
Displacement(L)	4.33
Start Method	17.0:1
Rated RPM	Electric start
Alternator Data
Power Factor	0.8 Lag
Insulation Class	H
Lubricating System	Pressure,Split,Complex
Exhaust Air Temperature	≤ 600
Altitude	≤ 1000m
Environment Temperature	40
Connecting Type	3 Phase and 4 Wires, "Y" type connecting
Ignite sequence	1-3-4-2
Intake Type	pressurize
Rated Speed Regulation %	≤±1%
Phase	3
Overall Size	2.15x0.95x1.29(m)
Weight	860kg

Advantages

♦ Economic and practical products from hi-earns,reliable performance.

♦ Choose hi-earns,choose a rest assured.

♦ Advanced production lines and test rooms.

♦ Complete system of IQC.

♦ Perfect QCP.
