Home > Products > 40KW/50KVA open type water cooled diesel generator set

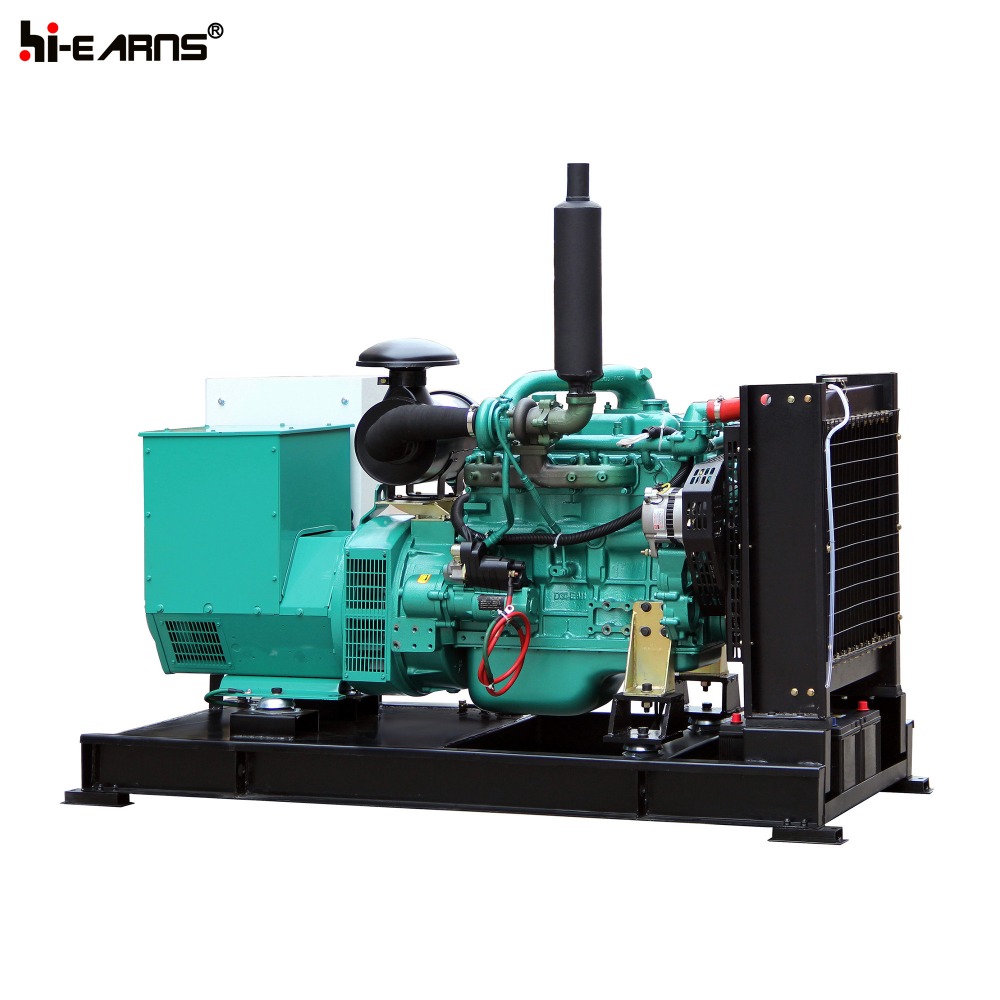

40KW/50KVA open type water cooled diesel generator set
Click on the image to view the original image
Product： views：340KW/50KVA open type water cooled diesel generator set
Branch： Hi-earns
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-12-03 18:36
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Hi-earns
Model Number:
GF1-50KVA
Rated Power:
40KW
Output Type:
AC Three Phase
Rated Voltage:
220/380
Rated Current:
75
Speed:
1500rpm/1800rpm
Frequency:
50/60HZ
Engine:
Huafeng engine
Alternator:
Stamford Brushless Alternator
type:
portable,convenient
Color:
Optional
Control panel:
Deepsea / ComAp / Harsen / Smartgen 6110
Warranty:
1 Year
Certificate:
CE/ISO9001
Supply Ability
Supply Ability:
50 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
iron frame packing
Port
Shanghai
Lead Time:
25days to 30days

40KW/50KVA open type water cooled diesel generator set


ModelGF2-50KVA
Standby power(50HZ)43KW / 54KVA
Prime power(50HZ)40KW / 50KVA
Voltage(V)220/380V
Phase3
P.F(COSφ)      0.8
Standby Amps(A)81
Engine typeWeifang Huadong Engine R4105D, 4-stroke,water-cooled,direct line, turbo type
Rated RPM(r/min)1500rpm
Cooling system

Forced water-cooled

Fuel consumption(g/kw.h)

≤ 231

Commpression Ratio

17:01

Bore x Stroke(mm)105 x 125
Displacement(L)4.33
Start Method17.0:1
Rated RPMElectric start
Alternator Data
Power Factor0.8 Lag
Insulation ClassH
Lubricating SystemPressure,Split,Complex
Exhaust Air Temperature≤ 600
Altitude≤ 1000m
Environment Temperature40
Connecting Type3 Phase and 4 Wires, "Y" type connecting
Ignite sequence1-3-4-2
Intake Typepressurize
Rated Speed Regulation %≤±1%
Phase3
Overall Size2.15x0.95x1.29(m)
Weight860kg
