Overview
Quick Details
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- DG2500E
- Rated Voltage:
- 220,230,240,110/220
- Rated Current:
- 12V/8.3A
- Speed:
- 3000rpm/3600rpm
- Frequency:
- 50/60HZ
- Industrial Diesel generator:
- diesel generator set
- color:
- optional
- frequency:
- 50/60HZ
- max.output:
- 2/2.2kw
- rated output:
- 1.8/2kw
- DC output:
- 12V/8.3A
- phase:
- single or electric
- engine type:
- single cylinder,vertical,4 stroke air cooled diesel engine
- bore*stroke:
- 70*55mm
- displacement:
- 211cc
Supply Ability
- Supply Ability:
- 200 Piece/Pieces per Day
Packaging & Delivery
- Packaging Details
- plywoodpalletcarton
- Port
- FOB shanghai
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 20 21 - 50 >50 Est. Time(days) 15 20 To be negotiated
Related Products

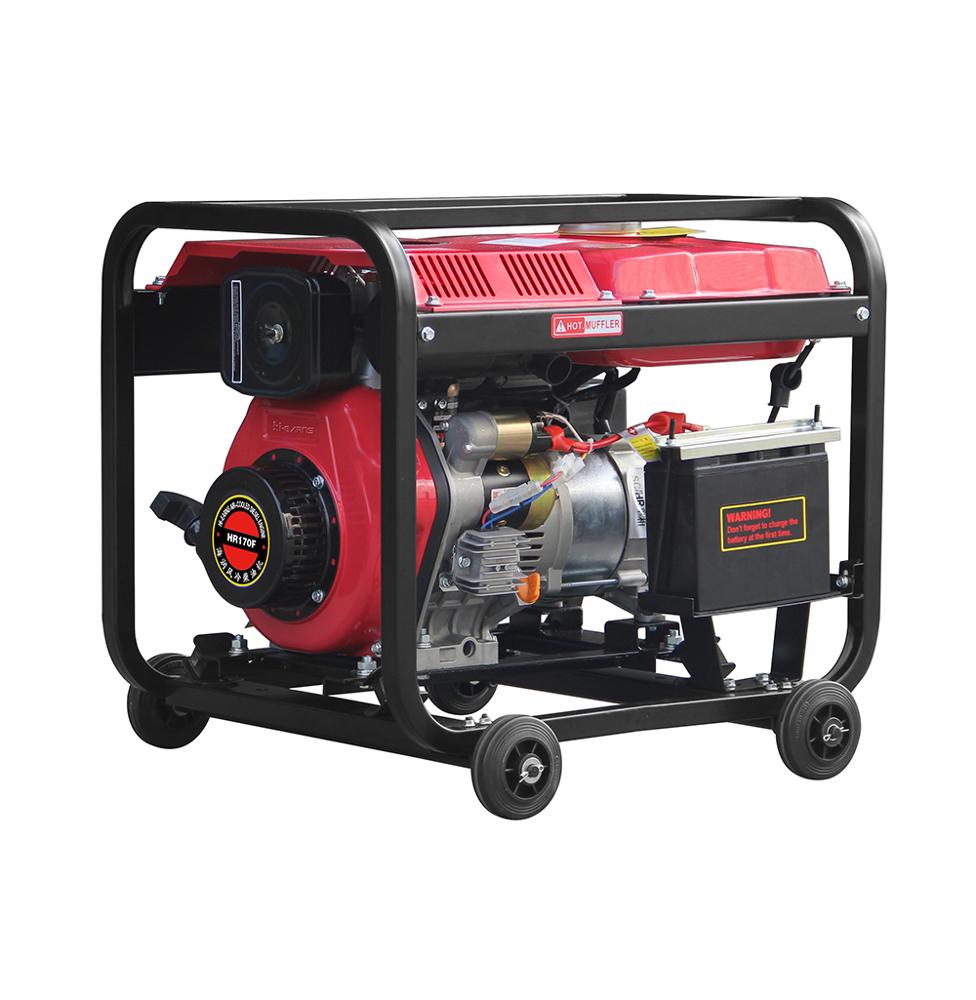

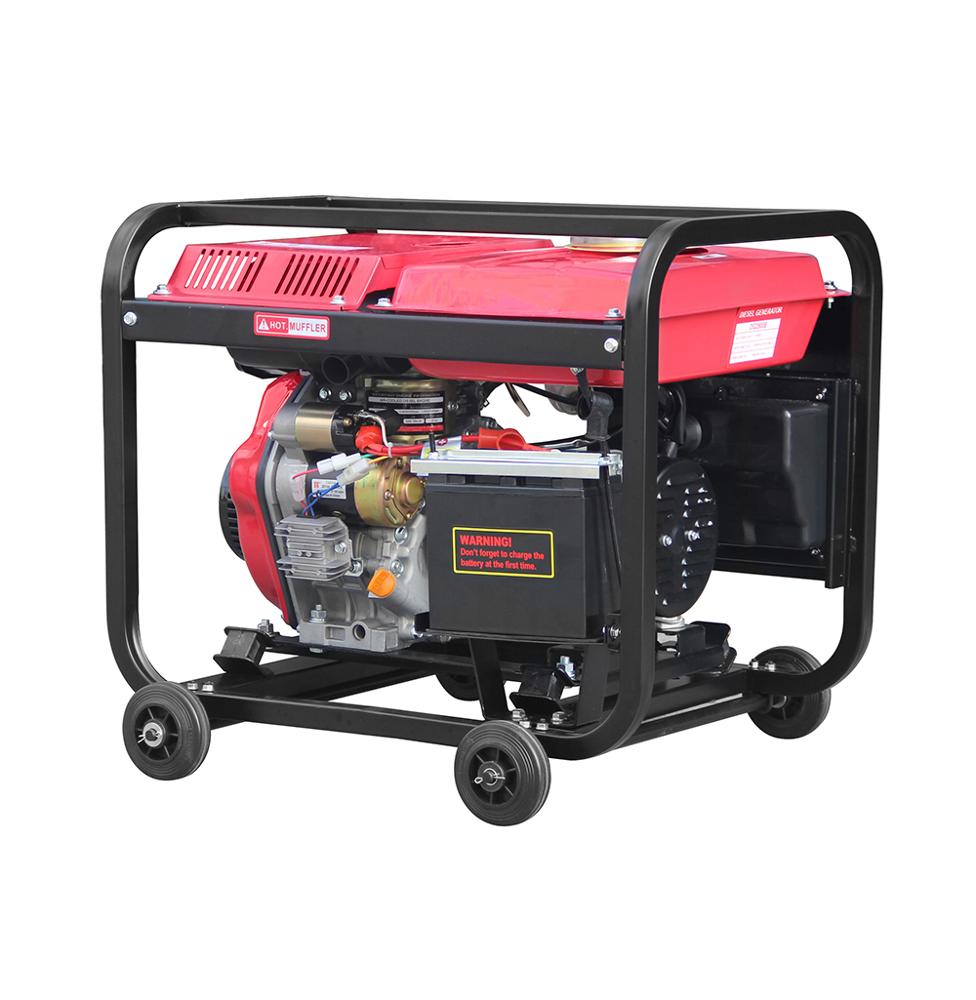

2KVA open frame portable diesel generator prices DG2500E
| GENERATOR | Model | DG2500 | |
| Frequency(HZ) | 50 | 60 | |
| Max. output(kw) | 2 | 2.2 | |
| Rated output(kw) | 1.8 | 2 | |
| Rated. AC voltage(v) | 120, 220, 230, 240 | ||
| Power factor(cosΦ ) | cosΦ =1 | ||
| DC output (v) | 12V/8.3A | ||
| Phase | Single phase | ||
| Alternator type | self-excited, 2-pole, single phase alternator | ||
| Starting system | Electric | ||
| Operating noise level(at 7m) | 80~85 | ||
| Fuel tank capacity(L) | 12.5 | ||
| Continues work(hr) | 17 | 14.5 | |
| ENGINE | Model | HR170F | |
| Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
| Bore× stroke(mm) | 70×55 | ||
| Fuel | 0# or -10# light diesel fuel | ||
| Lubrication oil volume(L) | 0.75 | ||
| Combustion system | Direct lnjection | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
| OPTIONAL FEATURES | DC circuit breaker | optional | |
| Calculagraph | optional | ||
| Big Wheel | optional | ||
| Three phase voltage | optional | ||
| Current meter | optional | ||
| ATS | optional | ||
| Remote control | optional | ||
| Welding | optional | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 670× 490× 600 | |
| Net weight(kg) | 63 | ||
| 20FT | 144 | ||
Product Description
Field of Application
♦ Our products are widely used in various fields, such as construction site,supermarket,hotel,server room,hospital,animal husbandry,fishery,camping
