- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- DG6000E
- Rated Voltage:
- 120,220,230,240,120/240,220/380,230/400,240/415V
- Rated Current:
- 25A
- Speed:
- 3000/3600rpm
- Frequency:
- 50HZ/60HZ
- diesel generator:
- air-cooled diesel generator
- color:
- optional
- frame:
- Open frame type
- Output power:
- 5KW
- Certificate:
- CE/ISO9001
- Engine:
- 186FA
- Alternator:
- 100% Copper
- Warranty:
- 1year
- Control panel:
- Easy operation
- Supply Ability:
- 50 Piece/Pieces per Day
- Packaging Details
- carton with wooden plate
- Port
- FOB shanghai
- Lead Time:
Quantity(Pieces) 1 - 5 6 - 50 >50 Est. Time(days) 7 20 To be negotiated
HOT SALE 2-10KVA air-cooled 5KVA portable silent diesel generator
♦DG6000E model: With 10 HP HR186FA air cooled diesel engine and 100% copper wire KETE alternator ensure a 4.6KW rated output, and 5KW max. output! diesel generator
♦Electric start with 30AH battery; open frame model, can make it with 4 wheels ensure easy moving; Best designed muffler; portable model for home use! diesel generator

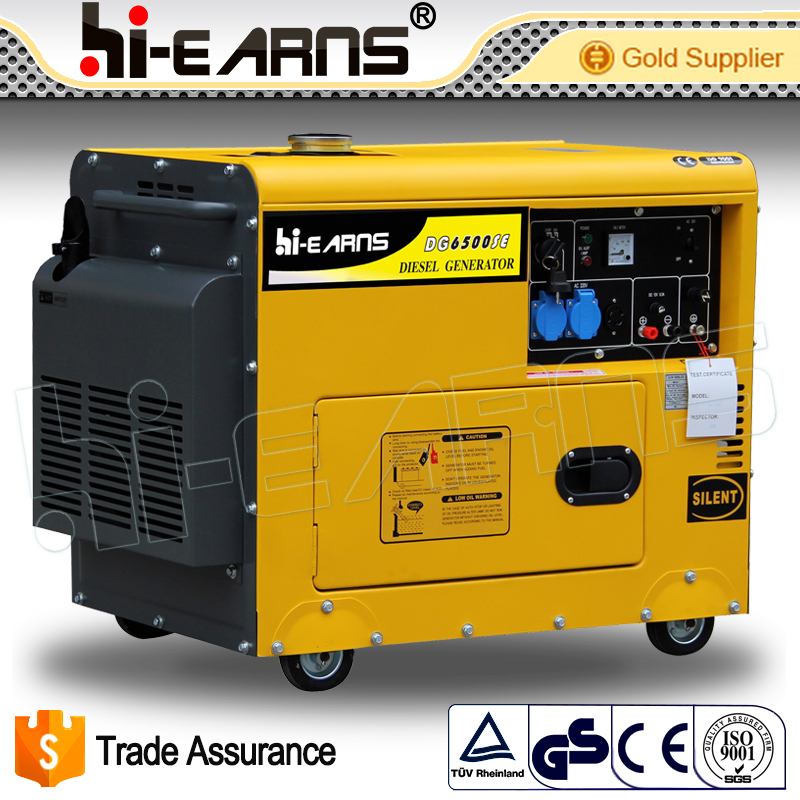

♦Also have silent model DG6500SE, the noise can control well!
♦For air-cooled models we can produce 2 to 10KW, also water cooled models we can do 8 to 500KW, so just inform me some details about what you need, I can give you best quotation asap. diesel generator
GENERATOR | Model | DG6000E | |
Frequency(HZ) | 50 | 60 | |
Max. output(kw) | 5 | 5.5 | |
Rated output(kw) | 4.6 | 5 | |
Rated. AC voltage(v) | 120, 220, 230, 240 | ||
Power factor(cosΦ ) | cosΦ =1 | ||
DC output (v) | 12V/8.3A | ||
Phase | Single phase | ||
Alternator type | self-excited, 2-pole, single phase alternator | ||
Starting system | Electric | ||
Operating noise level(at 7m) | 80~85 | ||
Fuel tank capacity(L) | 12.5 | ||
Continues work(hr) | 6.5 | 6 | |
ENGINE | Model | HR186FA | |
Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
Bore× stroke(mm) | 86×72 | ||
Fuel | 0# or -10# light diesel fuel | ||
Lubrication oil volume(L) | 1.65 | ||
Combustion system | Direct lnjection | ||
STANDARD FEATURES | Voltmeter | yes | |
AC Output Socket | 2 | ||
AC circuit breaker | yes | ||
Oil warning light | yes | ||
Oil alert | yes | ||
OPTIONAL FEATURES | DC circuit breaker | optional | |
Calculagraph | optional | ||
Big Wheel | optional | ||
Three phase voltage | optional | ||
Current meter | optional | ||
ATS | optional | ||
Remote control | optional | ||
Welding | optional | ||
DIMENSIONS | Dimension(L× W× H)(mm) | 755× 520×630 | |
Net weight(kg) | 104 | ||
20FT | 102 |
♦ Our products are widely used in various fields, such as construction site,supermarket,hotel,server room,hospital,animal husbandry,fishery,camping
♦ We attend exhibitions domestic and overseas. Rich activities to improve work enthusiasm.
♦ ISO, CE Certificates. We have been making good progress.
