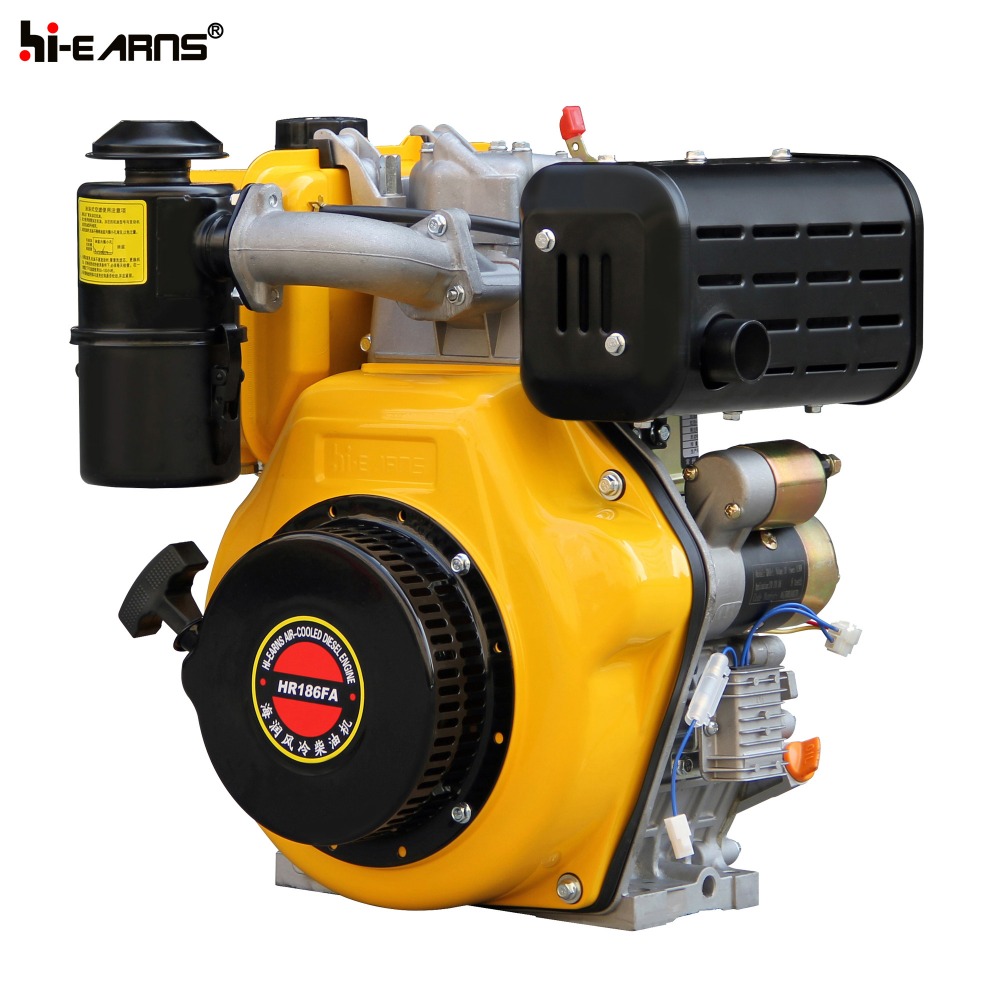

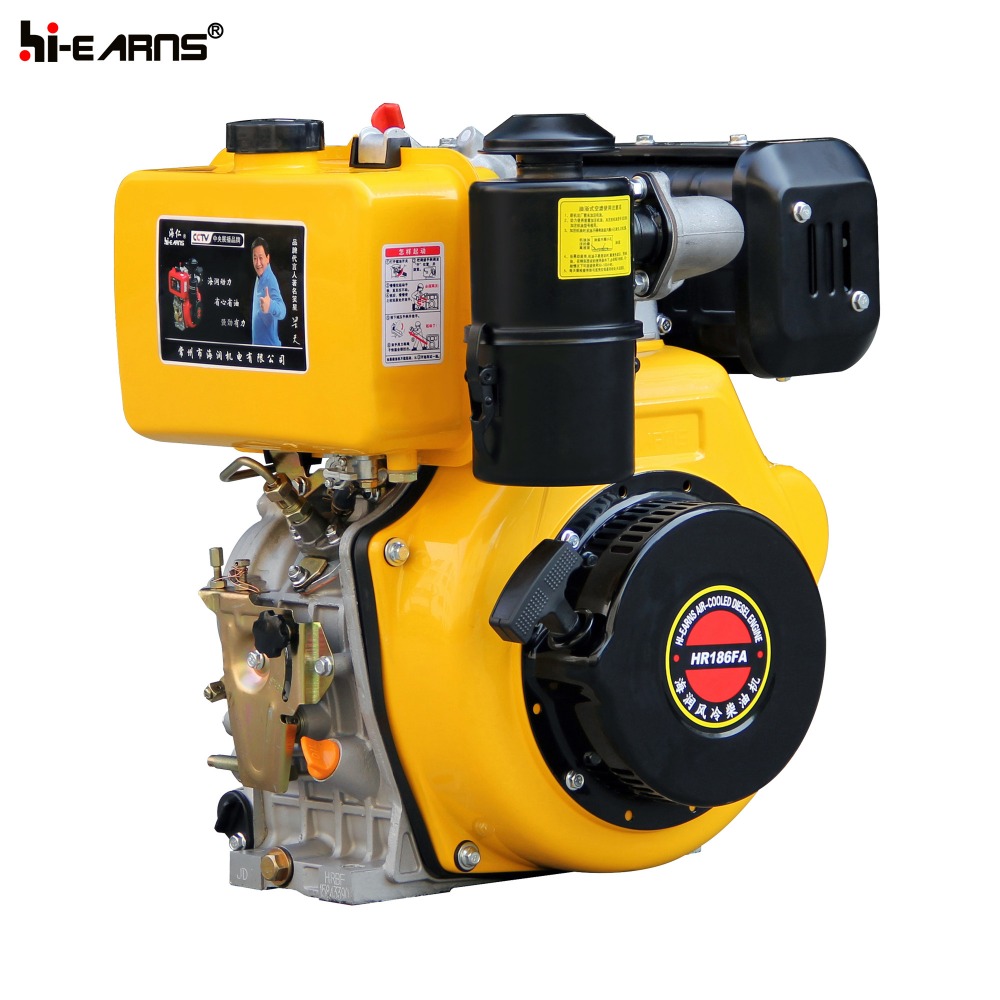

186FA air-cooled 10HP diesel engine
Click on the image to view the original image
Product： views：3186FA air-cooled 10HP diesel engine
Branch： Hi-earns
Size： 42X47X50 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-12-03 18:36
  Negotiated
Product Details
Overview
Quick Details
Applicable Industries:
Hotels, Manufacturing Plant, Farms, Restaurant, Home Use, Retail, Construction works , Energy & Mining
Condition:
New
Stroke:
4 Stroke
Cylinder:
Single Cylinder
Cold Style:
Air-cooled
Start:
Electric start
Place of Origin:
Jiangsu, China
Brand Name:
Hi-earns
Dimension(L*W*H):
417*470*494MM
Weight:
50KG
Certification:
CE, ISO
Warranty:
1 year or 500 running hours
After-sales Service Provided:
Engineers available to service machinery overseas
Engine power:
10HP diesel engine
Engine speed:
3000/3600RPM
Output type:
Keyway shaft output
color:
optional
Displacement:
418cc
BORE*STROKE:
86x72mm

Packaging & Delivery

Selling Units:
Single item
Single package size:
42X47X50 cm
Single gross weight:
50.0 kg
Package Type:
Carton packing
Lead Time:
Quantity(Set)1 - 56 - 200>200
Est. Time(days)715To be negotiated



Related Products

186FA air-cooled 10HP diesel engine







HR186FA model: 10HP rated output, Air-cooled 4-stroke small diesel engine.



Keyway shaft, spline shaft, camshaft and so on output type are optional.



Recoil or Electric start also optional ensure easy starting.ensuretor



ModelHR186FA
Bore×stroke(mm)86×72
Displacement(cc)418
Engine speed(rpm)30003600
Max.output(kw)6.57.1
Continuous output(kw )      5.96.5
Power outputCrankshaft or camshaft(Camshaft PTO rpm is 1/2)
Starting systemRecoil or electric
Fuel tank capacity(L)                       5.5
Rube oil capacity(L)1.65
Dimension(mm)417×470×494
Net weight(kg)48/50
Product Description

Field of Application

♦ Our products are widely used in various fields, such as generators,water pumps, rotavator,concrete cutter,plate compactor,high pressure washer
