Home > Products > 13hp 1-cylinder air cooled diesel engine prices (188FA)

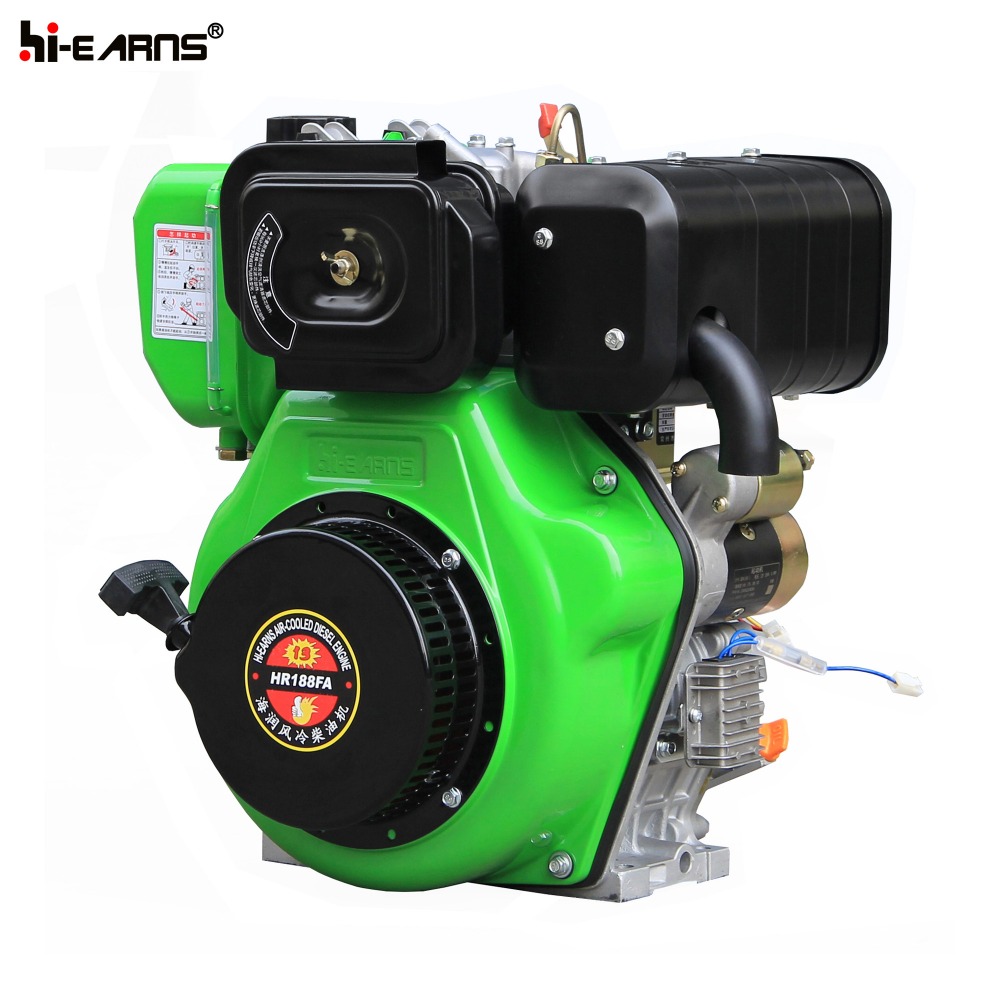

13hp 1-cylinder air cooled diesel engine prices (188FA)
Click on the image to view the original image
Product： views：313hp 1-cylinder air cooled diesel engine prices (188FA)
Branch： Hi-earns
Type： Vertical Four-stroke
Size： 49X42X51 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-12-03 18:36
  Negotiated
Product Details
Overview
Quick Details
Applicable Industries:
Hotels, Manufacturing Plant, Farms, Restaurant, Home Use, Retail, Construction works , Energy & Mining
Condition:
New
Stroke:
4 Stroke
Cylinder:
Single Cylinder
Cold Style:
Air-cooled
Start:
recoil start
Place of Origin:
Jiangsu, China
Brand Name:
Hi-earns
Dimension(L*W*H):
417x470x494
Weight:
50 KG
Certification:
CE, GS, ROHS, ISO
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
color:
optional
Engine power:
12HP
Engine speed:
3000/3600 RPM
Start system:
Recoil or Electric start
Output type:
Keyway, spline, camshaft optional
Displacement:
456cc
Type:
Vertical Four-stroke

Packaging & Delivery

Selling Units:
Single item
Single package size:
49X42X51 cm
Single gross weight:
52.0 kg
Package Type:
carton
Lead Time:
Quantity(Set)1 - 12 - 56 - 100>100
Est. Time(days)5515To be negotiated
Video Description



Related Products

13hp 1-cylinder air cooled diesel engine prices (188FA)







HR188FA model: 13HP rated output, Air-cooled 4-stroke small diesel engine.







Keyway shaft, spline shaft, camshaft and so on output type are optional.







Recoil or Electric start also optional ensure easy starting.



ModelHR188FA
Bore×stroke(mm)88×75
Displacement(cc)438
Engine speed(rpm)30003600
Max.output(kw)7.58.0
Continuous output(kw )      7.07.5
Power outputCrankshaft or camshaft(Camshaft PTO rpm is 1/2)
Starting systemRecoil or electric
Fuel tank capacity(L)5.5
Rube oil capacity(L)1.65
Dimension(mm)417×470×494
Net weight(kg)45/51
Product Description

Field of Application

♦ Our products are widely used in various fields, such as generators,water pumps, rotavator,concrete cutter,plate compactor,high pressure washer
