Click on the image to view the original image
Overview
Quick Details
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- DG3000E
- Rated Voltage:
- 220V
- Rated Current:
- 14A
- Speed:
- 3000rpm/3600rpm
- Frequency:
- 50HZ/60HZ
- Industrial Diesel generator:
- diesel generator set
- Color:
- Green/White/black/Red/Blue
- Rated voltage:
- 120,220,230,240,120/240,220/380,230/400,240/415
- Noise level at 7 meters:
- 80-85db
- Diesel generator type:
- Air-cooled four stroke diesel generator
- Engine Model:
- HR178F
- Certificate:
- ISO9001:2008CE
- Alternator:
- copper wire
- Warranty:
- 1 Year
- Options:
- Customer's Logo
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 67X47X56 cm
- Single gross weight:
- 70.0 kg
- Package Type:
- Carton with plywood plate
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 5 6 - 50 >50 Est. Time(days) 15 20 To be negotiated
Related Products

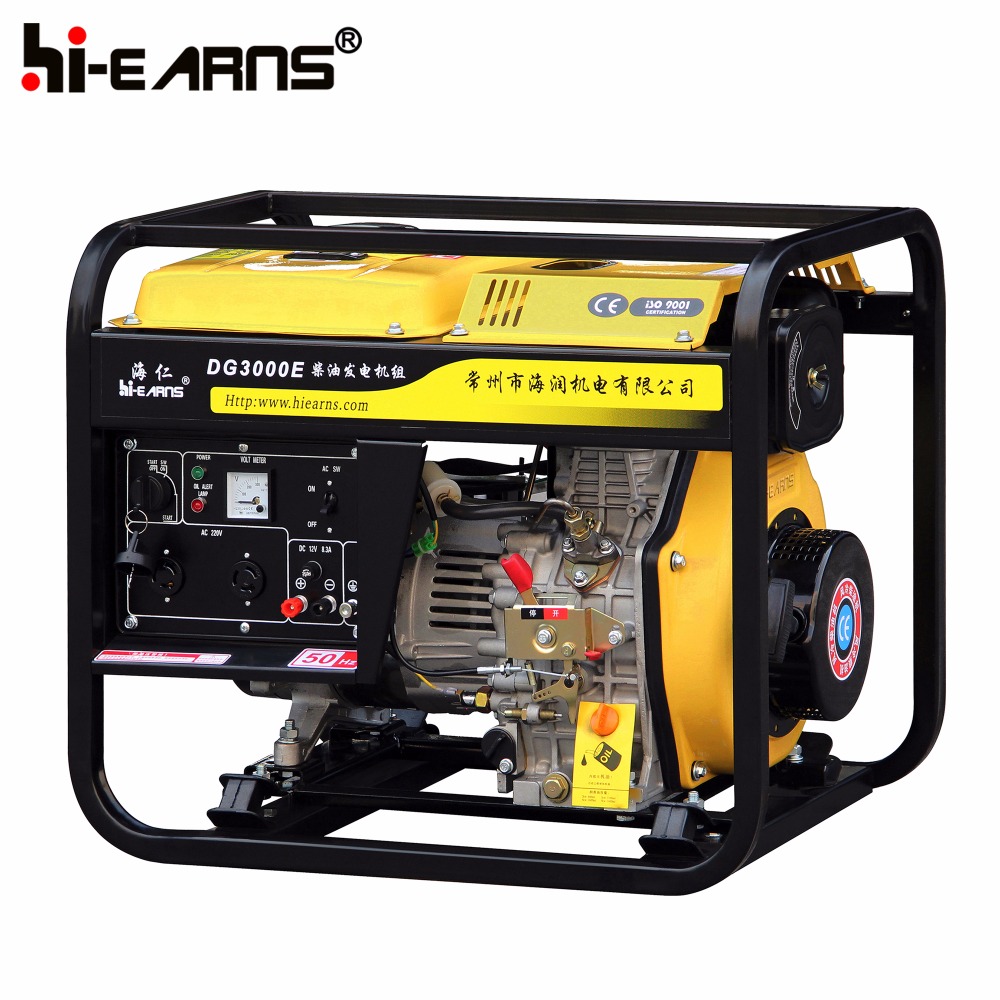

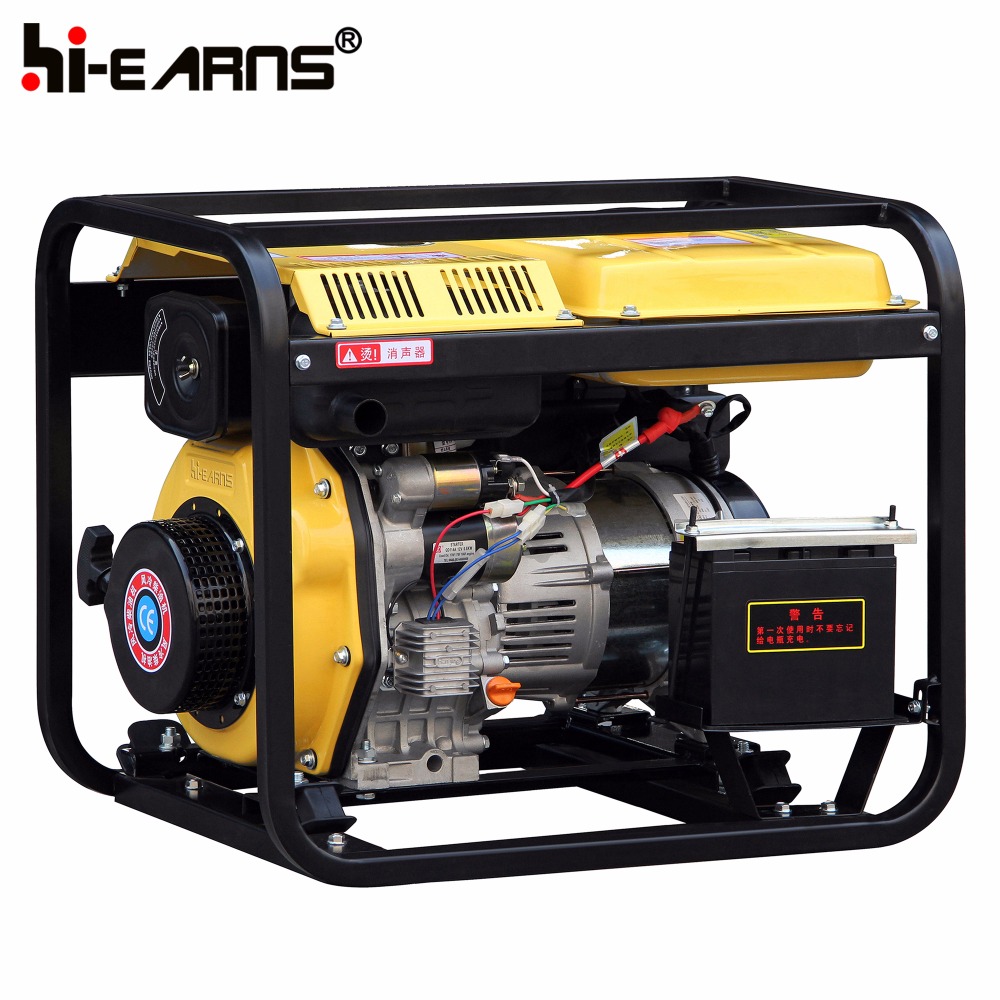

| GENERATOR | Model | DG3000E | |
| Frequency(HZ) | 50 | 60 | |
| Max. output(kw) | 3.0 | 3.3 | |
| Rated output(kw) | 2.8 | 3.0 | |
| Rated. AC voltage(v) | 120, 220, 230, 120/240,220/380,230/400,240/415 | ||
| Power factor(cosΦ ) | cosΦ =1 | ||
| DC output (v) | 12V/8.3A | ||
| Phase | Single phase | ||
| Alternator type | self-excited, 2-pole, single phase alternator | ||
| Starting system | Recoil or Electric | ||
| Operating noise level(at 7m) | 80~85 | ||
| Fuel tank capacity(L) | 12.5 | ||
| Continues work(hr) | 9.7 | 9 | |
| ENGINE | Model | HR178F | |
| Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
| Bore× stroke(mm) | 78× 62 | ||
| Fuel | 0# or -10# light diesel fuel | ||
| Lubrication oil volume(L) | 1.1 | ||
| Combustion system | Direct lnjection | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
OPTIONAL FEATURES | DC circuit breaker | optional | |
| Calculagraph | optional | ||
| Big Wheel | optional | ||
| Three phase voltage | optional | ||
| Current meter | optional | ||
| ATS | optional | ||
| Remote control | optional | ||
| Welding | no | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 670×470×560 | |
| Net weight(kg) | 64 | ||
| 20FT | 130 | ||
Product Description
Field of Application
♦ Our products are widely used in various fields, such as construction site,supermarket,hotel,server room,hospital,animal husbandry,fishery,camping
