Overview
Quick Details
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns 5KW generator
- Model Number:
- DG6500SE-N
- Rated Voltage:
- 220
- Rated Current:
- 21A
- Speed:
- 3000/3600rpm
- Frequency:
- 50HZ/60HZ
- diesel generator:
- air-cooled diesel generator
- color:
- optional
- frame:
- different pipe dimension for your choice
- Engine:
- 186FA
- Fuel consumption:
- 280g/kw.h
- Alternator:
- 100% copper wires
- Control panel:
- common panel
- Options:
- Customer's Logo
- Warranty:
- 1 Year
- Certificate:
- CE/ISO9001
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 82X56X76 cm
- Single gross weight:
- 173.0 kg
- Package Type:
- Carton with plywood plate
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 5 6 - 30 >30 Est. Time(days) 15 25 To be negotiated

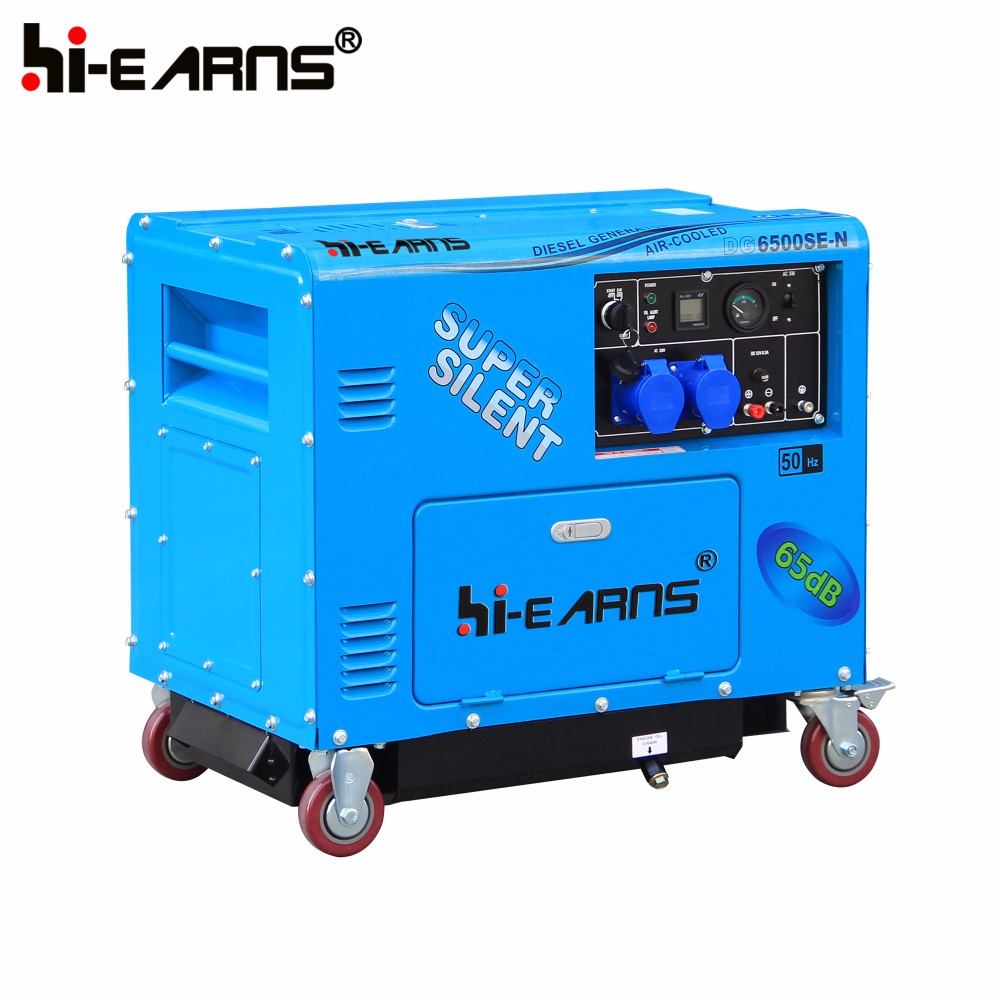

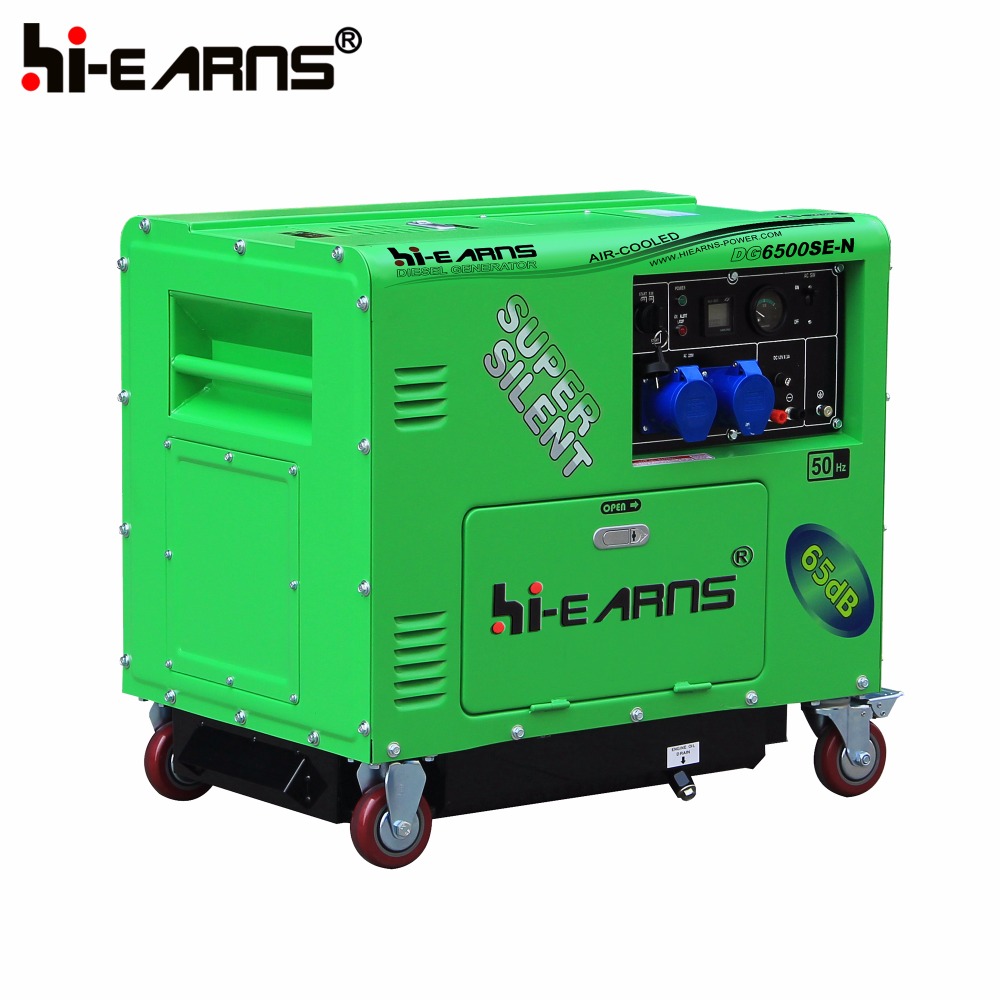

Super silent diesel generator set(DG6500SE-N)
| GENERATOR | Model | DG6500SE-N | |
| Frequency(HZ) | 50 | 60 | |
| Max. output(kw) | 4.6 | 5.0 | |
| Rated output(kw) | 4.2 | 4.6 | |
| Rated. AC voltage(v) | 120, 220, 230, 240 | ||
| Power factor(cosΦ ) | cosΦ =1 | ||
| DC output (v) | 12V/8.3A | ||
| Phase | Single phase | ||
| Alternator type | self-excited, 2-pole, single phase alternator | ||
| Starting system | Electric | ||
| Operating noise level(at 7m) | 65~68 | ||
| Fuel tank capacity(L) | 12.5 | ||
| Continues work(hr) | 8.5 | 7.7 | |
| ENGINE | Model | HR186FA | |
| Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
| Bore× stroke(mm) | 86×72 | ||
| Fuel | 0# or -10# light diesel fuel | ||
| Lubrication oil volume(L) | 1.65 | ||
| Combustion system | Direct lnjection | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
| OPTIONAL FEATURES | DC circuit breaker | optional | |
| Calculagraph | optional | ||
| Big Wheel | optional | ||
| Three phase voltage | optional | ||
| Current meter | optional | ||
| ATS | optional | ||
| Remote control | optional | ||
| Welding | optional | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 820× 560×760 | |
| Net weight(kg) | 163 | ||
| 20FT | 80 | ||
