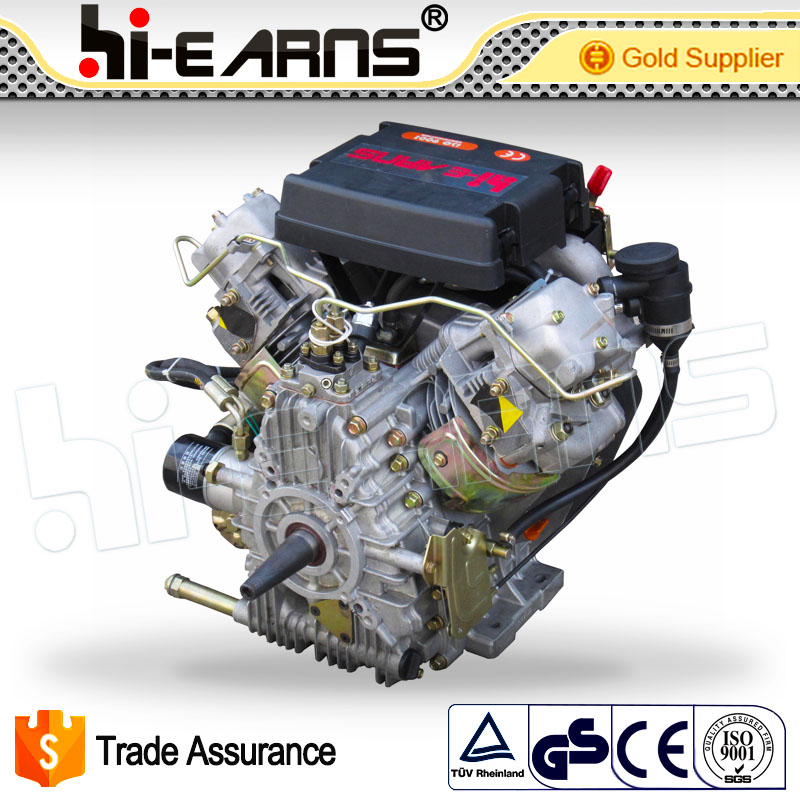

2V86F 16HP air cooled 2 cylinder diesel engine price

Click on the image to view the original image

Product：	views：42V86F 16HP air cooled 2 cylinder diesel engine price
Branch：	Hi-earns
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-12-03 18:36

Product Details

Overview

Quick Details

Condition:: New

Usage:: generator,constryction machinery,washer and so on

Fuel:: Diesel

Stroke:: 4 Stroke

Cylinder:: two cylinders

Cold Style:: Air-cooled

Start:: Electric start

Place of Origin:: Jiangsu, China

Brand Name:: Hi-earns

Model Number:: 2V86F

Dimension(L*W*H):: 550*400*460

Weight:: 60

Certification:: ISO, CE, GS

After-sales Service Provided:: Engineers available to service machinery overseas

Engine model:: 2 cylinder diesel engine 2V86F

Engine power:: 16HP/12KW

Engine speed:: 3000/3600rpm

Start system:: Electric start

Warranty:: 1 Year

Supply Ability

Supply Ability:: 100 Piece/Pieces per Day

Packaging & Delivery

Packaging Details: carton packing

Port: shanghai

Lead Time:: Shipped in 20 days after payment

16HP air cooled 2 cylinder diesel engine price 2V86F

2V86F model: 16HP rated output, Air-cooled 4-stroke 2 cylinder diesel engine.

Keyway shaft, spline shaft, camshaft and so on output type are optional.

Electric start ensure easy starting.

Model	2V86F
Type	V-twin,4-stroke,air cooled
Rated power(kw)	11/12
Rated speed(rpm)	3000/3600
Max.torque(N.m/r/min)	41/2600
Fuel consumption(g/kw.h)	270/279
Displacement(ml)	836
Lube oil capacity(L)	2.3
Lubricating way	Forced&Splashing
Noise at 7m(db)	86
Starting way	Electric
Rotation direction at output end	Counter-clockwise
Dimension(mm)	550×400×460
Net weight(kg)	60

IQC

♦ Strict and Accurate incoming raw material quality control systemd(IQC), ensure the engine running in the best condition.

Automatic workshop

♦ Modern Production Workshop, stict producing process, ensure a fast and high-quality products output;

♦ Flow card ro record each details carefully;

Packaging & Shipping

♦ From the engine to generator, we all use 7 layer corrugated carton packing, plywood pallet, Ensure a portable and safety transport!
