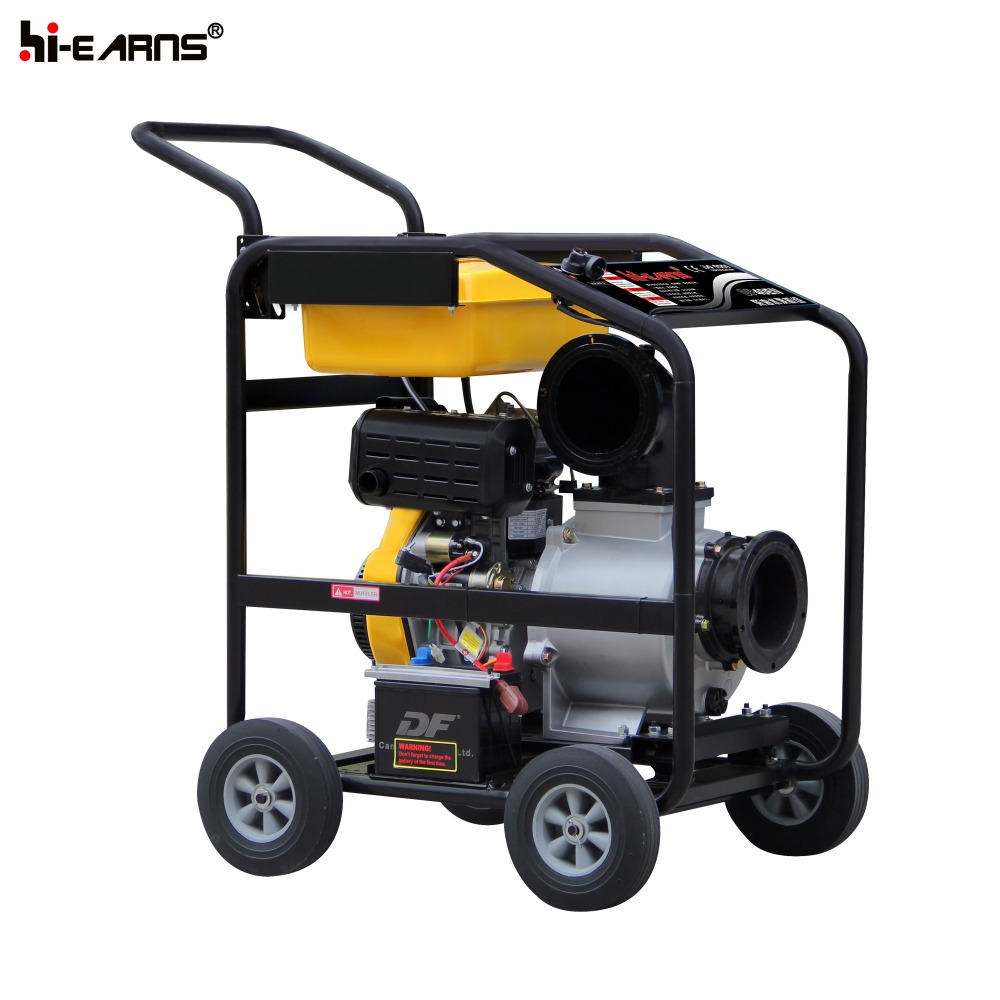

6 inch diesel water pump set for sell DP60
Simon Yang (Just press Chat Now!)
♦ Mobile/WhatsApp: 008613775105526
♦ E-mail: server-wm1(at)hiearns.com
♦ SKYPE: ysdsimon
♦ TradeManager: cn200048131
♦ WeChat: SimonMrYang
♦ QQ: 568238531 water pump
♦ DP60E model: With 14 HP HR192FB air-cooled diesel engine, Ensure a big flow and self-priming type; water pump
♦ Also have 2inch, 3 inch and 4 inch models, just according what you need!
♦ 12.5l big fuel tank snsure a long operation time;wat
♦ Portable model with wheels and handle ensure easily moving;
| WATER PUMP | Model | DP60E | |
| Suction,discharge port diameter[mm(in)] | 150(6"") | ||
| Cont.head(m) | 15 | ||
| Self-priming time(s/4m) | 200 | ||
| Max suction head(m) | 6 | ||
| Cont.capacity(m³/hr) | 180 | ||
| ENGINE | Engine model | HR192FB | |
| Speed(rpm) | 3200 | ||
| Type | Single-cylinder,vertical,4-stroke air-cooled diesel engine | ||
Displacement(cc) | 498 | ||
Bore*stroke(mm) | 92*75 | ||
Starting system | Electric | ||
| Fuel tank capacity(L) | 12.5 | ||
| STANDARD FEATURES | Oil alert | yes | |
| Connector of infall,Connecto of outfall | yes | ||
| Filter | yes | ||
| Seal ring | yes | ||
| Hoop | yes | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 790×560×870 | |
| Net weight(kg) | 120 | ||
♦ We are professional manufacture of air-cooled diesel engine(3-20HP), diesel generator sets(2-1000KW), diesel water pump(1.5-6Inch), small construction machines and so on.
♦ Morden and beautiful factory of Changzhou Hi-earns, warmly welcome YOU from all over the world have a visit to us! (Only 2 hours drive from Shanghai!)
♦ We attended every Canton Fair and some oversea Exhibition!
♦ ISO, CE, GS, ROHS certification for all over the world customer.
♦ With all the advantages described above, so we DARE to supply 1 year warranty!
♦ Low price spare parts provided beyond warranty period.
