3KVA diesel generator sets price small diesel generator

Click on the image to view the original image

Product：	views：33KVA diesel generator sets price small diesel generator
Branch：	Hi-earns
Type：	Silent and electric
Size：	85X53.5X70 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-12-03 18:36

Product Details

Overview

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: Hi-earns

Model Number:: DG3500SE3

Rated Power:: 2.8KW

Output Type:: AC Three Phase

Rated Voltage:: 220/380,230/400V

Rated Current:: 5A

Speed:: 3000rmp/3600rmp

Frequency:: 50/60HZ

Color:: Yellow/Green/White/Green/Red/Orange/Blue

Type:: Silent and electric

Panel:: Common/digital/ATS

Structure:: Skylight/rings

Wheel:: Solid rubber wheel /universal wheel

Design:: New

Noise:: lower

Power factor:: 1

Phase:: three

Engine type:: HR178F

Packaging & Delivery

Selling Units:: Single item

Single package size:: 85X53.5X70 cm

Single gross weight:: 136.0 kg

Package Type:: carton with plywood

Picture Example:

Lead Time:

Quantity(Piece)	1 - 1	2 - 10	>10
Est. Time(days)	25	30	To be negotiated

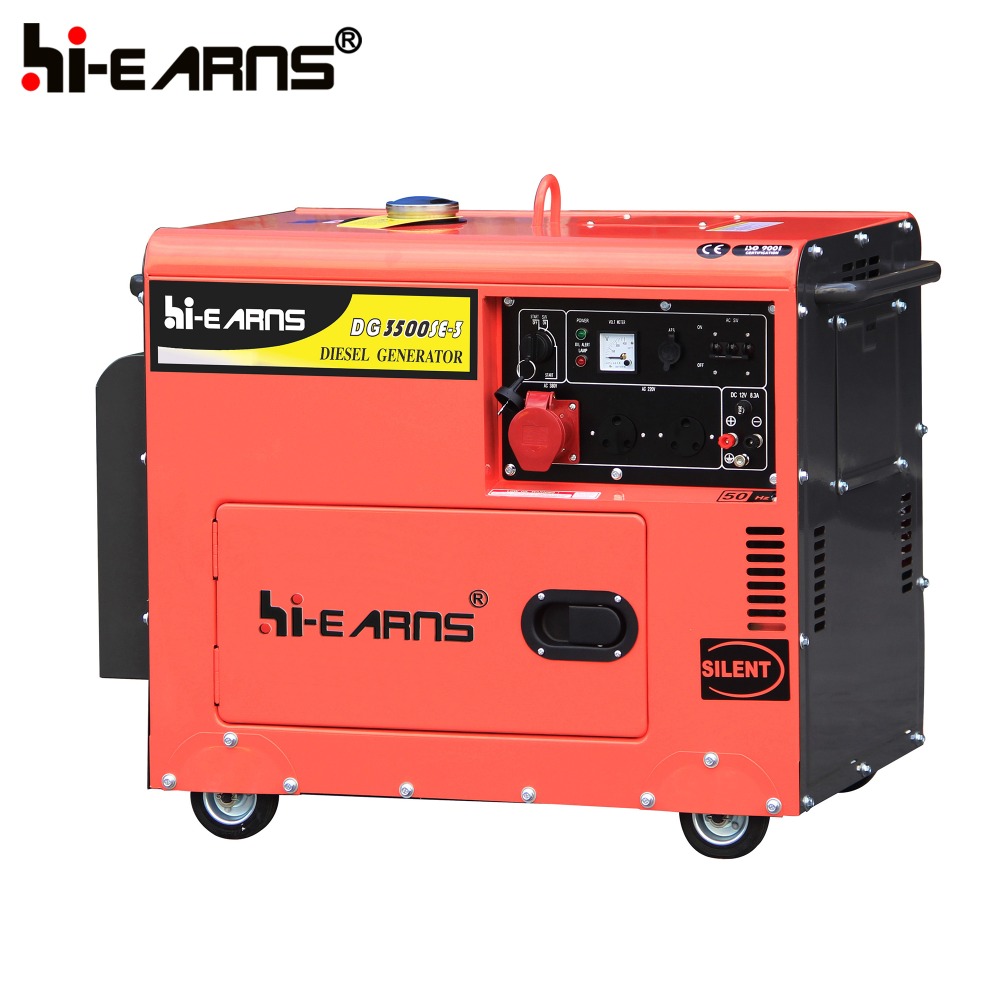

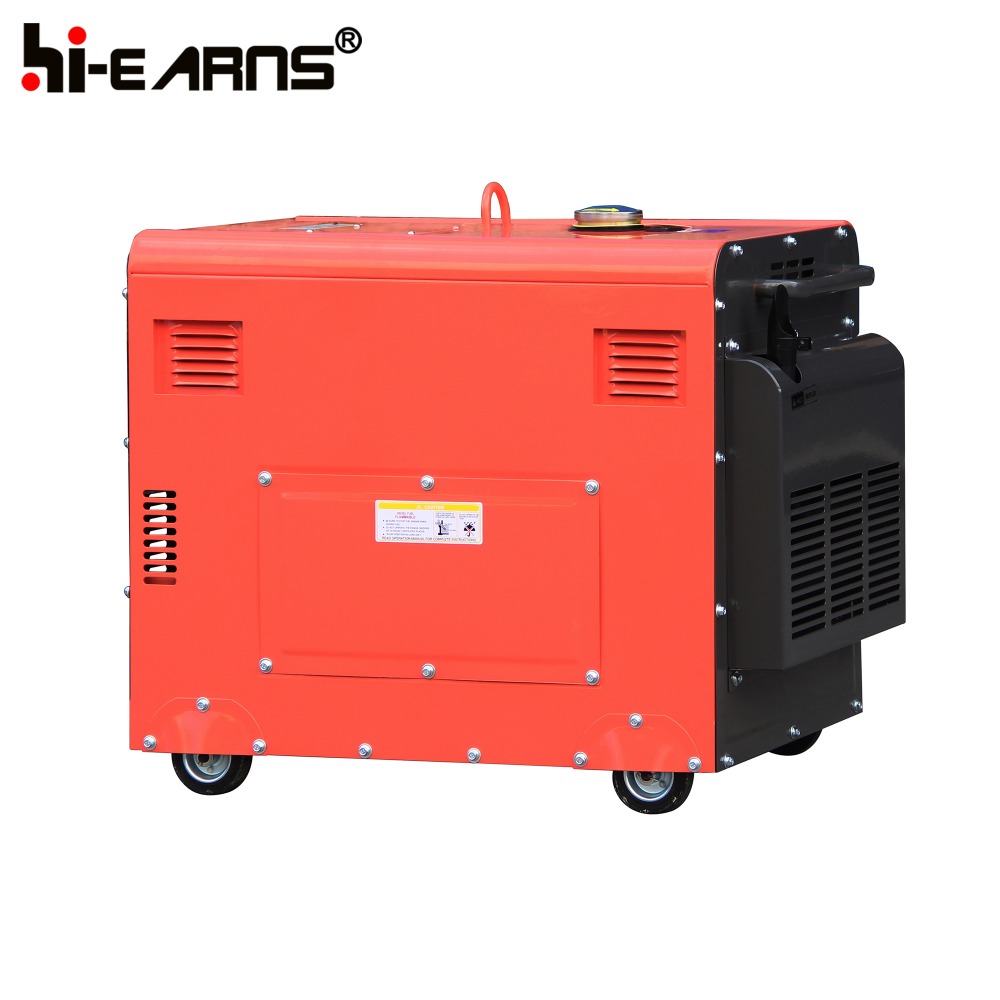

DG3500SE3 three phase silent diesel generator

GENERATOR	Model	DG3500SE3
	Frequency(HZ)	50	60
	Max. output(kw)	3	3.3
	Rated output(kw)	2.8	3
	Rated. AC voltage(v)	220/380, 230/400, 240/415
	Power factor(cosΦ )	cosΦ =1
	DC output (v)	12V/8.3A
	Phase	Three phase
	Alternator type	self-excited, 2-pole, three phase alternator
	Starting system	Electric
	Operating noise level(at 7m)	68~72
	Fuel tank capacity(L)	16
	Continues work(hr)	13	11.8
ENGINE	Model	HR178F
	Engine type	Single-cylinder, vertical, 4-stroke air-cooled diesel engine
	Bore× stroke(mm)	78× 62
	Fuel	0# or -10# light diesel fuel
	Lubrication oil volume(L)	1.65
	Combustion system	Direct lnjection
STANDARD FEATURES	Voltmeter	yes
	AC Output Socket	2
	AC circuit breaker	yes
	Oil warning light	yes
	Oil alert	yes
OPTIONAL FEATURES	DC circuit breaker	optional
	Calculagraph	optional
	Big Wheel	optional
	Three phase voltage	optional
	Current meter	optional
	ATS	optional
	Remote control	optional
	Welding	optional
DIMENSIONS	Dimension(L× W× H)(mm)	95× 560× 740
	Net weight(kg)	136
	20FT	72

Company Instruction

Our Services

Warranty

Guarantee for one year or 800 hours whichever reach first from ex-factory date. If the quality problem arise during the warranty period, and verified the problem is caused by our genset body instead of external or natural reasons(refer to all kinds of natural disaster, shipping, loading, unloading, wrong operation etc), we will supply the relevant spare parts free of charge for maintenance; After expiration, Hi-earns provides cost spare parts maintenance of products.

Service

1.Our quality department will provide the best solution that make you satisfied efficiently and accurately.

2.If the broken spare parts are in the period under warranty, we will offer this spare parts for free under the condition of this spare parts are not intentionally damaged.
